3 Operating Sequences 01.93
3.2.8 ”Incremental´” mode (”INC FEED 1 ... INC FEED 10000”)
3.2.8 ”Incremental” mode (”INC FEED 1 ... INC FEED 10000”)

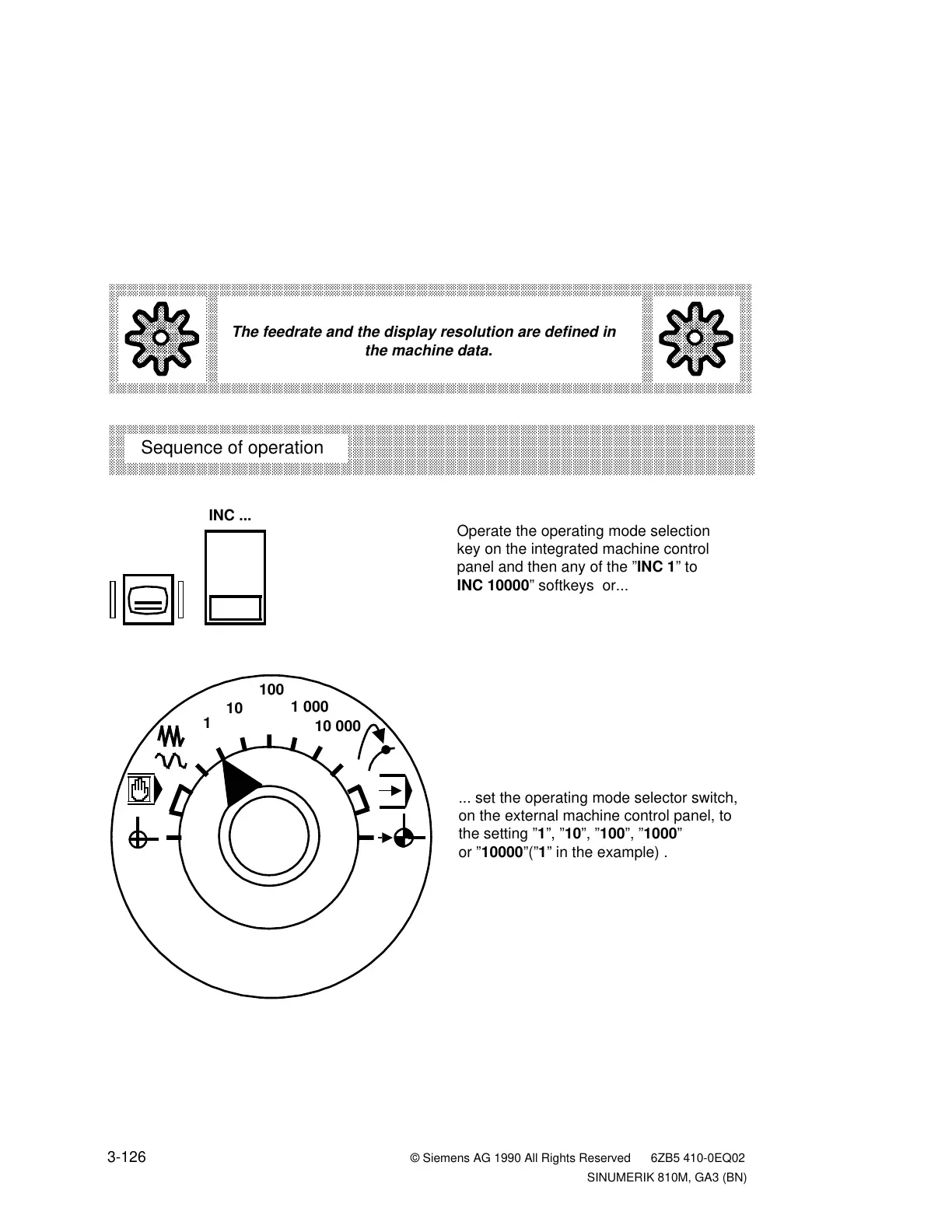

In this mode, operation is NC-controlled in ”JOG/manual” mode, not in a program; with each
operation of the direction key, you traverse the axis concerned in the selected direction by the
set increment.
The increment values are settable as follows:
1, 10, 100, 1000, 10000 increments. The weighting of the increments depends on the display
resolution. However, the smallest possible traversing distance is defined by the input
resolution.
