09.91 3 Operating Sequences

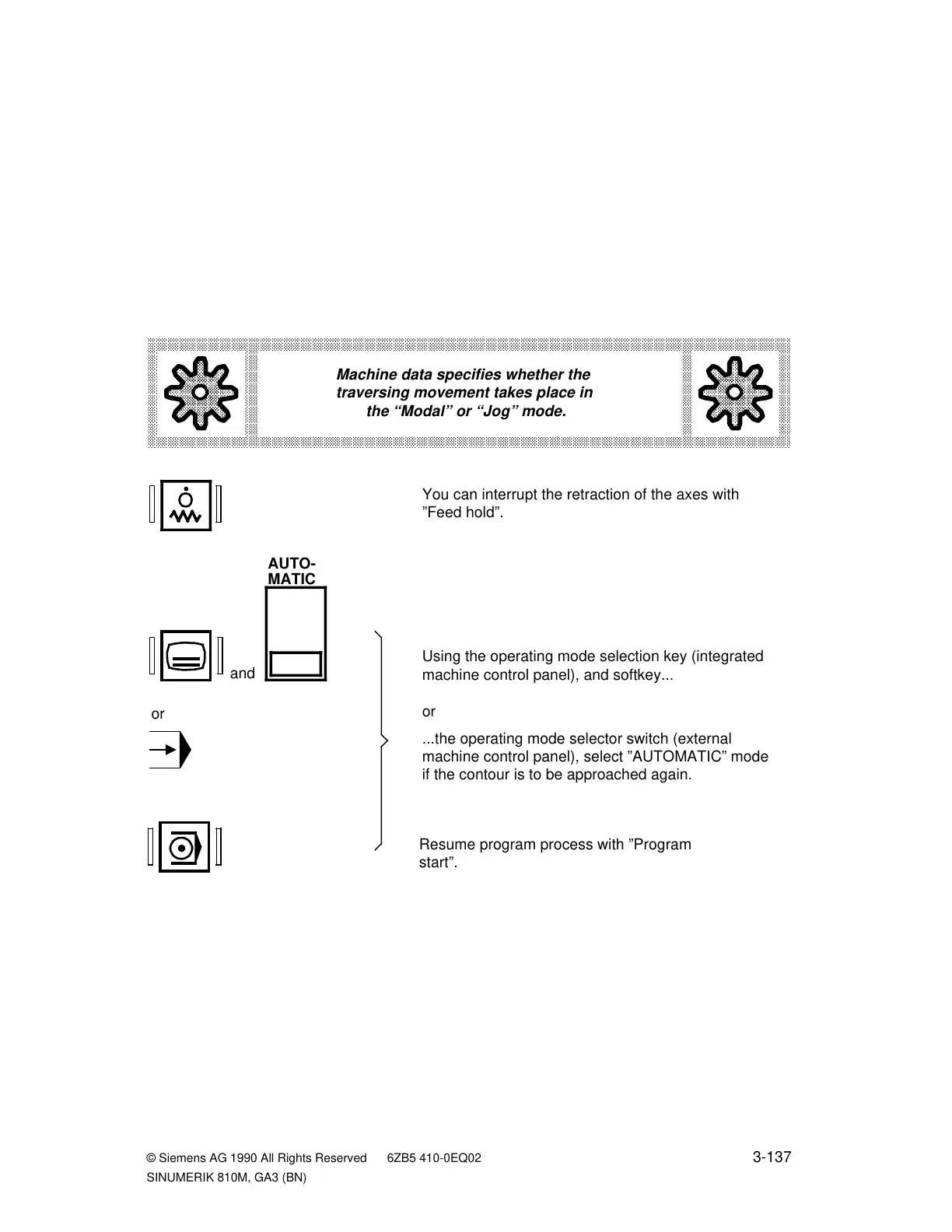

3.2.12 ”Repositioning” mode (”REPOS”)
Note:
The direction keys can perform in two ways:
• ”Modal”
•”Jog operation”
When ”Modal” the axis is always traversed by one increment, in accordance with the setting
(1, 10, 100, 1000, 10000
µ
m), when the key is pressed (regardless of whether the key is
pressed for a short or long time).
In ”Jog operation” the axis is traversed for as long as the key remains pressed. When the
key is no longer being pressed, the traverse movement is stopped - even when the set
increment has not been reached.
