Accessories
10.3 Mechanical remote RESET
SIRIUS 3RU thermal overload relays / SIRIUS 3RB electronic overload relays
Manual, 09/2016, A5E03656507420A/RS-AB/003
131

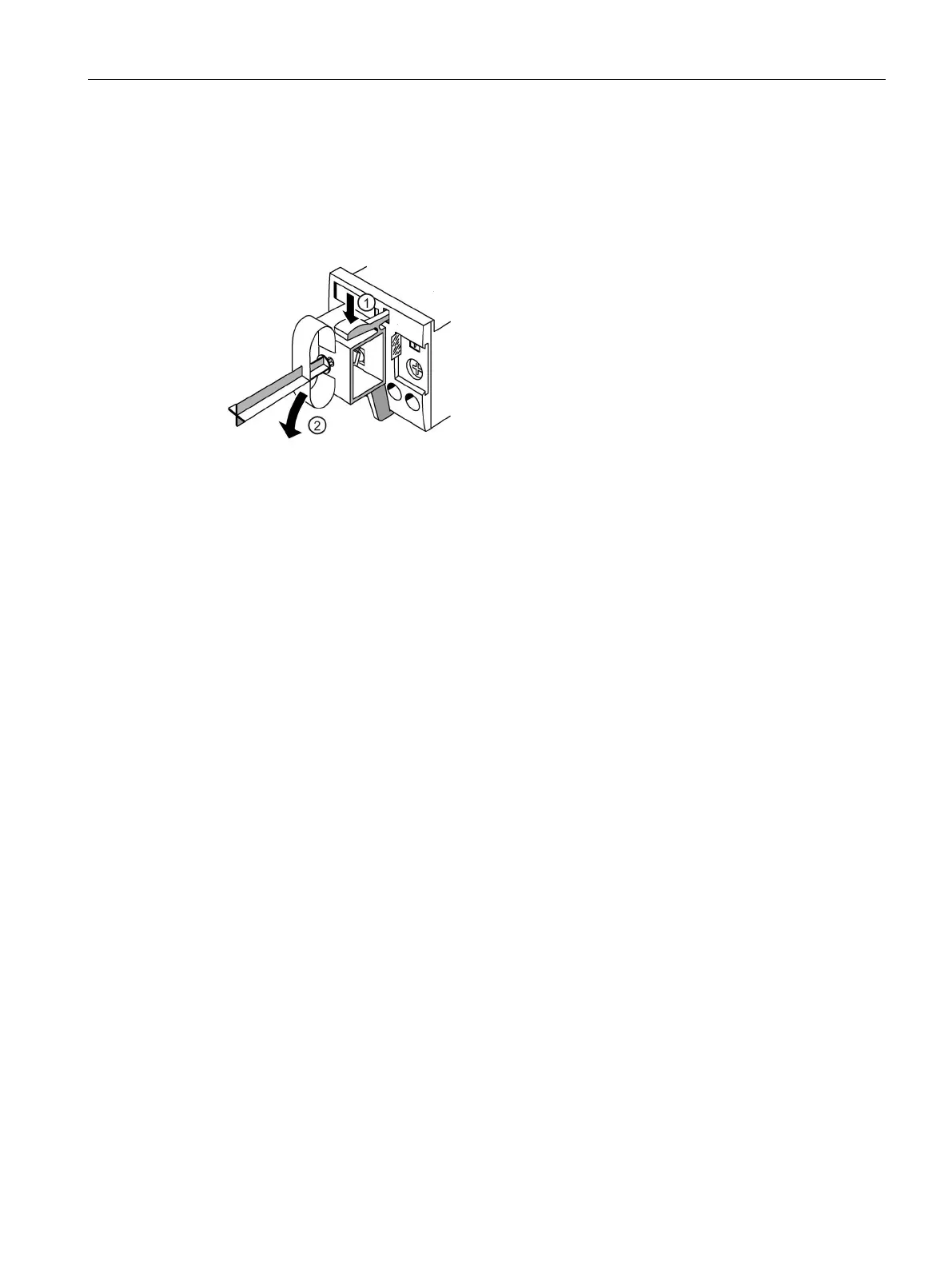

The figure below shows how to disassemble the holder based on the example of the
3RU21 thermal overload relay:
Disassembling the release slide
Press the locking latch down.
Tilt the module toward you and take it off the overload relay.
Description
Cable release (compatible for use with all sizes)
There is one cable release with holder for built-in overload relays which are hard to reach for
thermal overload relays and another for solid-state relays; both are compatible for use with
all sizes.
The cable is available in the following lengths:
● 400 mm and
● 600 mm
