Accessories
10.3 Mechanical remote RESET
SIRIUS 3RU thermal overload relays / SIRIUS 3RB electronic overload relays
132 Manual, 09/2016, A5E03656507420A/RS-AB/003

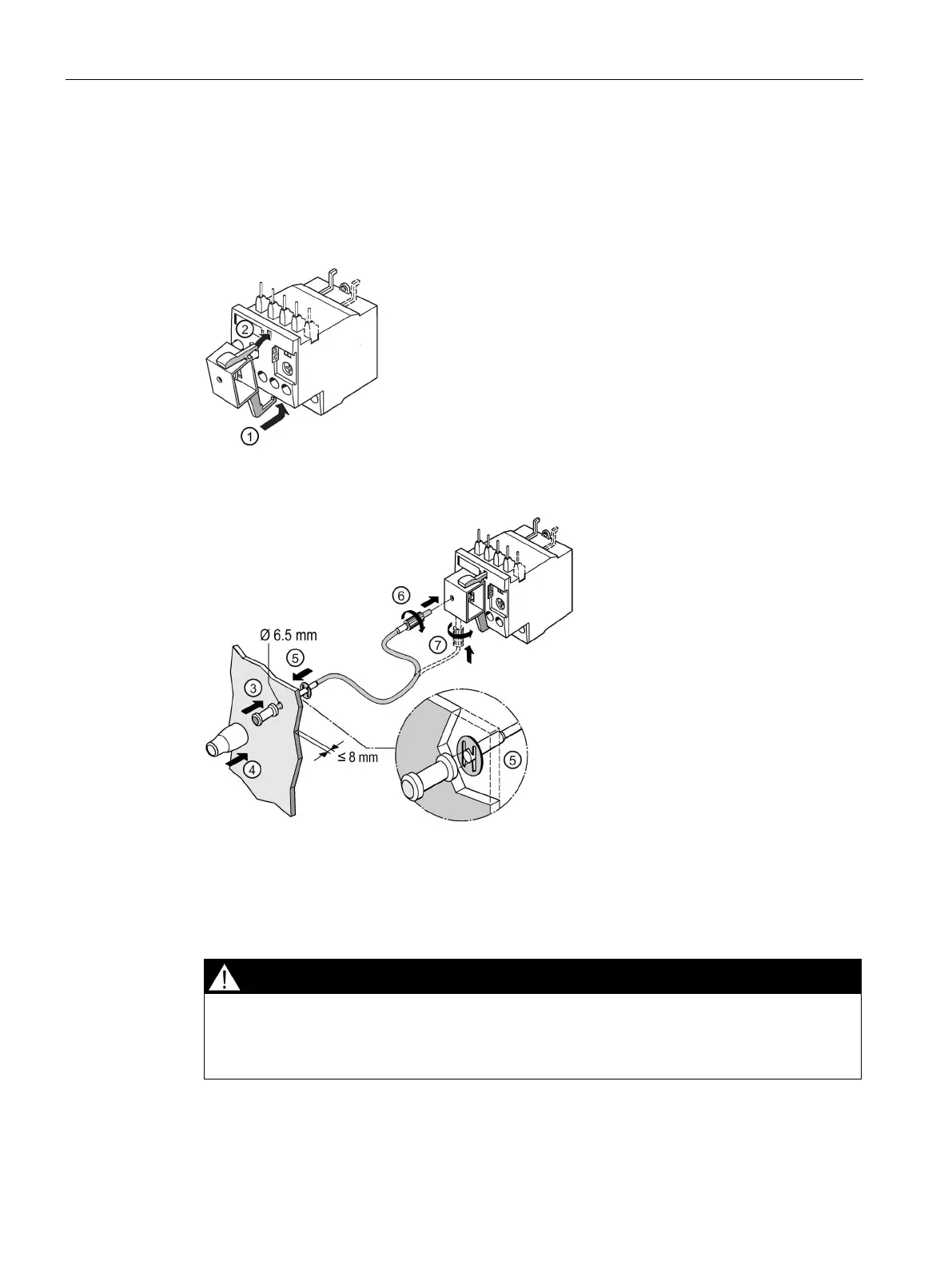

The figure below shows how the cable release with holder is mounted based on the example
of a size S00 3RU21 thermal overload relay:
Mounting the cable release
Attach the hook on the release slide to the designated opening on the overload relay.
Fold the module up so that the locking latch snaps into the overload relay.
Fit the actuating element in the front cover.
Attach the sleeve to the actuating element.
Secure the actuating element with the spring lock washer.
Insert the cable release into the appropriate opening.
Tighten the cable release.
Hazardous voltage. Risk of death or serious injury.
Turn off and lock out all power supplying this device before working on this device.
The cable pull must not come into contact with live parts.
