Dimension drawings (dimensions in mm)
C.5 Drilling diagram for 3RT contactors
SIRIUS 3RU thermal overload relays / SIRIUS 3RB electronic overload relays
194 Manual, 09/2016, A5E03656507420A/RS-AB/003
C.5
Drilling diagram for 3RT contactors

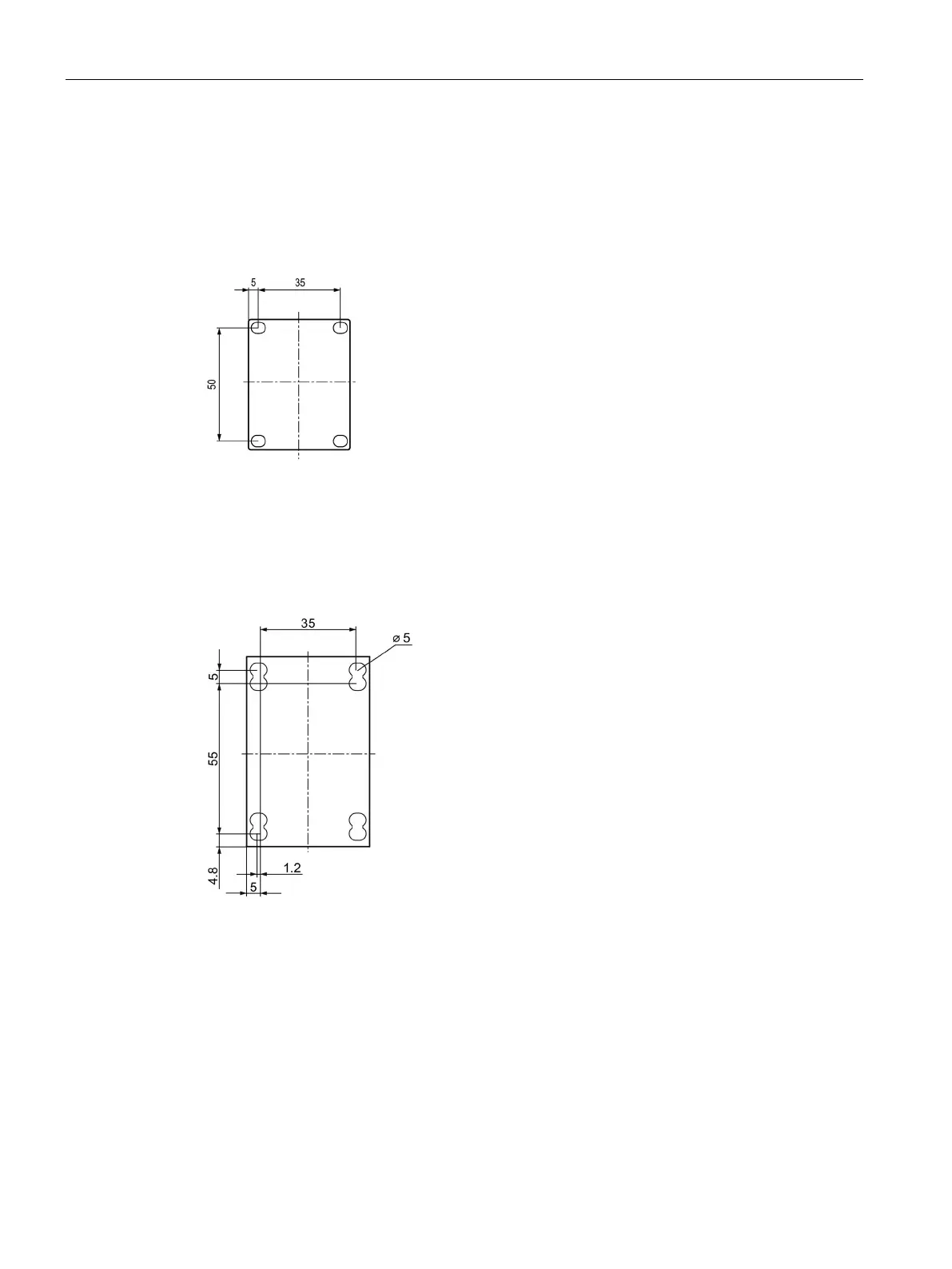

Drilling plans for 3RT2.1.-1/3RT2.1-4. contactors
Figure C-42 Drilling plan for contactors with screw-type connections and ring cable lug connections
(size S00)
Drilling plan for 3RT2.1.-2 contactors
Figure C-43 Drilling plan for contactors with spring-loaded connections (size S00)
