Accessories
10.4 Module for electrical remote RESET (3RU21 only)
SIRIUS 3RU thermal overload relays / SIRIUS 3RB electronic overload relays
Manual, 09/2016, A5E03656507420A/RS-AB/003
135

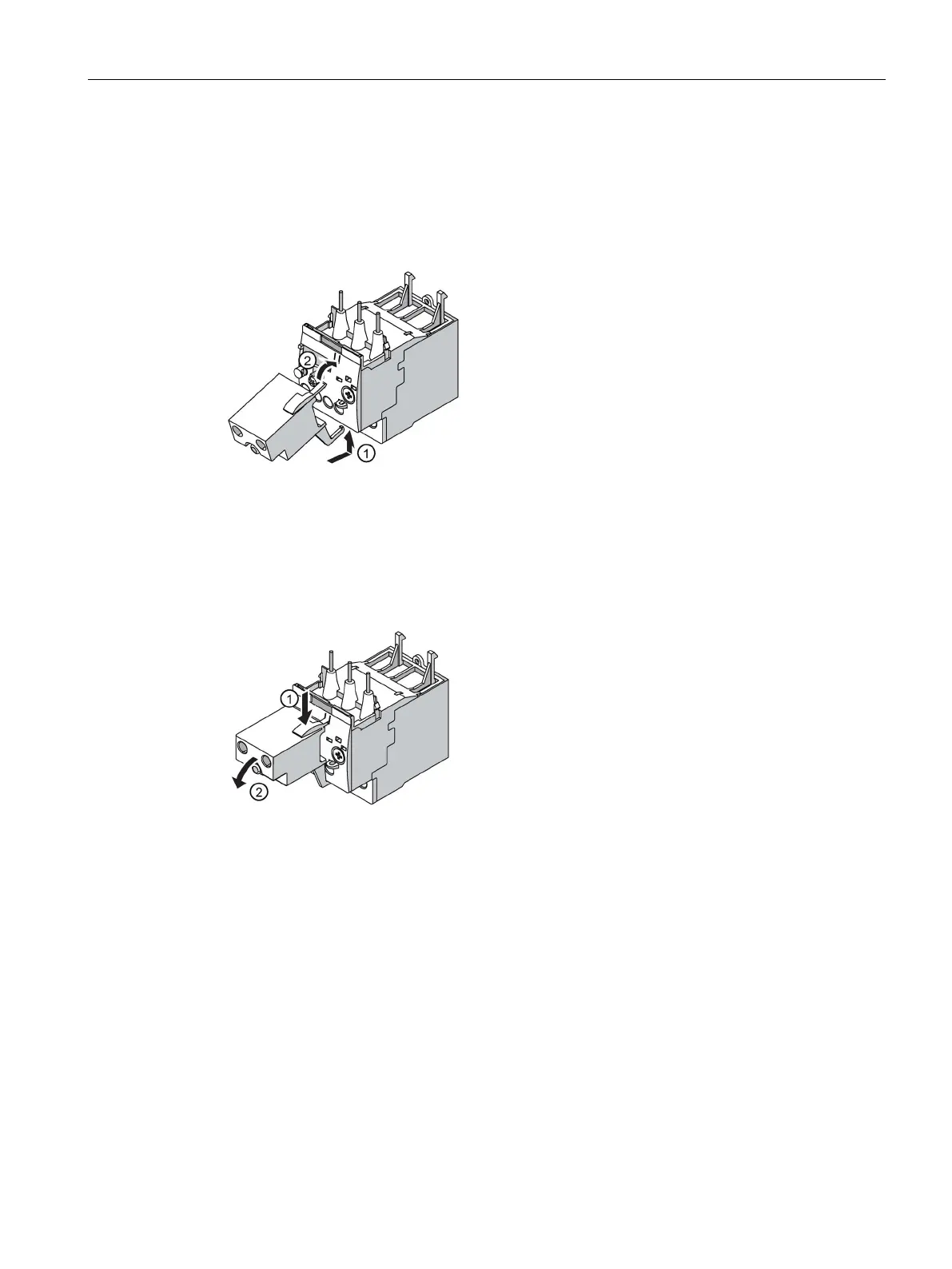

The figure below shows how to assemble the electrical remote RESET module based on the
example of size S0.
Mounting the electrical remote RESET module on the thermal overload relay
Attach the hook to the designated opening.
Fold the module up so that the locking latch snaps into the overload relay.
Disassembly
Disassembling the electrical remote RESET module from the thermal overload relay
Press the locking latch down.
Tilt the module toward you and take it off the overload relay.
