Regent / 500 / 2500 / LT Series
1/2006 19 TP 300-4218-04-RG-SMAN
Service Procedures
Hood Removal and Installation
HOOD REMOVAL
1. Open the hood.
2. Remove the socket and bulbs (A, Figure 34) by
twisting the socket counterclockwise and pulling it out
of the bezel (B). Repeat on other side.
3. Rock the hood back slightly and lift hood (B, Figure
35) off pivot posts(C). Set hood on a clean and flat
surface.
HOOD INSTALLATION
1. Set hinge posts (A, Figure 35) onto pivot posts (C).
2. Roll the hood forward until it reaches the stops (D).
3. Install the socket and bulb (A) by pushing it into the
bezel (B) twisting the socket and bulb clockwise.
Repeat on other side.
4. Close the hood.

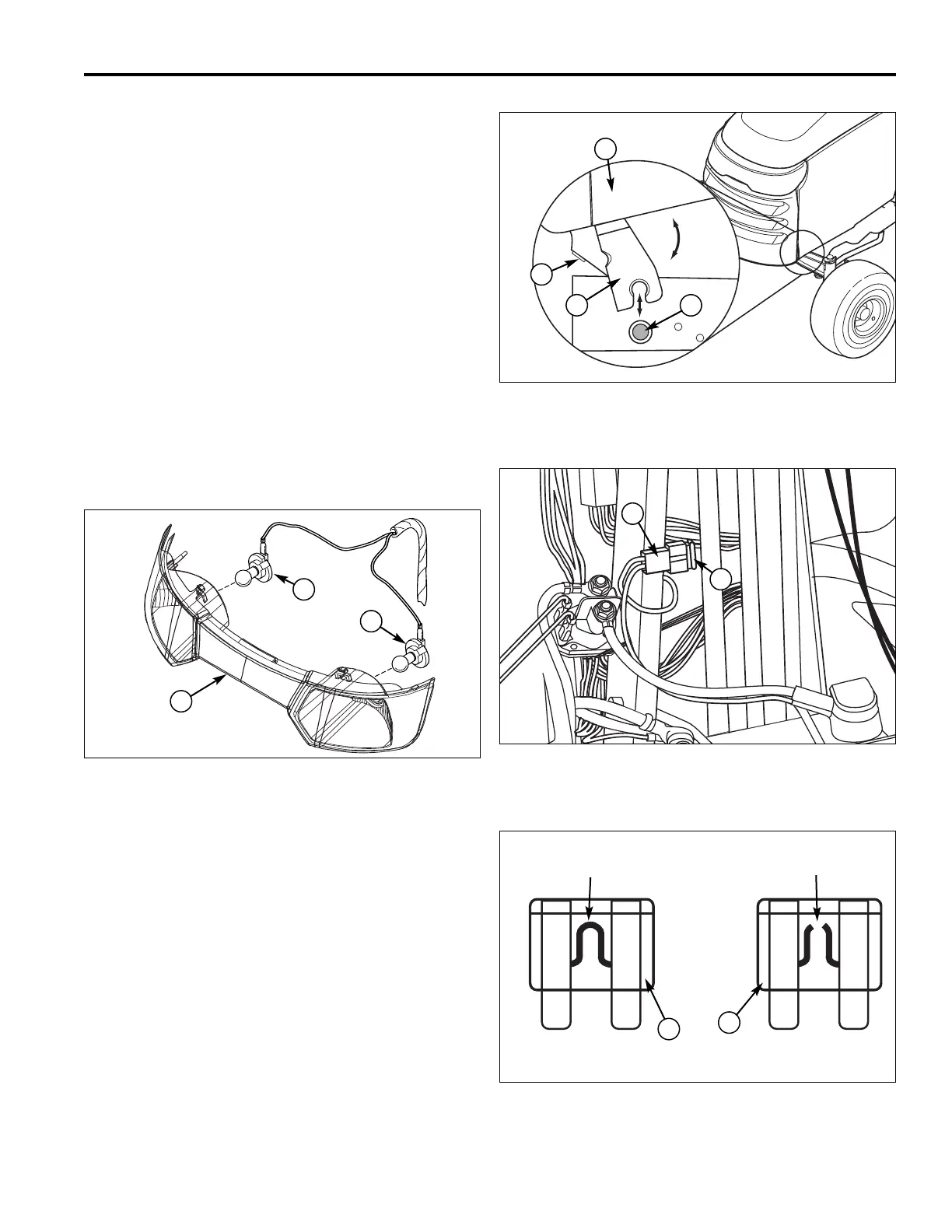

Figure 35. Hood Removal and Installation
A. Hinge Post C. Pivot Post
B. Hood D. Stop
A
C
B
Figure 34. Head Light
A. Socket and Bulb
B. Bezel
Fuse Replacement
The fuse is a 20-amp blade type automotive fuse located
behind the battery on the steering tower. Replace only
with the same rated fuse, 20-amp.
To replace the fuse:
1. Open the hood and locate the fuse holder (B, Figure
36) and fuse (A). Attached to the steering tower.
2. Hold the fuse holder (B) and pull out the fuse (A).
3. Inspect the fuse for a broken connection. See Figure
37. Replace fuse if connection is broken. If you are
not sure if connection is broken replace fuse.
4. Hold the fuse holder (B) and insert new fuse (A) until
it is seated properly.
Figure 36. Fuse
A. Fuse, 20-amp
B. Fuse Holder
B
A
Figure 37. Blade Type Fuse
A. Good Fuse with solid Fusible link
B. Failed Fuse with broken Fusible link
Solid Fusible Link
Broken Fusible Link
B
A
A
B
A
D
