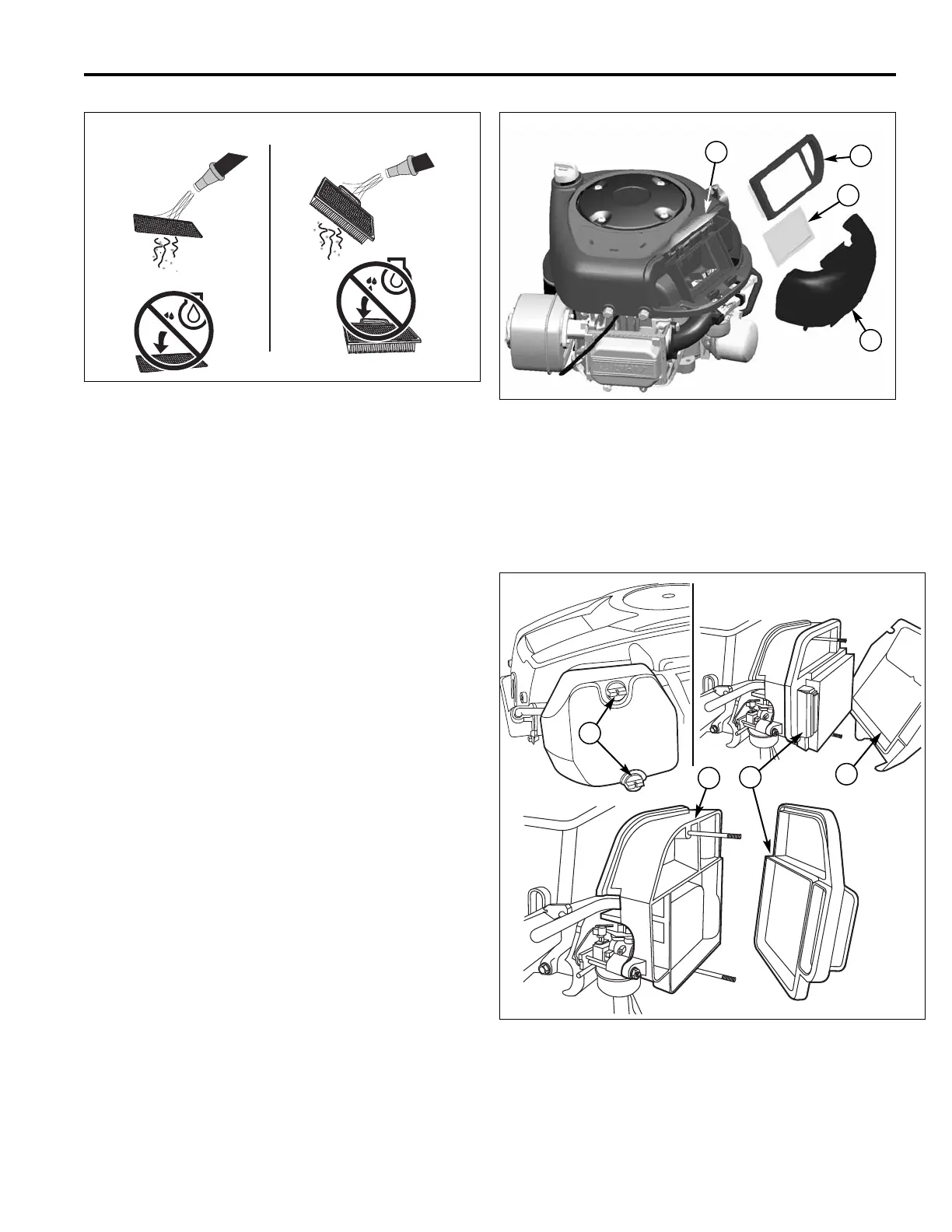

Figure 44. Air Filter Service
Figure 45. Air Filter Service - Briggs & Stratton
Single Cylinder Models
A. Air Filter Latch
B. Air Filter Cover
C. Air Filter
D. Pre-Cleaner
A
C
D
B
Figure 46. Air Filter Assembly - Kohler Models
A. Air Filter Cover Knobs
B. Cover
C. Air Filter
D. Base
Replace Air Filter
KOHLER MODELS
Service Interval: Every 25 hours or two months, or as
required.
1. Loosen the air filter cover knobs (A, Figure 46) and
remove the cover (B). Clean out any debris from
around the air filter. Inspect the condition of the
sealing surfaces of the air filter element (C) and filter
base (D). Replace any damaged parts.
2. Remove the air filter element (C).
3. Install the new air filter element with the pleated side
out and seat it onto the edges of the air cleaner base
(D).
4. Reinstall the air filter cover (B) and secure with the
two knobs (A).
A
D
C
B
