III� Full Size Canister Figures
07�03�07
20

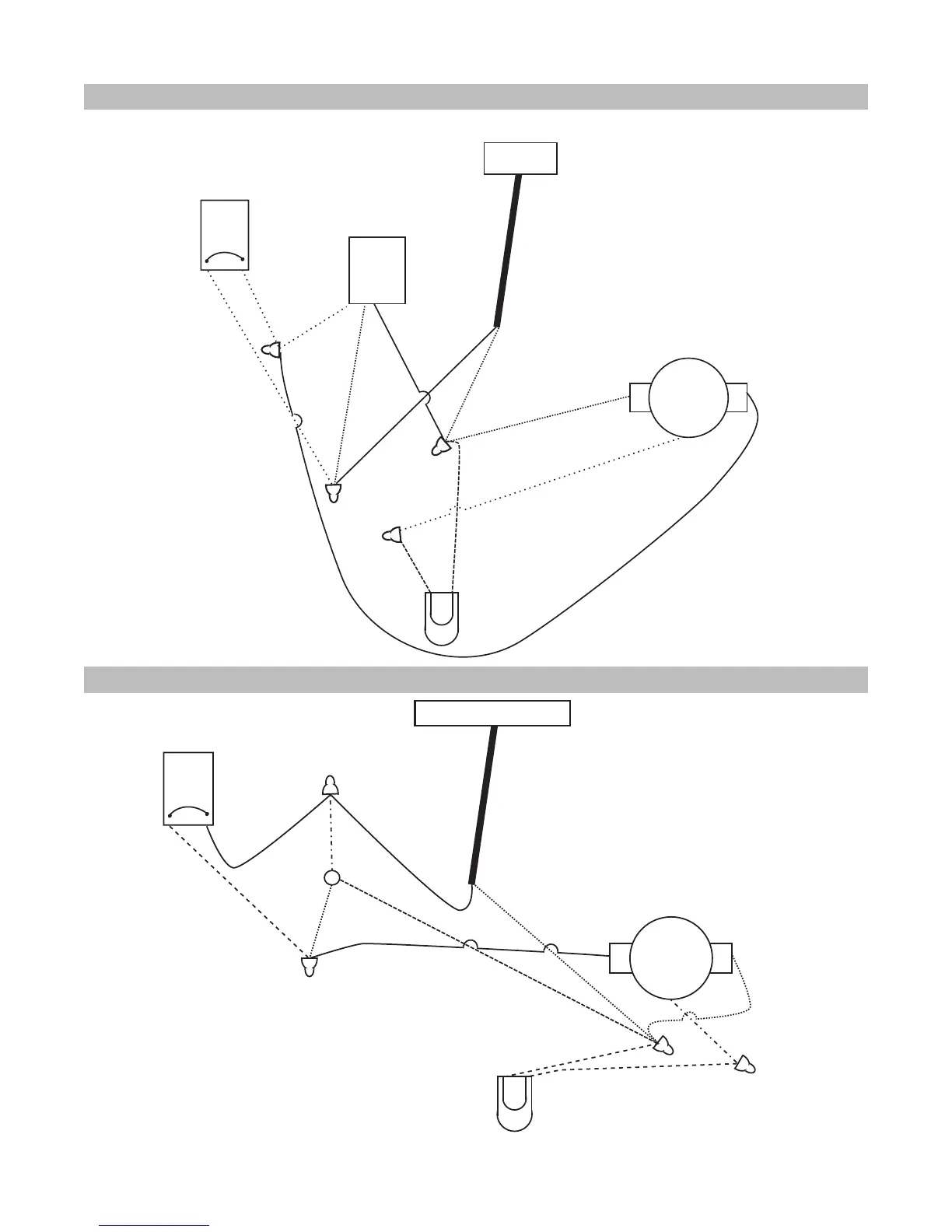

L. Wiring Diagram For Dirt Sensor Models
M. Wiring Diagram For Non-Dirt Sensor Models
M
Motor
Power Cord
Circuit
Breaker
PC
Board
White
White
White
Black
Brown
Black
Brown
or Red
Black
Red
Red
Brown
or Red
Brown
M
Motor
Canister Connection Plug
Circuit
Breaker
LED Light
Red or Brown or Black
Black
Black
Red
Red
Green
Brown
Brown
White
White
White
Red or Brown or Black
21
Table of Contents
Default Chapter
2
Table of Contents
2
Important Safety Instructions
3
General Full Size Canister Issues
4
A�FullBagIndicator
4
General Information
4
The Red Light on the Handle Is Blinking
4
The Full Bag Indicator Fails to Activate When the Bag Is Full
4
B�CheckFilterLight
5
General Information
5
The Reset Switch Does Not Reset the Check Filter Light
5
D�HepaResetButtonLocation
5
C�CommonIssues
6
Canister Power Switch Does Not Click When Pedal Is Depressed
6
What to Check First When Canister will Not Power
6
Interpreting Blinking LED Light on the Main PC Board
6
Canister will Not Run Without the Hose Connected
6
Canister Cuts on and off at the Customers House but Runs in the Store
6
Canister Cuts on and off When Plugged into a Power Strip, but Runs When Plugged into the Wall
6
Full Size Canister Troubleshooting Guide
7
A�CoverDis-AssemblyInstructions
7
A�MainPartsAssembly
7
B�CanisterShutsOffOrWillNotPower
8
C�CanisterPowerSwitchFailsToPowerUpUnit;HoseWorksNormally
10
D�CanisterRuns-PowerNozzleDoesNotRun
11
B�PowerNozzleResetSwitchLocation
12
E�PowerNozzleCutsOnAndOffWhenUsing-TroubleshootingWand
12
C�PowerNozzleWarningLight&DirtSensorLocation
13
F�PowerNozzleW/DirtSensorWillNotRunButCanisterRuns
13
G�PowerNozzleW/DirtSensorRunsButIndicatorLightWillNotChange
14
H�WireHarnessUpgradeInstructions
15
E�MainParts
16
Full Size Canister Figures
16
F�BodyAssembly
16
G�CoverAssembly
16
H�DustCoverAssembly
19
J�HoseAssembly
20
Cord Reel
21
K�WiringDiagramForHarnessUpgrade
21
L�WiringDiagramForDirtSensorModels
22
M�WiringDiagramForNon-DirtSensorModels
22
