071807 VI. Figures
29

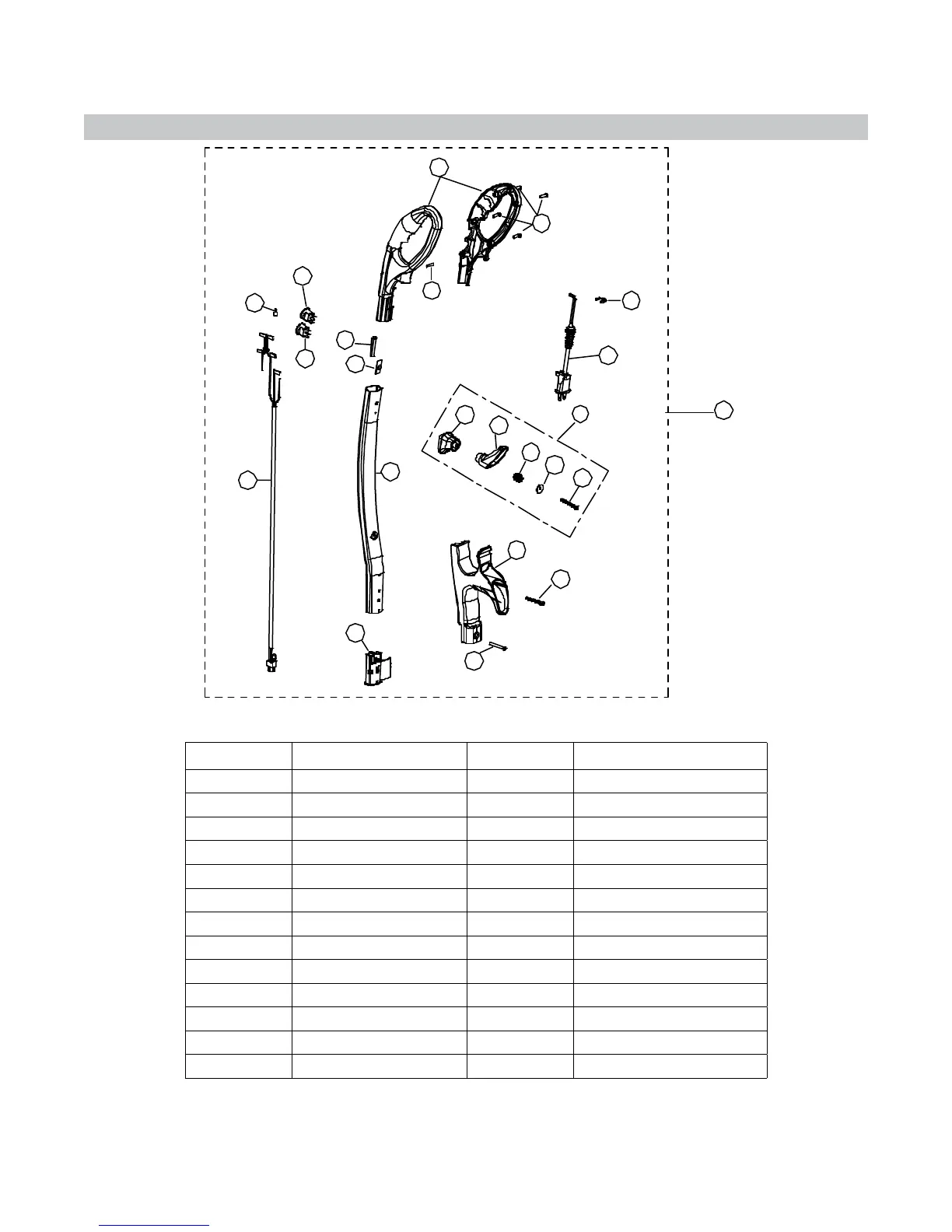

N. Handle Assembly
VI. Figures
4
5
6
7
8
9
10
11
12
10
13
14
15
17
16
19
20
21
18
2
3
1
22
Key Description Key Description
1 Handle Assembly 12 Lower Cord Hook
2 Screw 13 Handle Mount Screw
3 Handle Pin 14 Handle Tube Base Connector
4 E-Clip 15 Handle Tube
5 Power Cord 16 Handle to Body Harness
6 Upper Cord Hook Base 17 Metal Handle Retainer
7 Upper Cord Hook 18 Steel Rod Pin
8 Spring 19 Switch Carpet/Floor
9 Washer 20 Switch On/Off
10 Screw M4x40 21 Wire Connector Md.
11 Upper Cord Hook Assembly 22 Handle Assembly Complete
To Next Page
