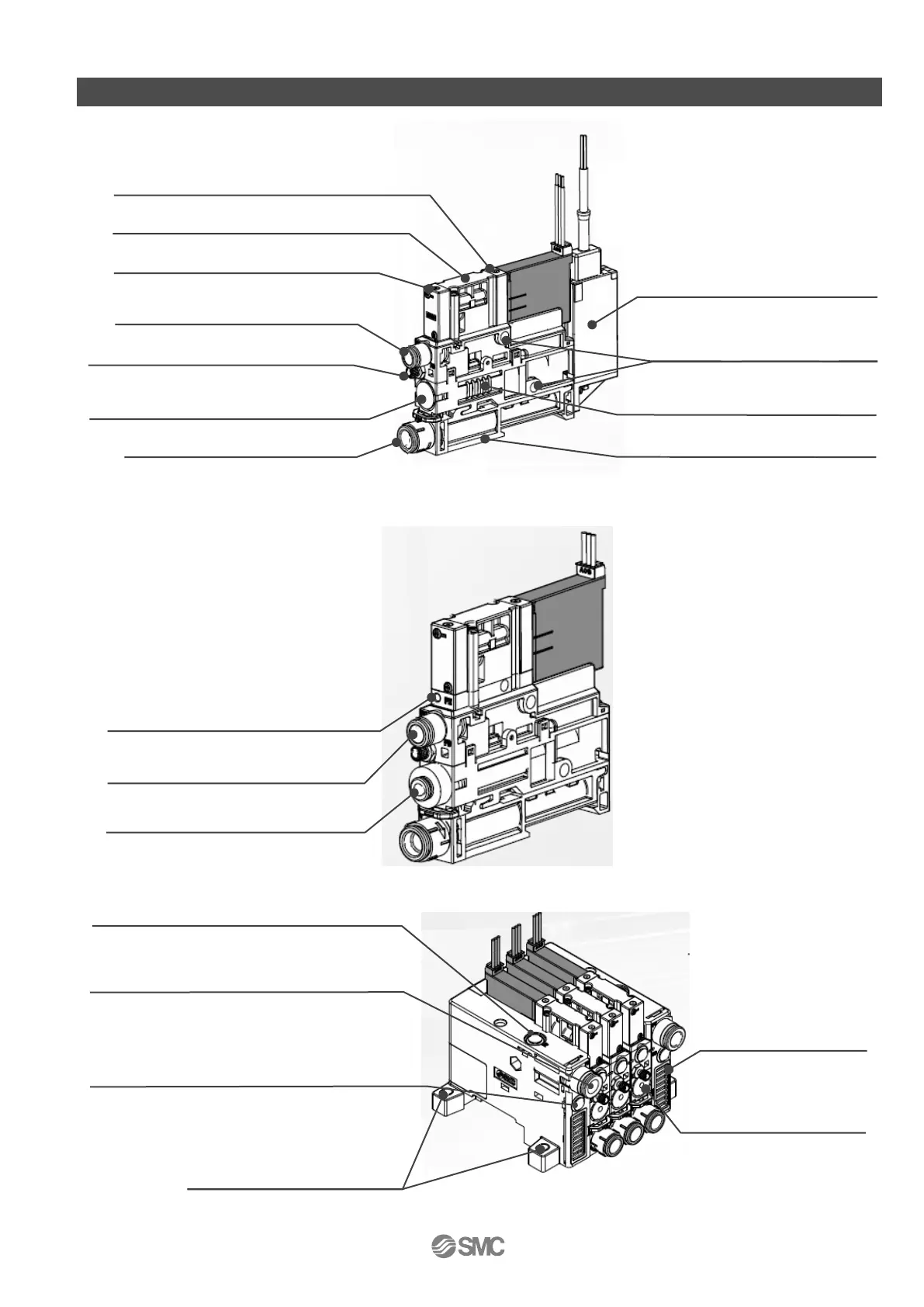

2. Summary of Product Parts
■Single unit (Ejector system)
■Single unit (Vacuum pump system)
■Manifold
Pilot pressure exhaust (PE) port
Filter case
Vacuum break flow adjusting needle
Vacuum (V) port
Air pressure supply (PV) port
Vacuum pressure supply (PV) port
2 x ø4.5 Mounting hole
Pilot pressure supply (PS) port
Pressure switch for vacuum
Release valve manual override
Valve Assembly
Supply valve manual override
Silencer exhaust port
Exhaust port (nozzle size 1.2, 1.5 only)
4 x M4 Mounting hole
Common exhaust port
Common supply (PV) port
Ejector System: Air pressure
Vacuum Pump System: Vacuum pressure
Individual exhaust port
Common pilot pressure supply (PS) port
(Vacuum pump system)
Common release pressure supply (PD) port
(Option)
