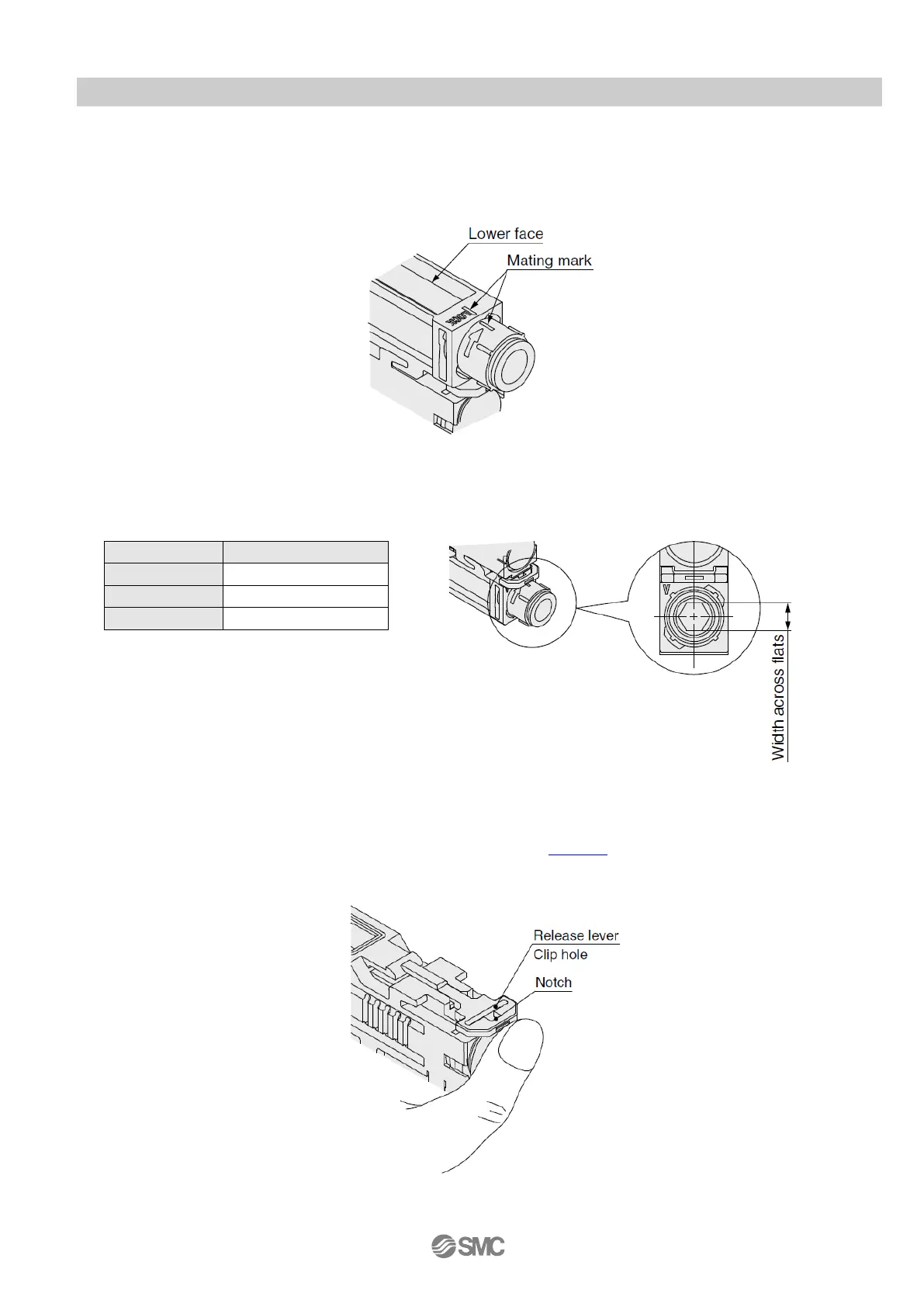

4) Put the filter back into the filter case following this procedure in reverse.
To mount the vacuum port adapter into the filter case, turn the adapter so that the mating mark of the
adapter and the case are aligned. (Rotation stops there.)
If it is difficult to remove the vacuum port adapter, you can remove the adapter with a hexagon wrench
using the hexagonal hole in V port. The table shows the port size and the width across flats.
8.2.2. Replacement procedure for Sound Absorbing Material (for Silencer Exhaust)
1) Remove the filter case. Refer to Filter case maintenance on page 46.
2) Flip the ejector, push the release lever again with a finger or precision screwdriver until the release lever
stops.
V port size
Width across flats
ø6
4
ø8, ø5/16”
6
ø1/4”
4.76
