Mounting and Installation
■Installation
○Mounting with bracket
: The required tightening torque of the piping port is 7 to 9 Nm.
The required tightening torque of the mounting bracket screws is 0.5 to 0.7 Nm.
Fix the bracket to the Pressure switch with the set screws M3×5L (2 pcs) supplied.

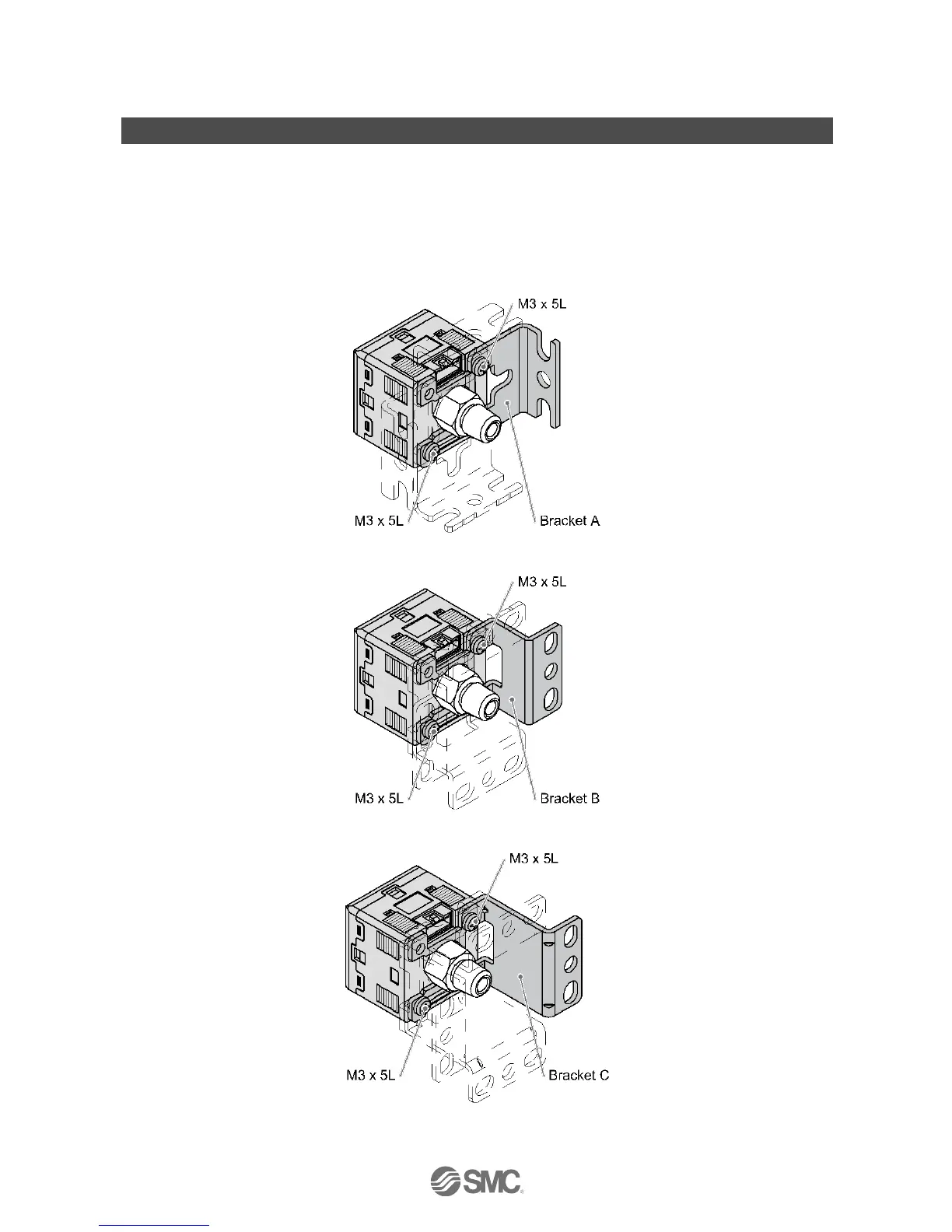

Bracket A (Model: ZS-38-A1)
Bracket B (Model: ZS-38-A2)
Bracket C (Model: ZS-38-A3)
: The bracket A/B/C can be mounted in 4 ways.
