Snap-On CTR714A User Manual

75
ZCTR714ACE Rev. E (08/19)
Parts Listing
Ref Description
Qty
Part Number
A drive body repair
1/4” sq dr
(includes 15A, 16-21, 23-26)
1
CTR714-300R
B drive body repair
1/4” hex dr
(includes 15B, 16-21, 23-26)
1
CTRQ714-300R
1 housing set 1
CTR714-100R
2 housing screw 8
ME3L41
3 switch assembly 1
CTR714-117
4 motor assembly 1
CTR714-50R
5 motor screw 2
ME3L34
6 motor end plate 1
CTR714-4
7 internal gear 1
8 planet gear 4
CTR714-6
9 gear carrier assembly 1
CTR714-160
10 wave washer 1
ME5C16
11A crank shaft 1
CTR714-5
11B crank shaft - CTR717 1
CTR717-5
12 bar element 1
FAR25-7
13A ratchet head assembly
(includes 7, 14, bearings)
1
CTR714-400R
13B ratchet head assembly -
CTR717
(includes 7, 14, bearings)
1
CTR717-400R
14 wear bushing 1
15A drive body assembly
1/4” sq dr
(includes ball/spring)
1
CTR714-301R
15B drive body assembly
1/4” hex dr
(includes magnet/disk)
1
CTRQ714-301R
Ref Description
Qty
Part Number
16 pawl 1
CTR714-302
17 pawl pin 1
ME2A129
18 o-ring 1
ME7B88
19 plunger spring 1
ME1A228
20 plunger 1
FAR25-34A
21 selector knob repair
(includes grease zerk)
1
FAR25-33B
22 ratchet head 1
CTR714-8
23 wear washer 1
FAR25-12A
24 disc spring 2
ME1G12
25 groove washer 1
FAR25-41
26 groove pin 1
ME2C80
27 charger 1
CTC772A
28 battery 1
CTB8172BK
29 * battery housing repair kit
(includes top and bottom
housing, 2 screws)
1
CTB8172BK1
30 * battery housing repair kit
(includes 2 latch buttons, 2
pins, 2 springs)
1
CTB7172-2
31* boot 1
YA905
* not shown

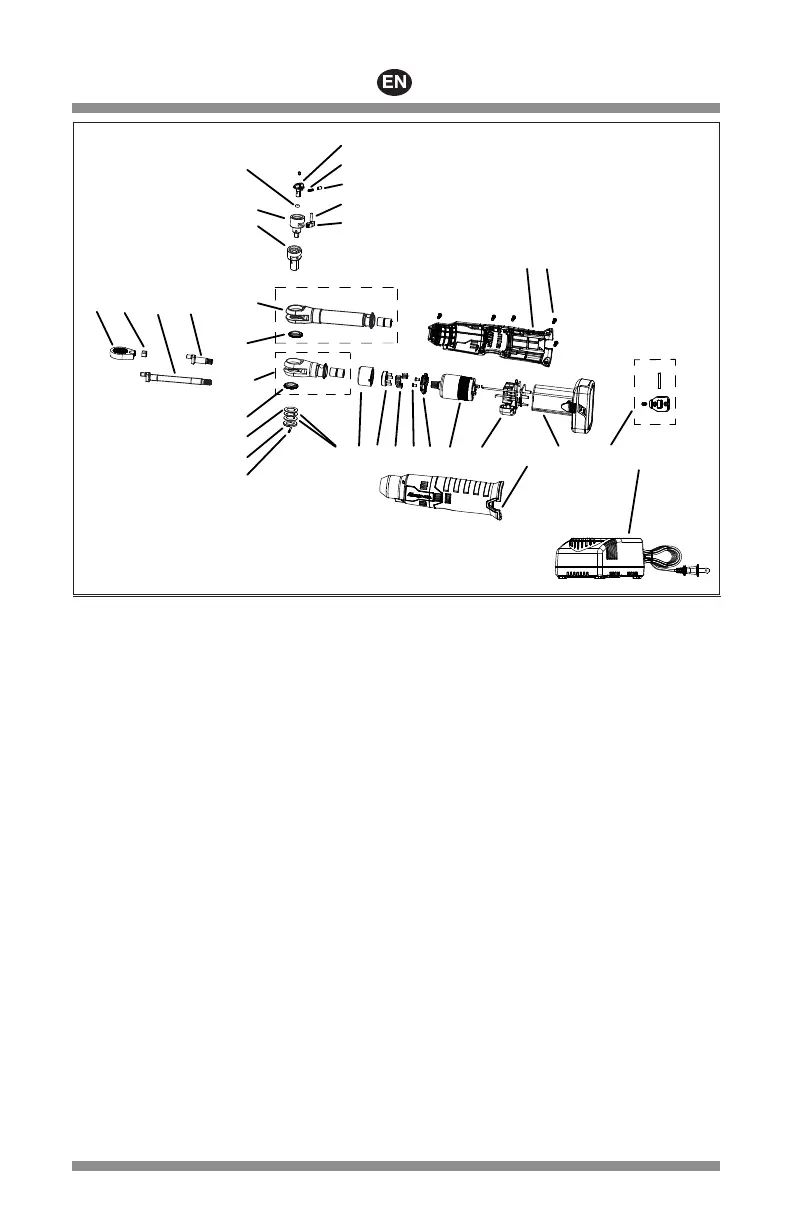

Figure 5: Exploded View
1 2
24 7 9 8 5 6 4 3 1 28 30 27
13B
14
13A
14
23
25
26
22 12 11B 11A
21
20
19
17
16
18
15A
15B
