10
Assembly
YOU WILL NEED:
• Utility knife
• Unleaded fuel
• Tire pressure gauge
• 1/2” deep socket wrench or combination
• 9/16” deep socket wrench or combination
• 7/16” wrench
ITEMS INCLUDED:
a
5/16” Flange Lock Nuts, 2
b
5/16” Jam Nut (thin), 1
c 3/8” Flange Nuts, 2
d 5/16” Lock Nut, 1
e 1/4” Lock Nuts, 2
f Chute Rotator Control
Handle, 1
g 5/16” Lock Washer, 1
h 3/8” Carriage Bolts, 2
j 120V Power Cord, 1
k Extra Shear Pins, 2
m Extra Cotter Pins, 2
n 5/16” Carriage Bolts, 2
p Zip Ties, 3
q Ignition Keys, 2
(1 pre-attached to snowthrower)
Items not shown above:
Operator’s Manual
Illustrated Parts List
Product Registration Card
Engine Manual
Fresh Start® Fuel Preserver
Cartridge
a
c
d
b
e
f
g
h
j
k
m
n
p
q
Fuel Cap
Oil
Dipstick
Auger
Engage
Control
DANGER
Contact with moving parts inside chute will cause
serious injury or death. Shut off engine before
unclogging discharge chute. Use clean-out tool,
not hands!
WARNING
Failure to read and follow the Operator’s Manual
and all operating instructions can result in seri-
ous injury or death.
WARNING
Fuel and its vapors are flammable and explosive.
Turn off engine and wait at least 2 minutes before
refueling. Let spilled fuel evaporate before start-
ing engine.

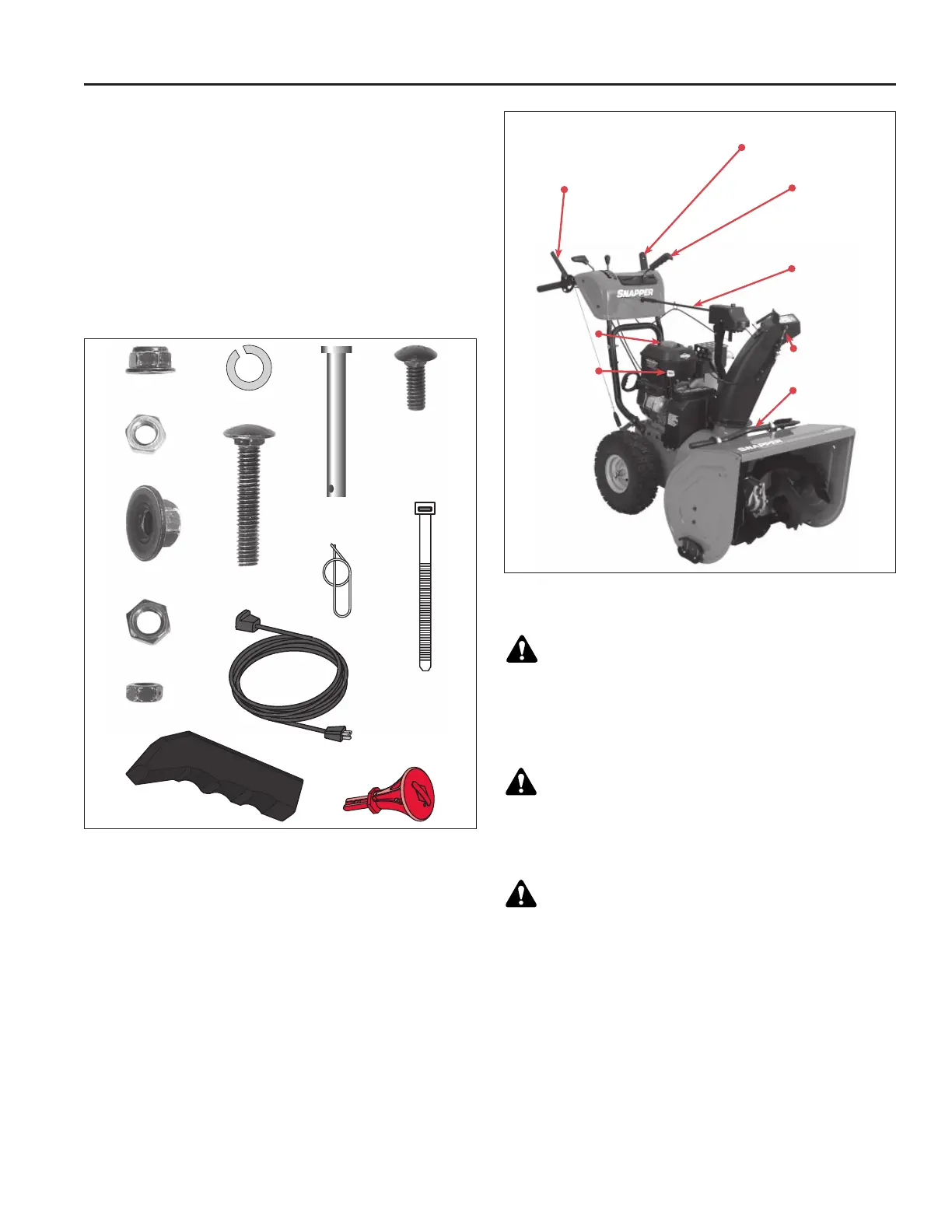

Parts Bag Contents Figure 1
Traction
Control
Chute
Rotator
Control
Split Rod
Chute
Clean-Out
Tool
Snowthrower - Assembled Figure 2
