Assembly
CONNECT SPOUT ROTATOR BRAKE
CABLE
Slide spout rotator brake cable (A, Figure 11) 1.
between dash and the handle cross bar as shown.
Slide rubber dust cover (B) off of plastic fitting as 2.
shown.
Place “Z” bend of cable (C) into hole of brake lever 3.
assembly (D).
Pull plastic fitting (A, Figue 12) behind bracket (B).4.
Slide chute rotator cable (A, Figure 13) between slot 5.
in bracket and push forward to lock in place.
Slide rubber dust cover (B) over plastic fitting. 6.
REMOVE SNOWTHROWER FROM
CRATE
Cut straps from between snowthrower and wood pal-1.
let by wheels and auger.
Roll snowthrower off crate.2.

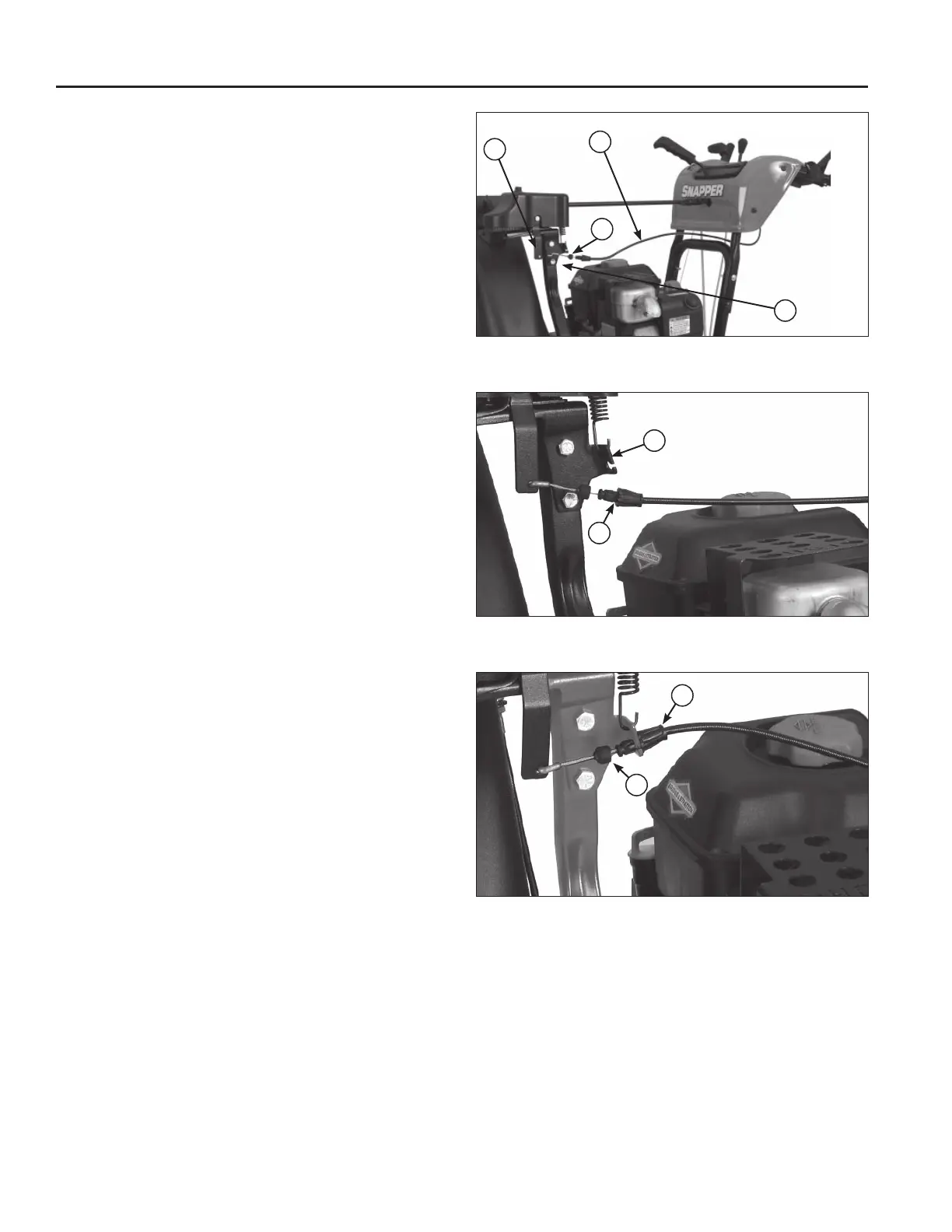

Spout Rotator Brake Cable Figure 11
Plastic Fitting Figure 12
Chute Rotator Cable Figure 13
A
B
C
D
A
B
A
B
