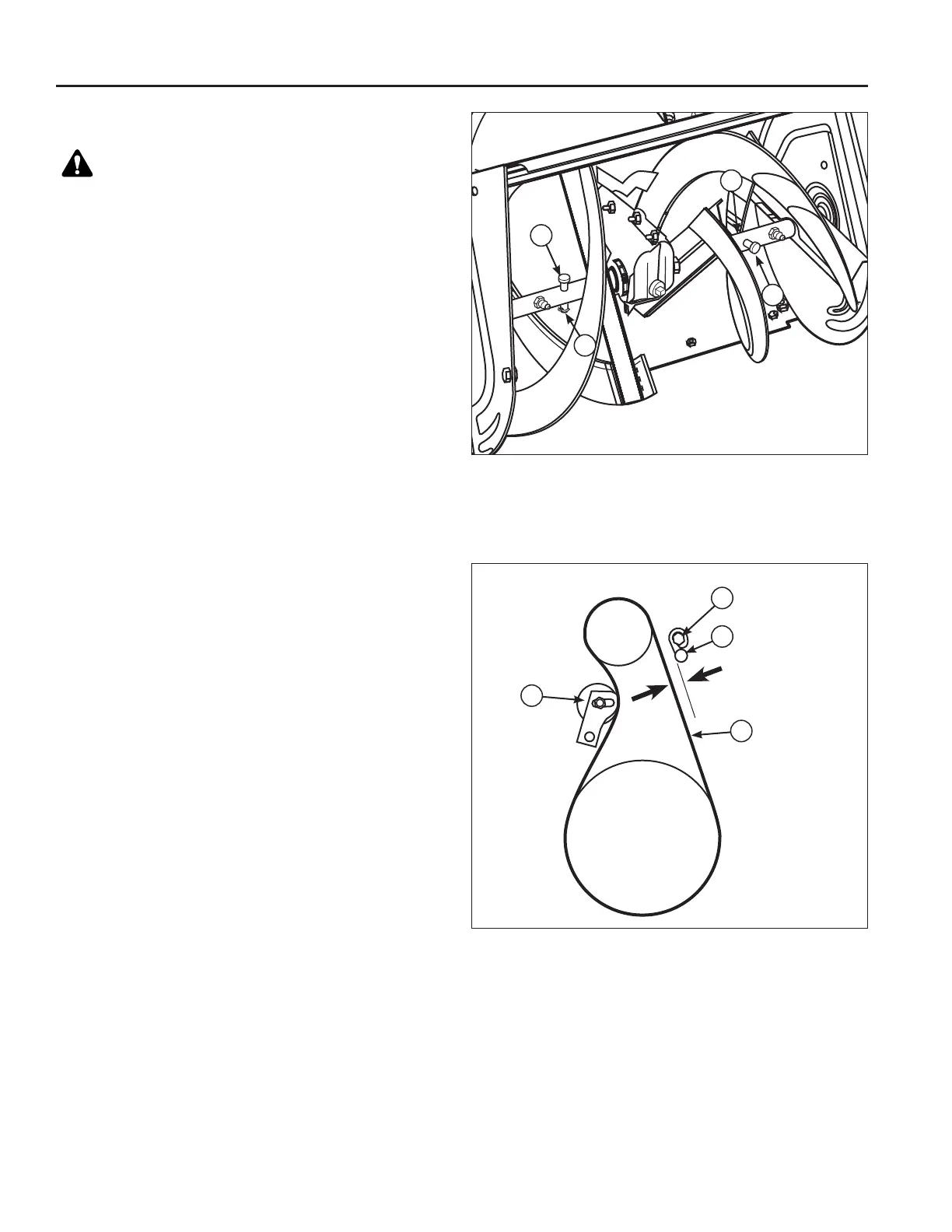

Shear Pins Figure 43
A
B
A
B
SHEAR PIN REPLACEMENT
Under most circumstances, if the auger strikes an object
which could cause damage to the unit, the shear pin will
break. (This protects the gear box and other parts from
damage.)
The shear pins are located on the auger shaft as shown
in Figure 43. To replace the shear pins, tap out the bro-
ken pin with a pin punch, and install a new shear pin and
cotter pin. Do NOT replace shear pins with anything
other than the correct grade replacement shear pin.
(Use of bolts, screws or a harder shear pin will lead to
damaged equipment.)
Replacement Shear Pins, Part Number 1668344 are
available at www.sears.com or by calling 1-800-4-MY-
HOME.
WARNING
Do not go near the discharge chute or auger
when the engine is running. Do not run the engine
with any cover or guard removed.
Belt Guide Figure 44
A
1/8” (3.18 mm)
C
B
BELT GUIDE ADJUSTMENT
1. Disconnect spark plug wire.
2. Remove screw (B, Figure 41) from belt cover (A).
Remove belt cover (A).
3. Engage auger drive and measure the distance
between the belt guide (B, Figure 44) and the belt
(D). The distance should be 1/8 inch (3.18 mm).
4. If adjustment is necessary, loosen belt guide cap-
screw (C). Move belt guide (B) to correct position.
Tighten capscrew (C).
6. Reinstall belt cover (A, Figure 41) securing with
screws (B).
7. Reconnect spark plug wire.
D
33
Adjustments & Service
