Sony Alpha NEX-5R User Manual

13
GB
Table of
contents
Sample photo Menu Index

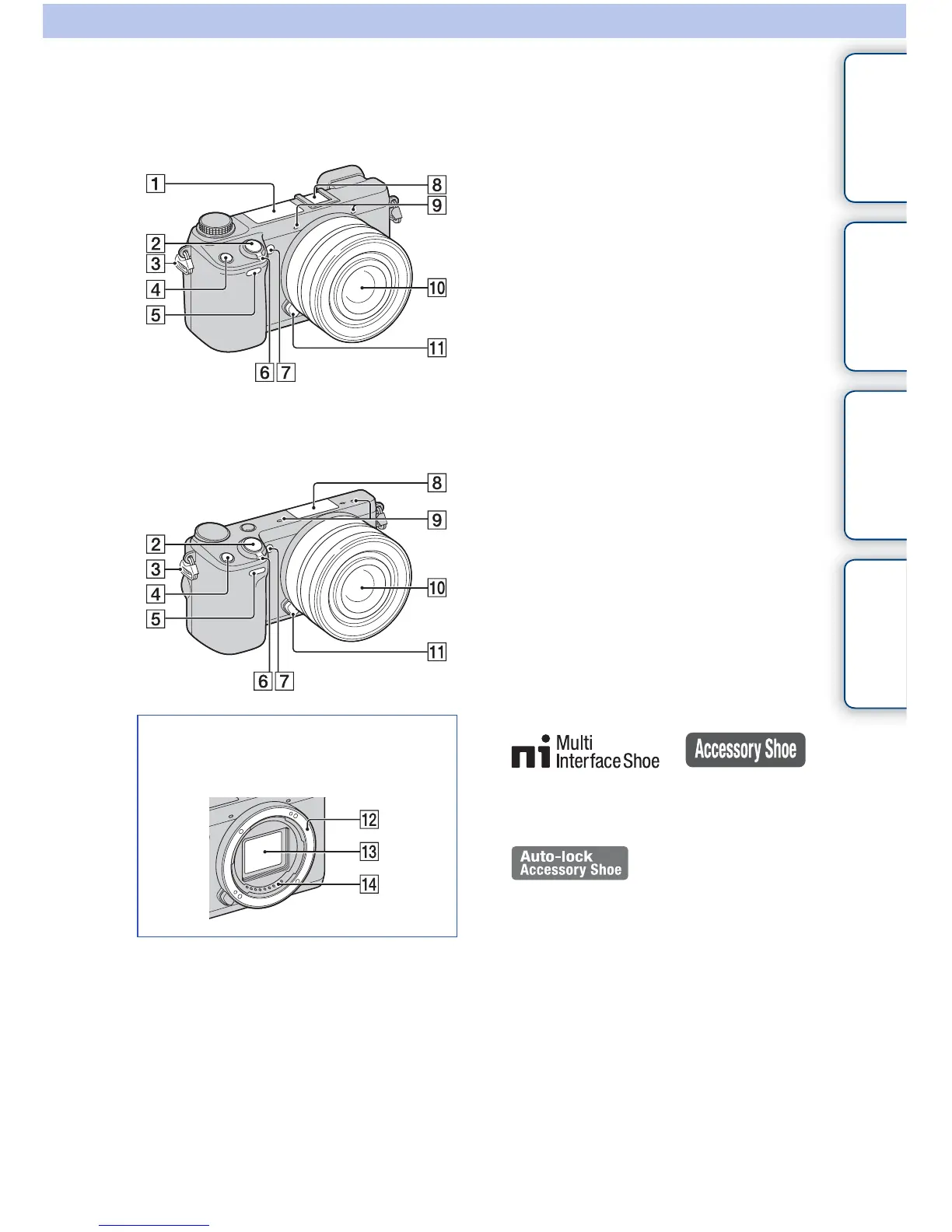

Identifying parts
NEX-6
NEX-5R
See the pages in parentheses for details on
operation for the parts.
A Flash (77)
B Shutter button (36)
C Hook for shoulder strap
D Fn (Function) button (62)
E Remote sensor (59)
F ON/OFF (Power) switch
G AF illuminator/Self-timer lamp/Smile
Shutter lamp
H Multi Interface Shoe
1)2)
(NEX-6)/Smart
Accessory Terminal 2
3)
(NEX-5R)
I Microphone
4)
J Lens
K Lens release button
L Mount
M Image sensor
5)
N Lens contacts
5)
1)
For details on compatible accessories of the
Multi Interface Shoe, visit the Sony web site in
your area, or consult your Sony dealer or local
authorized Sony service facility. Accessories
for the Accessory Shoe can also be used.
Operations with other manufactures’
accessories are not guaranteed.
2)
Accessories for the Auto-lock Accessory Shoe
can also be attached using the Shoe Adaptor
(sold separately).
3)
Accessories for the Smart Accessory Terminal
can be also attached.
You cannot use the [Self-portrait Self-timer]
function when a flash HVL-F7S (supplied) or
accessories are attached to the Smart Accessory
Terminal 2.
4)
Do not cover this part during movie recording.
5)
Do not touch this part directly.
When the lens is removed
Continued r

Sony Alpha NEX-5R Specifications

General

Camera Type	Mirrorless
Sensor Type	APS-C CMOS
Effective Pixels	16.1MP
ISO Sensitivity	ISO 100-25600
Lens Mount	Sony E-mount
Image Processor	BIONZ
LCD Screen Resolution	921, 600 dots
Continuous Shooting	Up to 10 fps
Video Format	AVCHD, MP4
Battery	NP-FW50
Battery Life	Approx. 330 shots
Dimensions	110.8 x 58.8 x 38.9 mm
Autofocus Points	99 phase-detection points, 25 contrast-detection points
Focus Points	99 points (phase detection), 25 points (contrast detection)
Screen Size	3.0 inches
Shutter Speed	1/4000 to 30 sec
Video Resolution	1920 x 1080
Connectivity	Wi-Fi
Storage Media	SD/SDHC/SDXC, Memory Stick Pro Duo
Weight	218 g (body only)
Screen Type	Tiltable LCD
