Sony CDX-GT40U Service Manual

CDX-GT40U/GT40UW/GT42UE/GT44U/GT45U/GT47UE
14

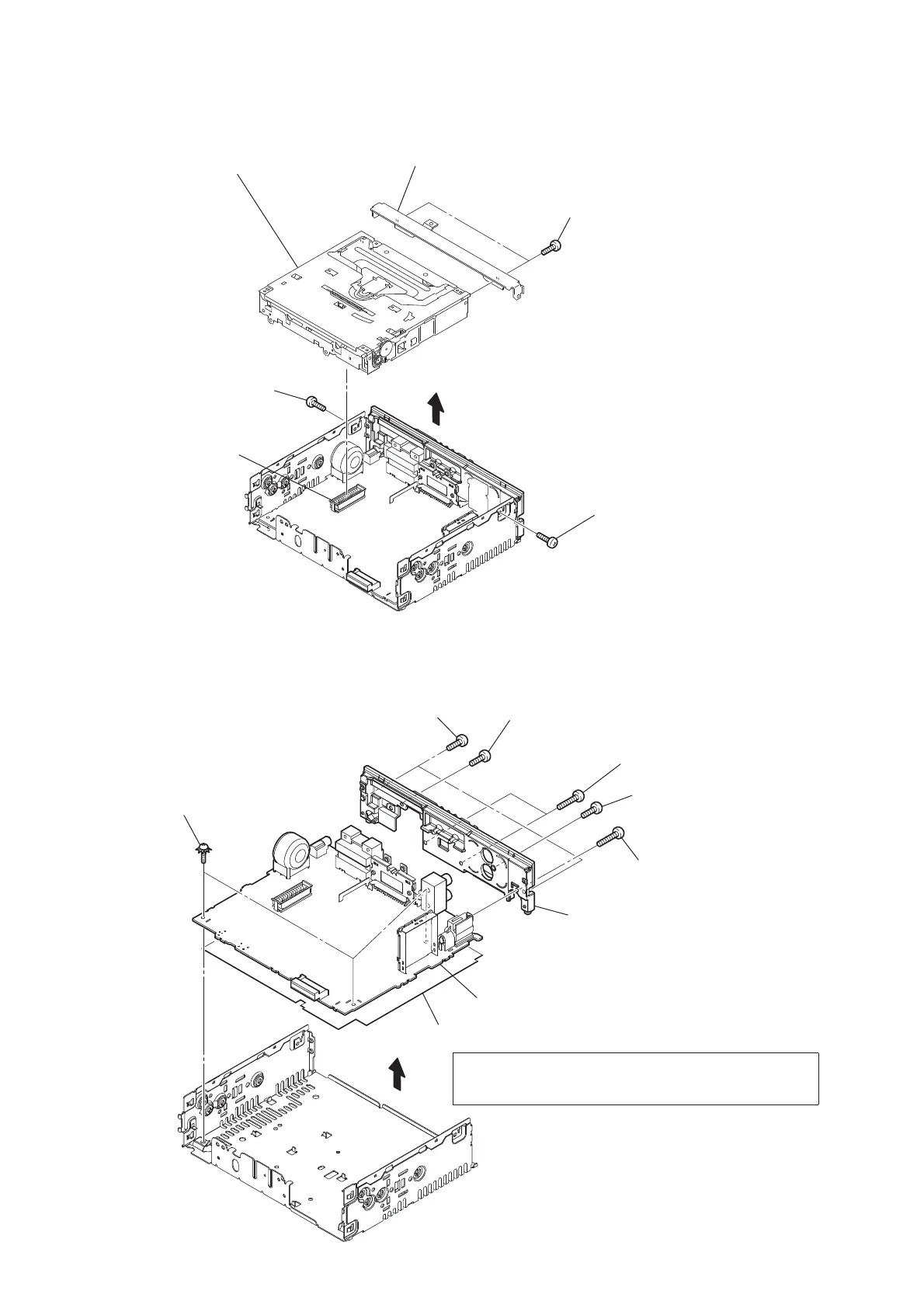

3-2. CD MECHANISM BLOCK
4 CN700
3
1 screw
(+PTT 2.6 u 6)
2 screw
(+PTT 2.6 u 6)
5 two screws
(+PTT 2.6 u 4)
6 bracket (CD)
7 CD mechanism block
3-3. MAIN BOARD
9 MAIN board
insulating sheet
3
2 two screws
(+PTT 2.6
u 8)
7 screw
(+PTT 2.6
u 10)
8 heat sink
6
screw
(+P 2.6 u 8)
4 screw
(+P 2.6
u 8)
5 two screws
(+PTT 2.6 u 10)
1 three ground point screws
(+PTT 2.6 u 6)
Note: When the complete MAIN board is replaced, the destination
setting is necessary. Refer to “NOTE THE MAIN BOARD OR
SYSTEM CONTROLLER (IC501) REPLACING” on page 5.

Sony CDX-GT40U Specifications

General

MP3 playback	Yes
Tuner type	SSIR-EXA
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Impedance	220 Ω
Output power	52 W
Product color	Black
Ready for iPod	No
Disc types supported	CD, CD-R, CD-RW
Audio output channels	4.0 channels
Signal-to-Noise Ratio (SNR)	80 dB
Display type	LCD
USB version	2.0
USB ports quantity	1
File type	MP3/WMA/AAC
Number of optical discs	1 discs

Weight and Dimensions

Weight	1200 g
Dimensions (WxDxH)	178 x 180 x 50 mm
