Sony CDX-GT40U Service Manual

45
CDX-GT40U/GT40UW/GT42UE/GT44U/GT45U/GT47UE
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

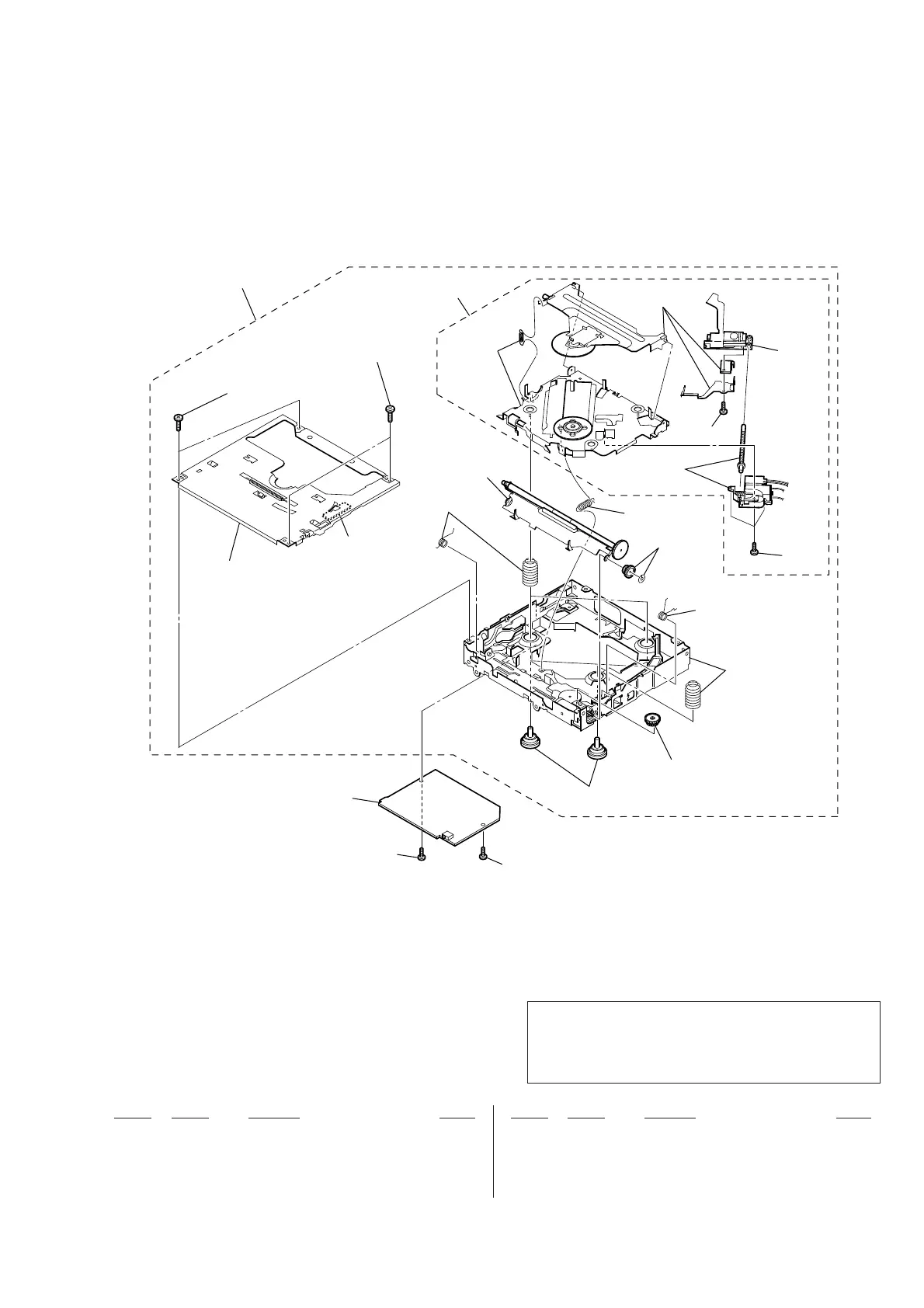

5-3. CD MECHANISM SECTION
(MG-101CA-188)
101 A-1313-179-A MECHANICAL BLOCK (Z) ASSY 08 (Former type)
101 A-1866-801-A MECHANICAL BLOCK (11CA) ASSY (New type)
0 102 A-1284-705-A DAXEV08//Q
0 103 X-2149-672-1 SERVICE ASSY, OP (DAX-25A)
104 2-626-869-31 SCREW (M2X3), SERRATION
105 3-686-458-21 SCREW (P1.4), TAPPING
106 3-352-758-31 SCREW (M1.7X2.5), TOOTHED LOCK
107 A-1823-723-A SERVO BOARD, COMPLETE (Former type)
107 A-1866-089-A SERVO BOARD, COMPLETE (New type)
108 2-134-636-71 SCREW (M1.7X2.5)
not supplied
SENSOR board
not
supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
101
102
103
105
104
107
106
106
108
108
Note: As for the mechanism deck (MG-101CA-188) carried in this
unit, component parts have been changed from the midway
of production. When you perform repair exchange of the
mechanism deck (MG-101CA-188), refer to “ABOUT THE
MG-101CA-188 OF FORMER AND NEW” on page 6.
Ver. 1.3

Sony CDX-GT40U Specifications

General

MP3 playback	Yes
Tuner type	SSIR-EXA
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Impedance	220 Ω
Output power	52 W
Product color	Black
Ready for iPod	No
Disc types supported	CD, CD-R, CD-RW
Audio output channels	4.0 channels
Signal-to-Noise Ratio (SNR)	80 dB
Display type	LCD
USB version	2.0
USB ports quantity	1
File type	MP3/WMA/AAC
Number of optical discs	1 discs

Weight and Dimensions

Weight	1200 g
Dimensions (WxDxH)	178 x 180 x 50 mm
