CDX-GT40U/GT40UW/GT42UE/GT44U/GT45U/GT47UE
SECTION 5
EXPLODED VIEWS
1 X-2581-176-3 PANEL ASSY, SUB
2 3-042-244-11 SCREW (T)
3 X-2547-583-3 LOCK ASSY (T)
4 4-410-504-01 SCREW (+PTT 2.6X6), GROUND POINT
5 A-1831-756-A MAIN BOARD, COMPLETE
(EXCEPT AEP, RU, UK, EA) (Former type)
5 A-1831-756-B MAIN BOARD, COMPLETE
(EXCEPT AEP, RU, UK, EA) (New type)
5 A-1831-772-A MAIN BOARD, COMPLETE (AEP, UK) (Former type)
5 A-1831-772-B MAIN BOARD, COMPLETE (AEP, UK) (New type)
5 A-1832-546-A MAIN BOARD, COMPLETE (RU) (Former type)
5 A-1832-546-B MAIN BOARD, COMPLETE (RU) (New type)
5 A-1851-887-A MAIN BOARD, COMPLETE (EA) (Former type)
5 A-1851-887-B MAIN BOARD, COMPLETE (EA) (New type)
6 1-839-372-11 CONNECTION CORD FOR AUTOMOBILE
(POWER) (US, CND, E, EA, MX, KR, IND)
6 1-839-387-11 CONNECTION CODE (ISO) (POWER)
(AEP, RU, UK, AR)
FU601 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) (10 A/32 V)
TU901 A-1878-198-A TUX-DSP02 (TUNER UNIT)
#1 7-685-792-09 SCREW +PTT 2.6X6 (S)
#2 7-685-790-01 SCREW +PTT 2.6X4 (S)
#3 7-685-793-01 SCREW +PTT 2.6X8 (S)
#4 7-685-794-01 SCREW +PTT 2.6X10 (S)
#5 7-685-134-19 SCREW +P 2.6X8 TYPE2 NON-SLIT
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
Parts Color Cabinet’s Color
• Accessories are given in the last of the
electrical parts list.
• Abbreviation
AR : Argentina model
CND : Canadian model
EA : Saudi Arabia model
IND : Indian model
not supplied
not supplied
TU901
FU601
not supplied
front panel section
#1
#1
#1
#1
#3
#4
#4
#5
#5
#3
#2
#2
#1
B
B
1
2
3
6
5
not supplied
not supplied
not supplied
4
MAIN board
A
A
CD mechanism section
(MG-101CA-188)
Ver. 1.4
Note 1: When the complete MAIN board is replaced, the destination
setting is necessary. Refer to “NOTE THE MAIN BOARD OR
SYSTEM CONTROLLER (IC501) REPLACING” on page 5.
Note 2: COMPLETE MAIN BOARD (Ref. No. 5) has been changed in the
midway of production. When COMPLETE MAIN BOARD (Ref.
No. 5) is replaced, be sure to refer to “ABOUT CHANGE OF THE
LCD DRIVER IC (IC901) ON THE KEY BOARD” on page 7.

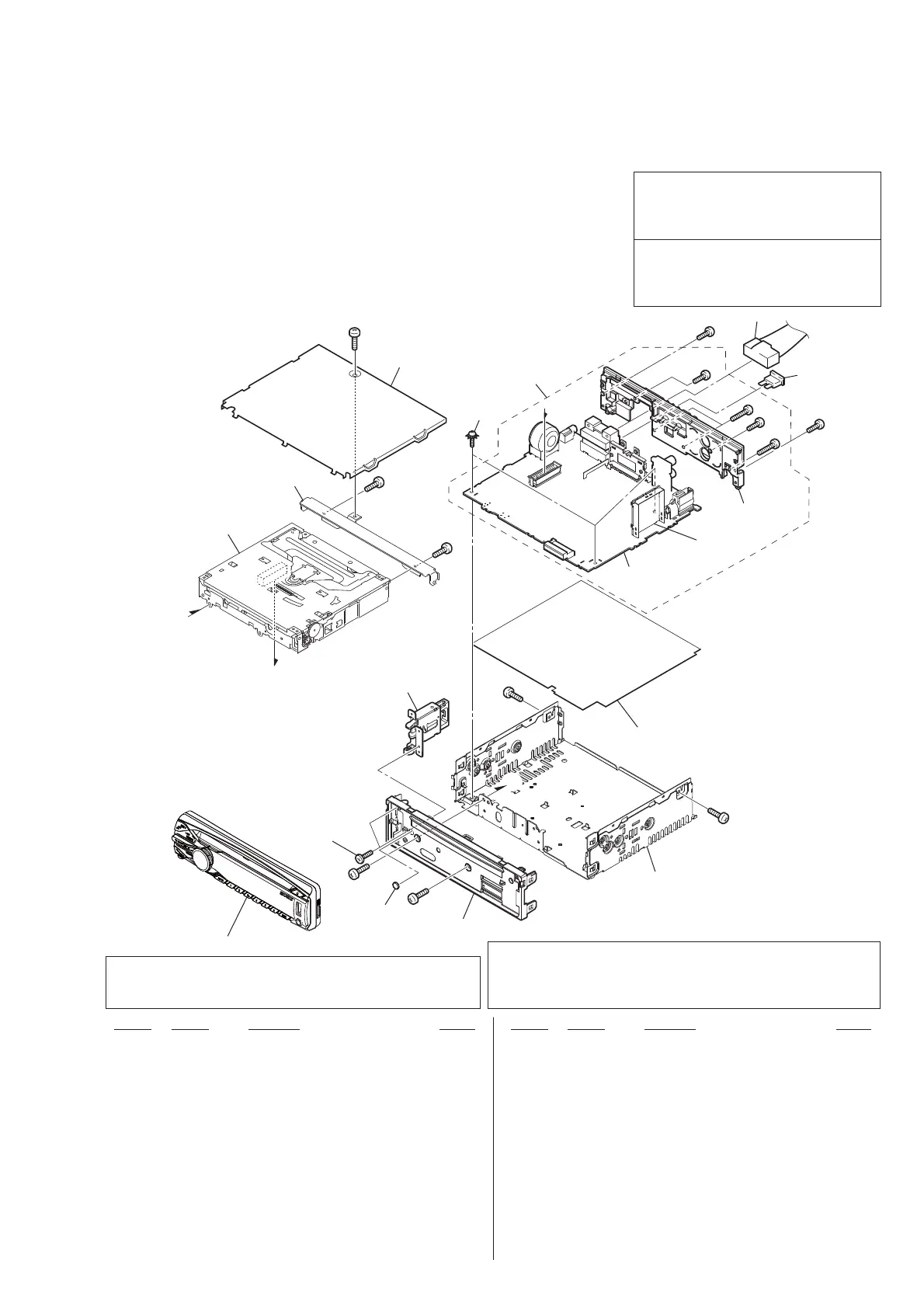

5-1. MAIN SECTION
KR : Korean model
MX : Mexican model
RU : Russian model
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
Les composants identifi és par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce por-
tant le numéro spécifi é.
To Next Page
