Sony CDX-GT40U Service Manual

CDX-GT40U/GT40UW/GT42UE/GT44U/GT45U/GT47UE
15

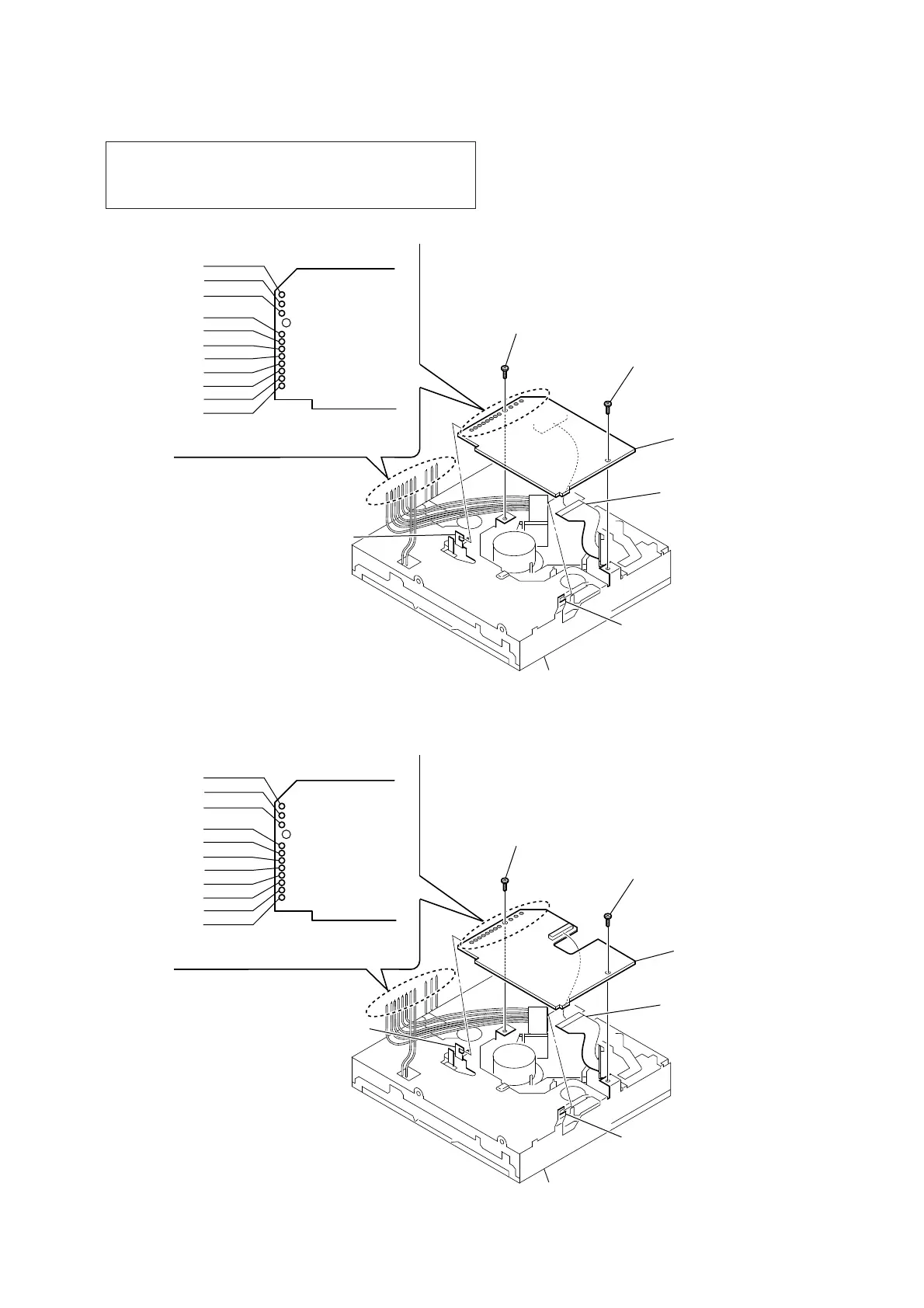

3-4. SERVO BOARD
– CD mechanism deck bottom side view –
– CD mechanism deck bottom side view –
6 SERVO board
2 toothed lock screw
(M1.7 u 2.5)
5 optical pick-up (16 core)
(CN101)
2 toothed lock screw
(M1.7 u 2.5)
3 claw
4 claw
CD mechanism deck
SERVO board
1 Remove the eleven solders.
GRY
YEL
BLU
ORG
RED
BLK
RED
WHT
BLK
RED
WHT
6 SERVO board
3 claw
4 claw
SERVO board
2 toothed lock screw
(M1.7 u 2.5)
2 toothed lock screw
(M1.7 u 2.5)
1 Remove the eleven solders.
GRY
YEL
BLU
ORG
RED
BLK
RED
WHT
BLK
RED
WHT
5 optical pick-up (16 core)
(CN101)
CD mechanism deck
Note: In this unit, the complete SERVO board has been changed in the
midway of production. When replacing the complete SERVO
board, refer to “ABOUT THE MG-101CA-188 OF FORMER
AND NEW” on page 6.
• Former type
• New type
Ver. 1.3

Sony CDX-GT40U Specifications

General

MP3 playback	Yes
Tuner type	SSIR-EXA
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Impedance	220 Ω
Output power	52 W
Product color	Black
Ready for iPod	No
Disc types supported	CD, CD-R, CD-RW
Audio output channels	4.0 channels
Signal-to-Noise Ratio (SNR)	80 dB
Display type	LCD
USB version	2.0
USB ports quantity	1
File type	MP3/WMA/AAC
Number of optical discs	1 discs

Weight and Dimensions

Weight	1200 g
Dimensions (WxDxH)	178 x 180 x 50 mm
