2. DISASSEMBLY
2. DISASSEMBLY
DCR-HC30/HC30E
2-1 2-2
2-1. DISASSEMBLY

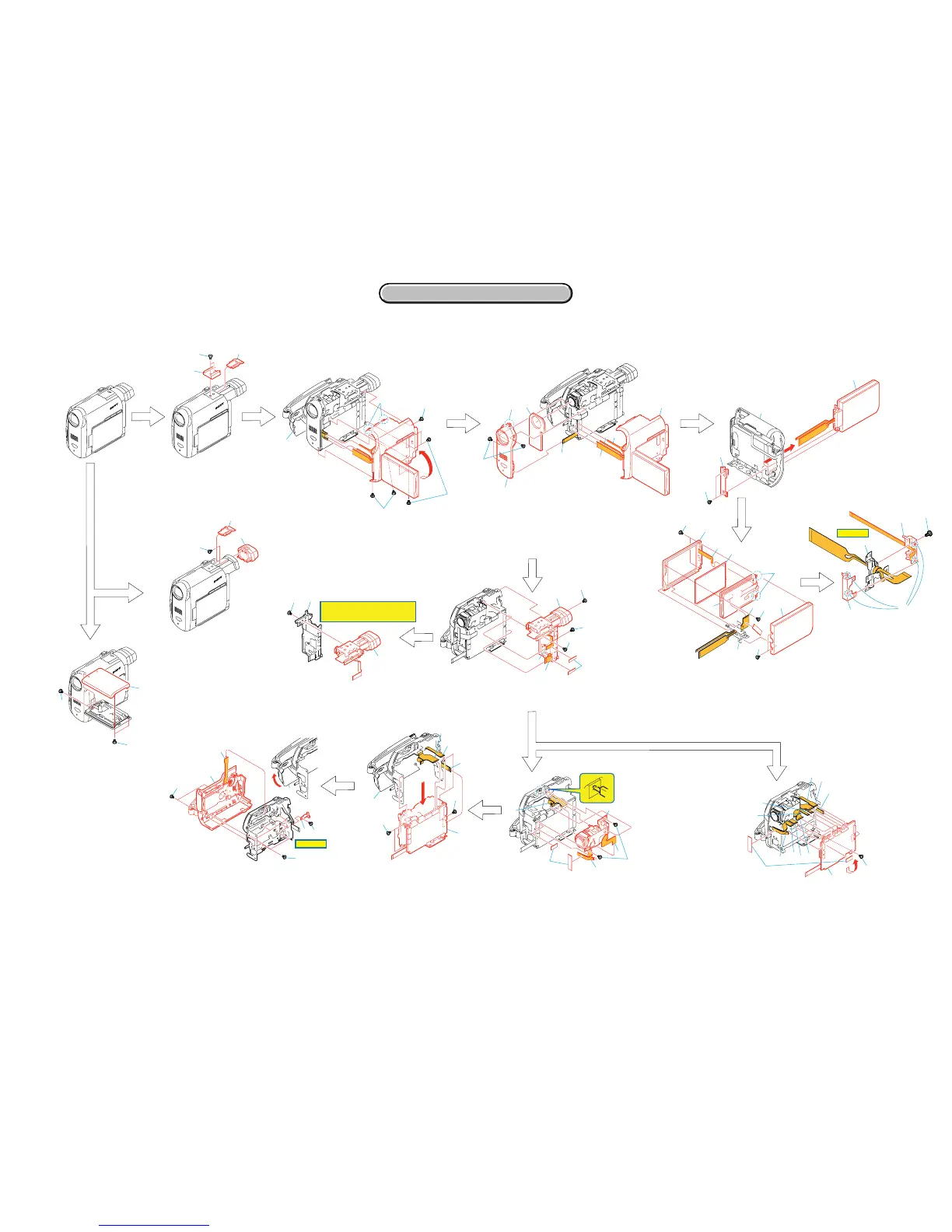

The following flow chart shows the disassembly procedure.
VC
-351
V
C
-351
VC
-351
VC
-351
VC
-351
VC
-351
3
2
3
2
6
qs
4
2
3
5
6
1
4
7
1
8
5
4
3
1
2
7
0
9
4
4
5
6
7
8
0
9
qa
3
8
6
7
2
4
5
3
3
5
2
3
1
2
1
1
2
3
1
9
4
6
1
Shoe cover
2
Two special screws (M2x2.8) silver
3
Cold shoe
1
Two screws (M1.7x3) silver
2
Five tapping screws (M1.7x4) black
3
Screw (M1.7x3) silver
4
Open the G cabinet (64) assembly.
5
Two claws
1
Two tapping screws (M1.7x6) black
2
Hinge blind
3
LCD section
4
Cabinet (R) section
1
Two screws (M1.7x3) silver
2
Two tapping screws (M1.7x5) black
3
P cabinet (C) assembly
4
Tape (A)
5
FP-835 flexible board (22P)
6
Hinge section
1
Screw (M1.7
×
2.5) black
2
Four claws
3
Hinge cover (M),
FP-836 flexible boar
4
Hinge cover (C)
5
FP-835 flexible board, Hinge section
1
Two tapes (W)
2
Screw (M1.7x2.5) black
3
From lens flexible board (23P)
4
SS6300 control key block (18P)
5
to
qa
(CN1105 (20P), CN1108 (39P), CN6501 (10P), CN9101 (10P), CN9102 (27P),
CN9103 (27P), CN4001 (14P)) of VC-351 board
qs
VC-351 board
1
Two tapes (W)
2
From lens flexible board (23P)
3
FP-833 flexible board (6P)
4
FP-827 flexible board (14P)
5
Two screws (M1.7x2.5) black
6
Lens block assembly
1
Screw (M1.7x3) silver
2
BAT section
3
EVF section
1
Two tapping screws (M1.7x5) black
2
Two screws (M1.7x3) silver
3
P cabinet (C) assembly
qa
qs
7
SB6300 control key block (6P)
8
Tapping screw (M1.7x5) black
9
Two claws
0
Panel cushion
qa
P cabinet (M) assembly
qs
PD-213 board, LCD unit (ACX528AKN-J),
Light guide plate block
7
FP-836 flexible board (6P)
8
FP-835 flexible board (22P)
9
Cabinet (R) section
5
FP-830 flexible board (26P)
6
FP-831 flexible board (20P)
7
BAT, EVF block assembly
HELP 01
1
2
5
3
4
2
1
1
3
4
7
3
1
2
5
6
1
FP-833 flexible board (39P)
2
FP-832 flexible board (20P)
3
SS6300 control key block (18P)
4
Screw (M1.7x2.5) black
5
Two screws (M1.7x2.5) black
6
Open the G cabinet (64) assembly.
7
VC-351 board, Mechanism deck, MD frame assembly
FFC-036 flexible board
2
1
Screw (M1.7x4) black
2
Screw (M1.7x2.5) black
3
Screw (M1.7x4) black
4
Two tapes (A)
7
6
2
4
3
1
1
Open the G cabinet (64) assembly.
2
Screw (M1.7x2.5) black
3
Eject knob
4
Six tapping screws (M1.7x4) silver
5
Two screws (M1.7x2.5) black
6
FP-832 flexible board
7
G cabinet (64) assembly, MS board,
FP-832 flexible board
HELP 03
5
5
1
2
3
1
Shoe cover
2
Tapping screw (M1.7x5) black
3
EYE cup assembly
1
1
Three screws (M1.7x3) silver
2
FFC-036 flexible flat cable (16P)
3
Claw
4
F panel block assembly
5
Cushion (F2)
6
CF6300 control key block (8P)
HELP 02
(disassembly of the EVF section)
