2-6
DCR-HC30/HC30E
2. DISASSEMBLY
2. DISASSEMBLY

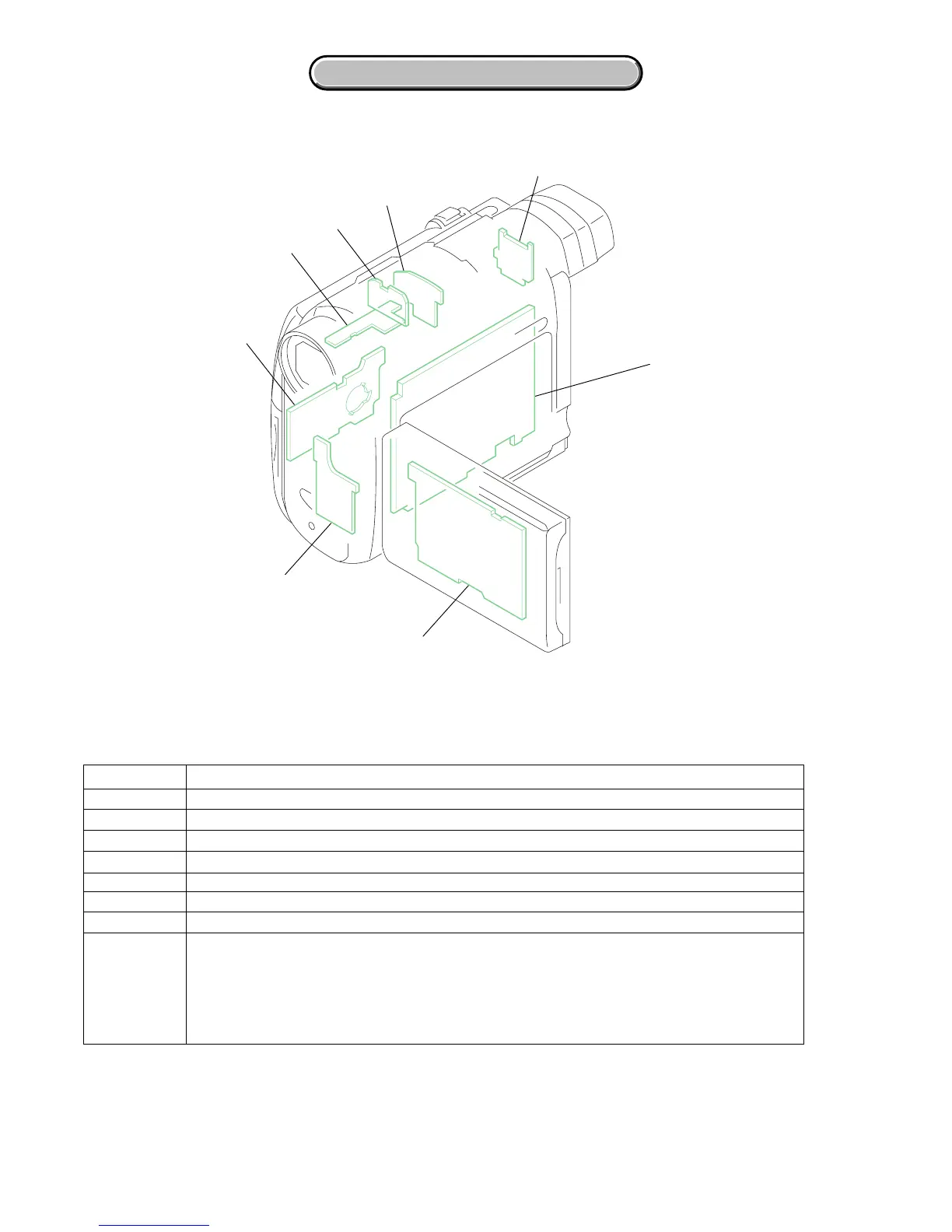

2-3. CIRCUIT BOARDS LOCATION
VC-351
SE-141
LB-095
CD-489
MS-200
IR-051
PD-213
JK-260
CD-489
IR-051
JK-260
LB-095
MS-200
PD-213
SE-141
NAME
FUNCTION
VC-351
CCD IMAGER
REMOTE COMMANDER RECEIVER, MIC IN
JACK
EVF RELAY
MS CONNECTOR, INDICATOR
LCD RGB DRIVE, BACKLIGHT
PITCH/YAW SENSOR AMP
TIMING GENERATOR, S/H, AGC, A/D CONV., LENS DRIVE, EVR,
MPEG MOVIE/DIGITAL STILL/CAMERA PROCESS, 16Mbit SDRAM, BUFFER,
HI/DIGITAL STILL CONTROL, 32Mbit FLASH, 16Mbit SDRAM, DV SIGNAL PROCESS,
DV INTERFACE, I/O, DRUM/CAPSTAN/LOADING DRIVE, CAMERA/MECHA CONTROL,
HI CONTROL, EVF VIDEO, AUDIO I/O, DC IN, CHARGE, DC/DC CONVERTER, CONNECTOR

Sony DCR-HC30 Specifications

General

Digital zoom	120 x
Optical zoom	10 x
Focal length range	2.3 - 23 mm
Total megapixels	0.8 MP
Focus	auto / manual
I/O ports	Audio In/Out, i.LINK (DV) In/Out, S-Video In/Out, USB Terminal, Video In/Out
Power requirements	AC-L25
Display diagonal	2.5 \
Display resolution	123200 pixels
Bundled software	Picture Package
Camera shutter speed	1/4-1/3500 s
Playback zoom (max)	Yes x
Minimum illumination	5 lx
Battery type	NP-FP50
Video formats supported	DV

Weight and Dimensions

Depth	112 mm
Width	50 mm
Height	86 mm
Weight	380 g
