Sony DCR-HC30 User Manual

5-9
DCR-HC30/HC30E
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST

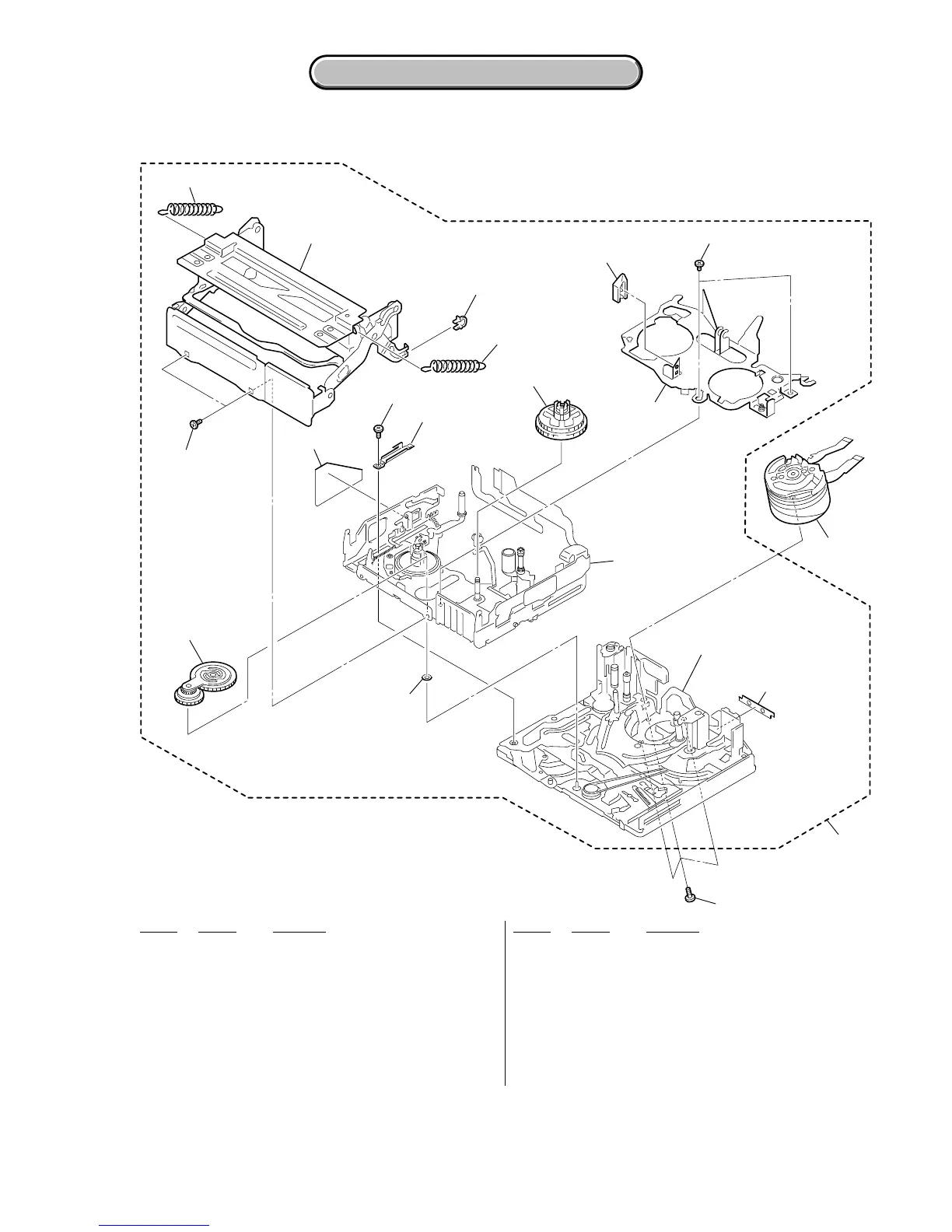

5-1-7. OVERALL (MECHANISM DECK-Z200)
Ref. No. Part No. Description Ref. No. Part No. Description
ns : not supplied
701
702
703
704
705
707
707
708
709
710
711
712
713
714
706
M901
715
Mechanical chassis
block assembly
(See page 5-11)
LS chassis block assembly
(See page 5-10)
716
701 X-3952-938-7 GEAR ASSY, GOOSENECK
702 3-075-097-11 SCREW (M1.4X1.4), SPECIAL HEAD
703 3-079-206-02 SPRING (POP UP S), EXTENSION
704 X-3952-939-8 COMPARTMENT ASSY, CASSETTE
705 3-079-367-01 DAMPER, CASSETTE COMPARTMENT
706 3-079-215-02 SPRING (POP UP T), EXTENSION
707 3-085-330-01 SCREW, SPECIAL
708 3-080-545-01 COVER, SENSOR S
709 3-079-364-01 RETAINER, LS GUIDE
710 X-3952-937-1 TABLE ASSY, T REEL
711 3-079-366-01 RELEASE, REEL LOCK
712 X-3953-257-4 PLATE ASSY,RETAINER
713 A-7095-947-A MD (Z200) SUB ASSY
714 3-079-741-02 SCREW,DRUM FIXING
715 3-748-682-01 WASHER, T
716 3-087-881-01 SHEET, ADHESIVE, FLEXIBLE
M901 A-7048-994-A DRUM (DEH-30B-R) (SERVICE)
Ver 1.2 2004. 07

Sony DCR-HC30 Specifications

General

Digital zoom	120 x
Optical zoom	10 x
Focal length range	2.3 - 23 mm
Total megapixels	0.8 MP
Focus	auto / manual
I/O ports	Audio In/Out, i.LINK (DV) In/Out, S-Video In/Out, USB Terminal, Video In/Out
Power requirements	AC-L25
Display diagonal	2.5 \
Display resolution	123200 pixels
Bundled software	Picture Package
Camera shutter speed	1/4-1/3500 s
Playback zoom (max)	Yes x
Minimum illumination	5 lx
Battery type	NP-FP50
Video formats supported	DV

Weight and Dimensions

Depth	112 mm
Width	50 mm
Height	86 mm
Weight	380 g
