Sony DCR-HC30 User Manual

5-3
DCR-HC30/HC30E

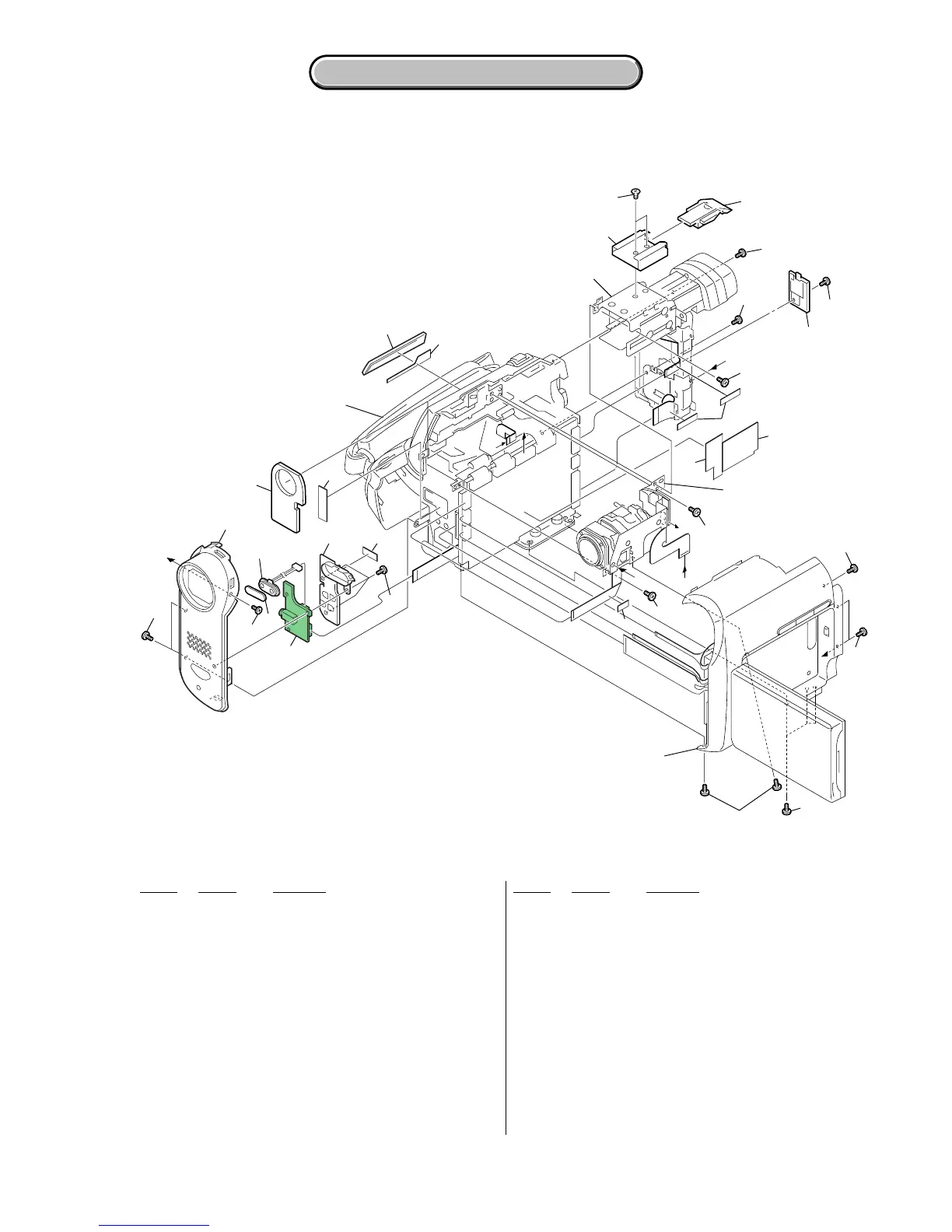

5-1. EXPLODED VIEWS
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
5-1-1. OVERALL SECTION
Ref. No. Part No. Description Ref. No. Part No. Description
ns : not supplied
1 3-057-082-21 SCREW (M1.7), P2
2 A-7112-122-A IR-051 BOARD, COMPLETE
3 X-3954-090-1 PANEL ASSY, F (SILVER) (HC30:J)
3 X-3954-091-1 PANEL ASSY, F (ORANGE) (HC30:J)
3 X-3954-092-1 PANEL ASSY, F (GREEN) (HC30:J)
3 X-3954-093-1 PANEL ASSY, F (BLUE) (HC30:J)
3 X-3954-094-1 PANEL ASSY, F (SILVER) (EXCEPT HC30:J)
3 X-3954-095-1 PANEL ASSY, F (GREEN) (EXCEPT HC30:J)
3 X-3954-096-1 PANEL ASSY, F (ORANGE) (EXCEPT HC30:J)
3 X-3954-097-1 PANEL ASSY, F (BLUE) (EXCEPT HC30:J)
4 3-089-771-01 CUSHION, MICROPHONE
5 X-3954-215-1 RETAINER ASSY, IR
6 3-078-890-11 SCREW, TAPPING
7 3-089-916-01 CUSHION (F2)
8 3-089-542-01 COVER, SHOE
9 3-089-547-02 COVER (L), JACK
10 3-089-546-11 SHEET, JACK (HC30:J)
10 3-089-546-21 SHEET, JACK (EXCEPT HC30:J)
11 3-941-343-21 TAPE (A)
12 3-084-523-11 SCREW (M1.7 EG LOCK (BLACK))
13 3-089-541-01 LID, CPC
14 3-091-102-01 SHEET, VC ELECTROSTATIC
15 3-091-481-31 SCREW
16 3-090-091-01 SHOE, COLD
17 3-067-187-21 SCREW SPECIAL
18 3-089-562-01 LABEL, FUSE REPLACEMENT CAUTION
(US/CND)
MIC901 1-542-513-21 MICROPHONE
VC-351
A
A
B
D
D
C
B
C
1
5
3
1
6
2
4
15
1
15
8
9
10
12
15
12
12
15
1
13
15
Cabinet (R) section
(See page 5-4)
Cabinet (L) section
(See page 5-8)
7
BAT. EVF section
(See page 5-6)
Lens section
(See page 5-7)
11
ns
ns
MIC901
ns
16
17
14
18
Ver 1.2 2004. 07

Sony DCR-HC30 Specifications

General

Digital zoom	120 x
Optical zoom	10 x
Focal length range	2.3 - 23 mm
Total megapixels	0.8 MP
Focus	auto / manual
I/O ports	Audio In/Out, i.LINK (DV) In/Out, S-Video In/Out, USB Terminal, Video In/Out
Power requirements	AC-L25
Display diagonal	2.5 \
Display resolution	123200 pixels
Bundled software	Picture Package
Camera shutter speed	1/4-1/3500 s
Playback zoom (max)	Yes x
Minimum illumination	5 lx
Battery type	NP-FP50
Video formats supported	DV

Weight and Dimensions

Depth	112 mm
Width	50 mm
Height	86 mm
Weight	380 g
