5-11
DCR-HC30/HC30E
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST

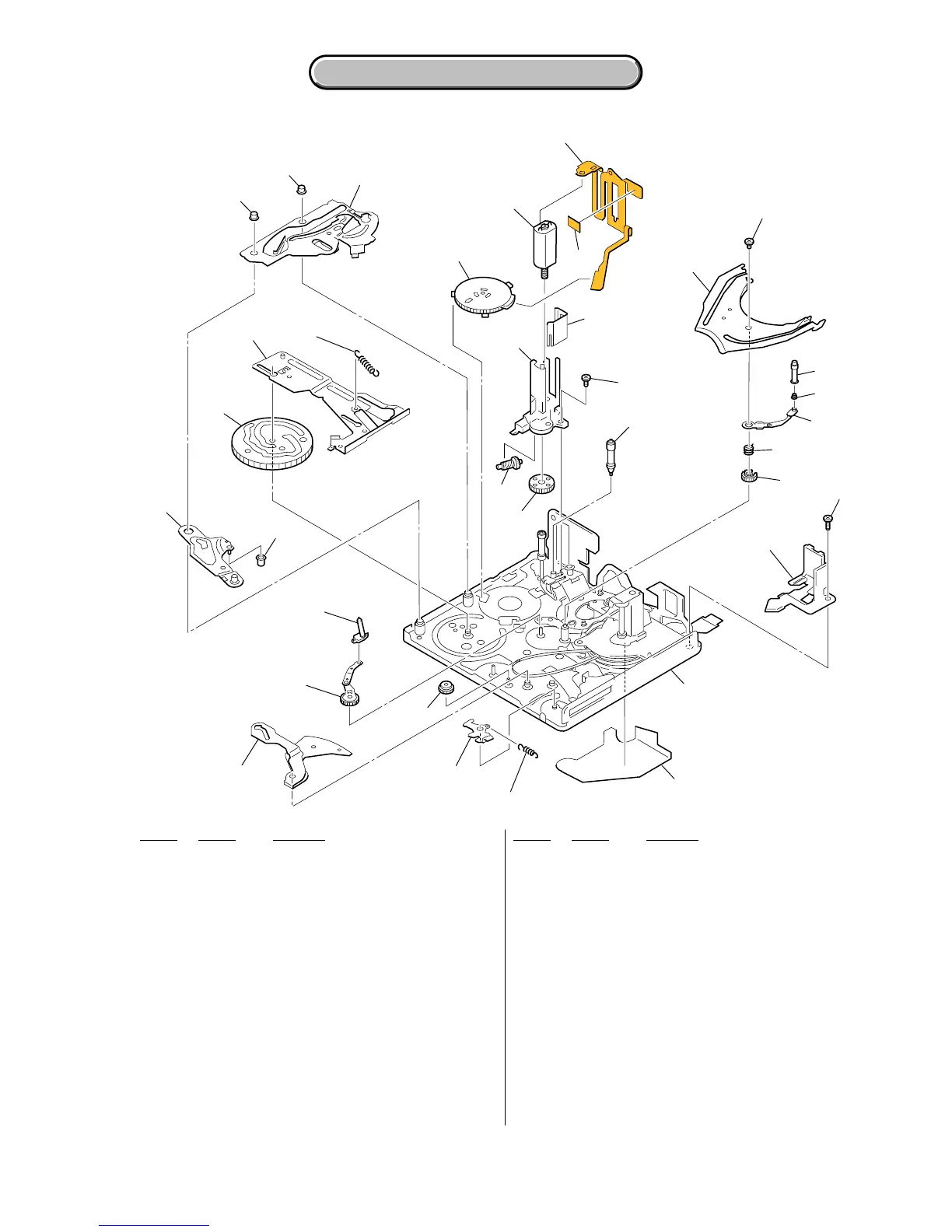

5-1-9. MECHANICAL CHASSIS BLOCK ASSEMBLY
Ref. No. Part No. Description Ref. No. Part No. Description
ns : not supplied
ns
ns
M902
S902
801
802
803
804
805
828
806
807
808
809
810
811
812
813
814
815
816
817
818
819
820
827
821
826
825
829
830
822
823
824
816
801 3-079-314-01 SPRING (EJ), EXTENSION
802 3-079-327-01 ARM, EJ
803 3-079-323-01 GEAR, CONVERSION
804 3-079-324-03 ARM, GL DRIVING
805 X-3952-928-1 GL (S) ASSY
806 3-079-315-01 ROLLER (S1), LS GUIDE
807 X-3952-925-1 ARM ASSY, LS
808 3-079-320-01 ROLLER, LS
809 3-079-316-01 ROLLER (S2), LS GUIDE
810 3-079-319-01 GEAR, CAM
811 X-3952-941-1 SLIDER ASSY (N), M
812 3-079-321-02 SPRING (PINCH), EXTENSION
813 X-3952-940-2 PLATE ASSY (N), TG2 CAM
814 3-079-312-01 SHIELD, MOTOR
815 3-079-307-02 HOLDER, MOTOR
816 3-085-330-01 SCREW, SPECIAL
817 3-079-308-01 SHAFT, WORM
818 3-079-309-01 GEAR, DECELERATION
819 X-3952-942-2 ROLLER ASSY, TG3
820 3-079-325-01 RAIL, GUIDE
821 3-079-295-02 SPRING, TG5
822 1-677-049-11 FP-228 FLEXIBLE BOARD (DEW SENSOR)
823 3-079-328-01 SCREW (M1.4), SPECIAL HEAD
824 3-079-326-04 SUPPORT, TG7
825 3-079-301-01 SPRING (GLT), TORSION
826 3-079-298-01 GEAR (T), GL
827 1-686-798-11 FP-467 FLEXIBLE BOARD
828 X-3952-927-4 COASTER (S) ASSY
829 X-3952-930-3 ROLLER ASSY, TG5
830 X-3952-929-7 COASTER (T) ASSY
M902 A-7095-396-A MOTOR BLOCK ASSY, L (LOARDING)
S902 1-477-679-11 ROTARY, ENCODER (MODE SWITCH)

Sony DCR-HC30 Specifications

General

Digital zoom	120 x
Optical zoom	10 x
Focal length range	2.3 - 23 mm
Total megapixels	0.8 MP
Focus	auto / manual
I/O ports	Audio In/Out, i.LINK (DV) In/Out, S-Video In/Out, USB Terminal, Video In/Out
Power requirements	AC-L25
Display diagonal	2.5 \
Display resolution	123200 pixels
Bundled software	Picture Package
Camera shutter speed	1/4-1/3500 s
Playback zoom (max)	Yes x
Minimum illumination	5 lx
Battery type	NP-FP50
Video formats supported	DV

Weight and Dimensions

Depth	112 mm
Width	50 mm
Height	86 mm
Weight	380 g
