Sony DCR-PC1000 User Manual

1-3
DCR-PC1000/PC1000E
ENGLISH JAPANESE
ENGLISH JAPANESE
4. DISCHARGING OF THE FLASHLIGHT POWER SUPPLY CAPACITOR
The power supply capacitor (C9001) of the flash unit (FL11800) is charged up to the maximum 300V potential.
There is a danger of electric shock by this high voltage when the capacitor is handled by hand. The electric shock is caused by the charged
voltage which is kept without discharging when the main power of the unit is simply turned off. Therefore, the remaining voltage must be
discharged as described below.

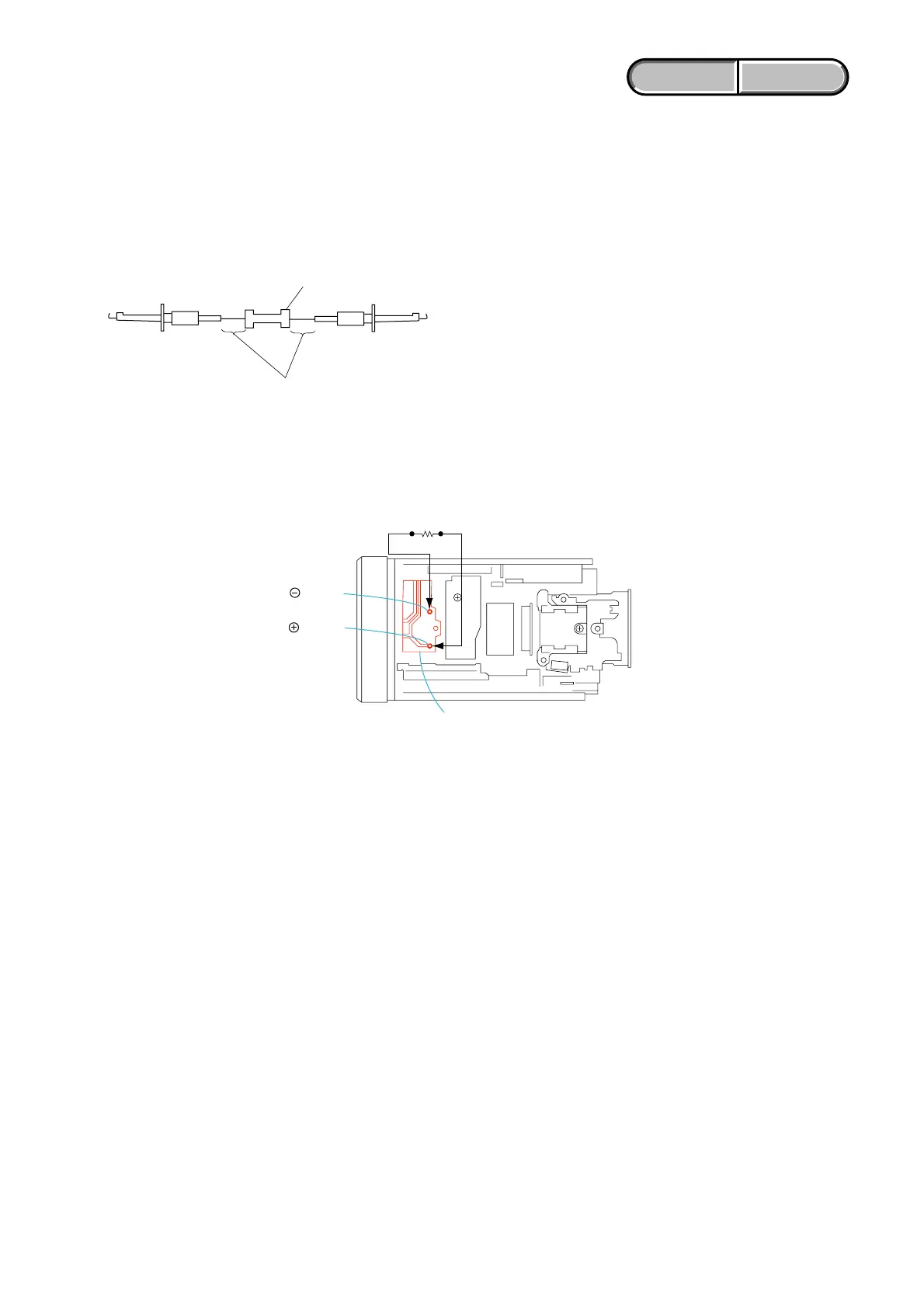

4-1. DISCHARGING THE CAPACITORPREPARING THE SHORT JIG
To preparing the short jig. a small clip is attached to each end of a resistor of 1kΩ/1W (1-215-869-119)
Wrap insulating tape fully around the reads of the resistor to prevent electric shock.
4-2. DISCHARGING THE CAPACITOR
1 Remove the power supply (Battery and AC power adaptor).
2 Remove the TB cabinet assembly.
3 Remove the TU cabinet assembly.
4 Short-circuit between (+) and (–) terminal of the capacitor (C9001) with short jig about 10 seconds.
1 k Ω /1 W
Wrap insulating tape
FL11800
Short jig (
1k Ω /1W)
Hole of
terminal
Hole of terminal

Sony DCR-PC1000 Specifications

General

Fader	Wipe, overlap, white, random, monotone, mosaic, black
I/O ports	Audio In Audio Out USB Video In Video Out
Cable type	A/V, USB
Flash memory	16 MB
Horizontal resolution	530 lines
Compatible operating systems	MS Windows XP, MS Windows 2000, MS Windows ME, MS Windows 98 SE, Apple MacOS X 10.1.5 ~
Sensor type	CMOS
Total megapixels	2.8 MP
Optical sensor size	1/6 \
Optical sensor resolution	790.000 pixels
Effective megapixels (movie)	0.67 MP
Display diagonal	2.7 \
Display resolution	123200 pixels
Bundled software	Drivers & Utilities, Sony Picture Package
Camera shutter speed	1/500 - 1/2 s
Built-in microphone	Yes
Battery type	Rechargeable
Operating temperature (T-T)	0 - 40 °C
Camcorder tape type	Mini-DV

Weight and Dimensions

Depth	102 mm
Width	54 mm
Height	117 mm
Weight	400 g
