1-2
DCR-PC1000/PC1000E
ENGLISH JAPANESE
ENGLISH JAPANESE
2. POWER SUPPLY DURING REPAIRS
In this unit, about 10 seconds after power is supplied to the battery terminal using the regulated power supply (8.4V), the power is shut off so
that the unit cannot operate.
This following two methods are available to prevent this. Take note of which to use during repairs.
Method 1.
Use the AC power adaptor.
Method 2.
Connect the servicing remote commander RM-95 (J-6082-053-B) to the LANC jack, and set the commander switch to the “ADJ” side.
3. TO TAKE OUT A CASSETTE WHEN NOT EJECT (FORCE EJECT)
1 Remove the TB cabinet assembly, TU cabinet assembly.
2 Remove the cabinet (B) assembly.
3 Remove the cabinet (R) assembly.
4 Remove the front block assembly.
5 Remove the cabinet (battery).
6 Remove the control switch block (FK11800).
7 Remove the strob assembly.
8 Remove the lens assembly.
9 Remove the EVF assembly.
0 Remove the VC-398 board.
qa Remove the mechanism deck, MD chassis assembly.

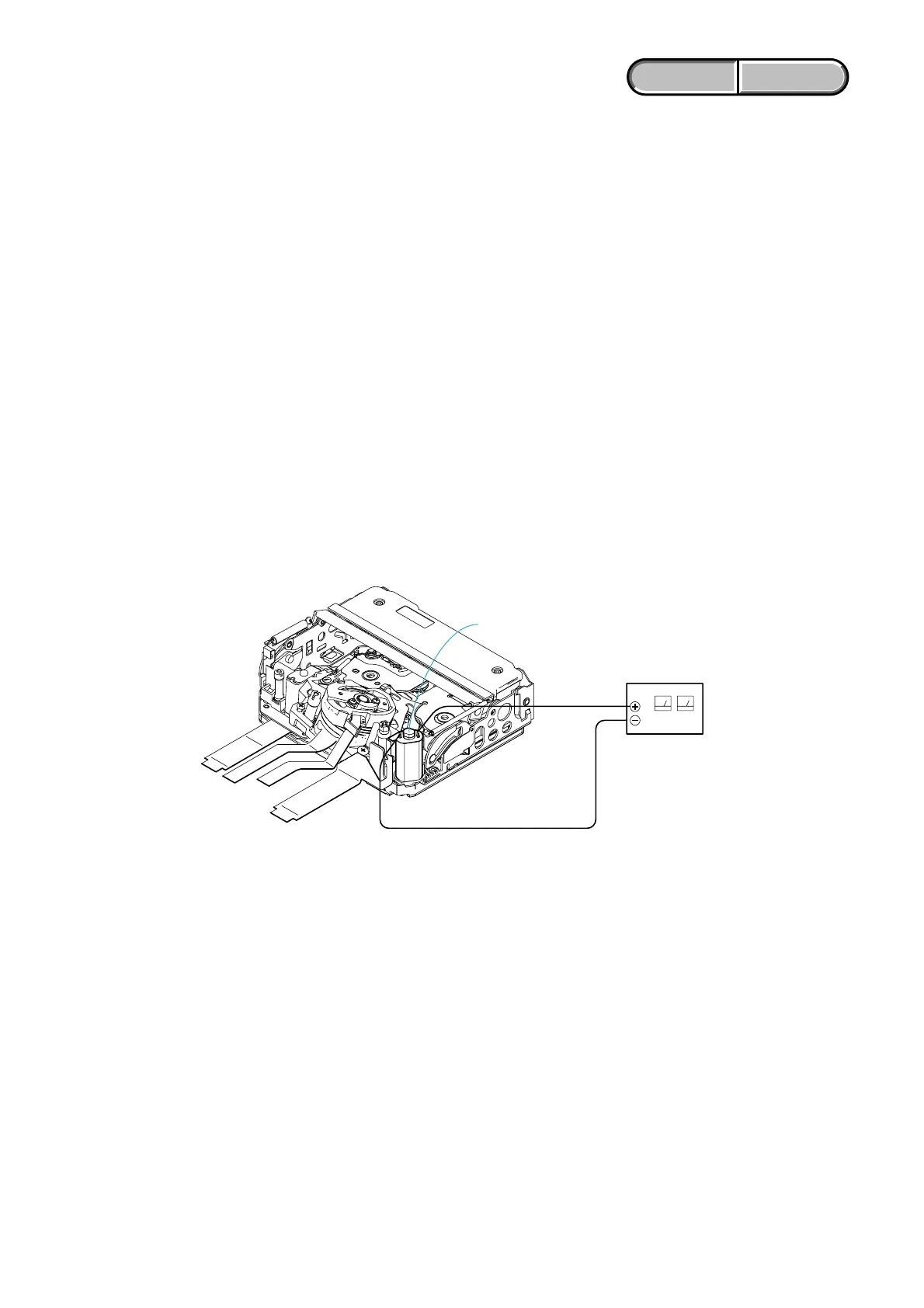

qs Supply +4.5V from the DC power supply to the loading motor and unload with pressing the cassette compartment.
Loading motor
DC power suppl
y
(+ 4.5Vdc)

Sony DCR-PC1000 Specifications

General

Fader	Wipe, overlap, white, random, monotone, mosaic, black
I/O ports	Audio In Audio Out USB Video In Video Out
Cable type	A/V, USB
Flash memory	16 MB
Horizontal resolution	530 lines
Compatible operating systems	MS Windows XP, MS Windows 2000, MS Windows ME, MS Windows 98 SE, Apple MacOS X 10.1.5 ~
Sensor type	CMOS
Total megapixels	2.8 MP
Optical sensor size	1/6 \
Optical sensor resolution	790.000 pixels
Effective megapixels (movie)	0.67 MP
Display diagonal	2.7 \
Display resolution	123200 pixels
Bundled software	Drivers & Utilities, Sony Picture Package
Camera shutter speed	1/500 - 1/2 s
Built-in microphone	Yes
Battery type	Rechargeable
Operating temperature (T-T)	0 - 40 °C
Camcorder tape type	Mini-DV

Weight and Dimensions

Depth	102 mm
Width	54 mm
Height	117 mm
Weight	400 g
