DCR-PC1000/PC1000E
4-3. PRINTED WIRING BOARDS
4-3. PRINTED WIRING BOARDS

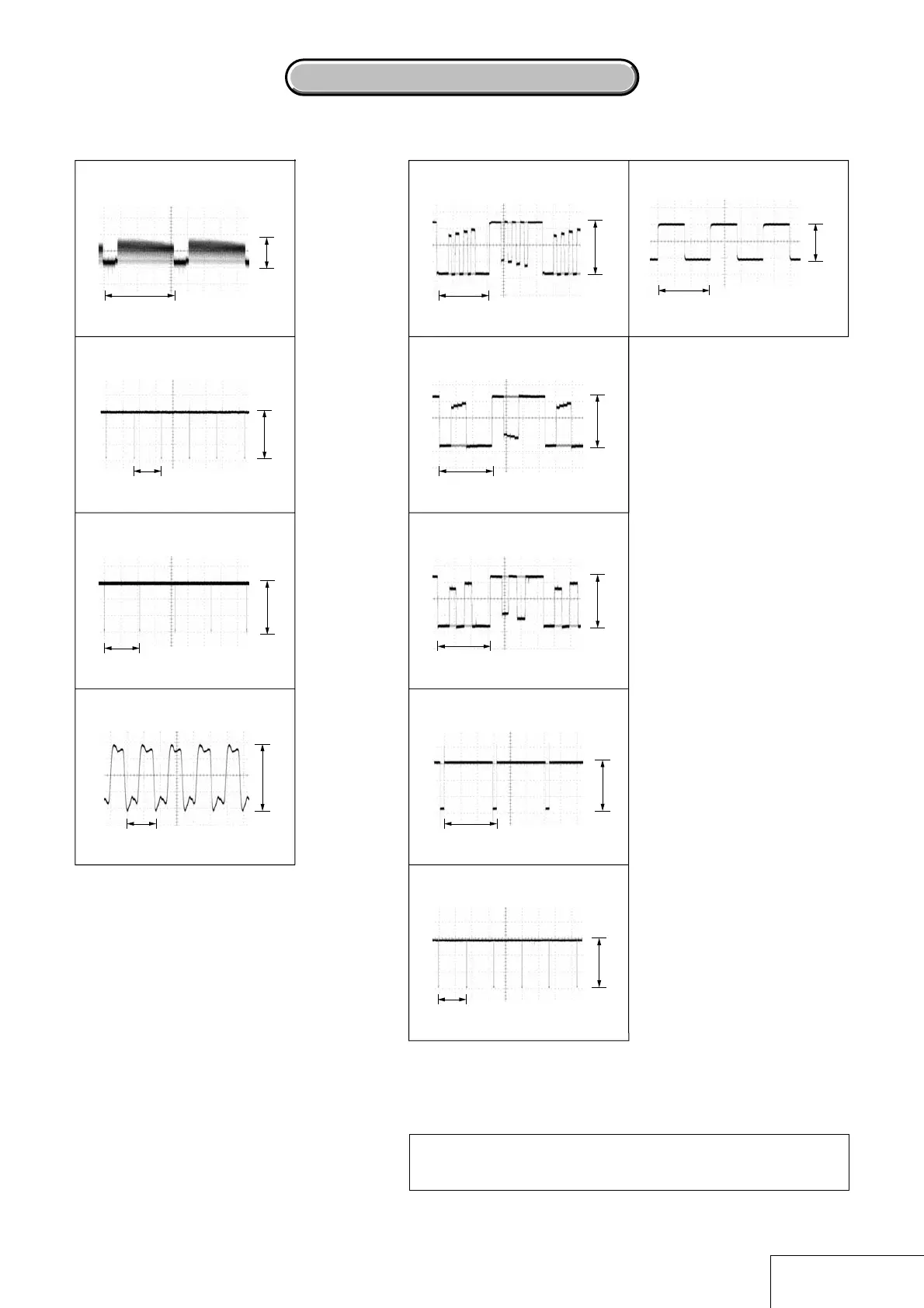

4-4. WAVEFORMS
CD-569/PD-252
CD-569 BOARD
42.8 us
83 mVp-p
1 IC2001, IC2002, IC2003 3,5
16.7 ms
2.8 Vp-p
2 IC2001, IC2002, IC2003 qa
42.8 us
2.8 Vp-p
3 IC2001, IC2002, IC2003 qs
34.7 ns
3.9 Vp-p
4 IC2001, IC2002, IC2003 qd
PD-252 BOARD
H
3.1 Vp-p
1 IC7501 wf
H
3.1 Vp-p
2 IC7501 wd
H
3.1 Vp-p
3 IC7501 ws
H
2.8 Vp-p
4 IC7501 ts
V
2.8 Vp-p
5 IC7501 2
127 us
4.2 Vp-p
6 C7520
Waveforms of the VC-398 board are not shown.
Page 4-98 is not shown.

Sony DCR-PC1000 Specifications

General

Fader	Wipe, overlap, white, random, monotone, mosaic, black
I/O ports	Audio In Audio Out USB Video In Video Out
Cable type	A/V, USB
Flash memory	16 MB
Horizontal resolution	530 lines
Compatible operating systems	MS Windows XP, MS Windows 2000, MS Windows ME, MS Windows 98 SE, Apple MacOS X 10.1.5 ~
Sensor type	CMOS
Total megapixels	2.8 MP
Optical sensor size	1/6 \
Optical sensor resolution	790.000 pixels
Effective megapixels (movie)	0.67 MP
Display diagonal	2.7 \
Display resolution	123200 pixels
Bundled software	Drivers & Utilities, Sony Picture Package
Camera shutter speed	1/500 - 1/2 s
Built-in microphone	Yes
Battery type	Rechargeable
Operating temperature (T-T)	0 - 40 °C
Camcorder tape type	Mini-DV

Weight and Dimensions

Depth	102 mm
Width	54 mm
Height	117 mm
Weight	400 g
