5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DCR-PC1000/PC1000E

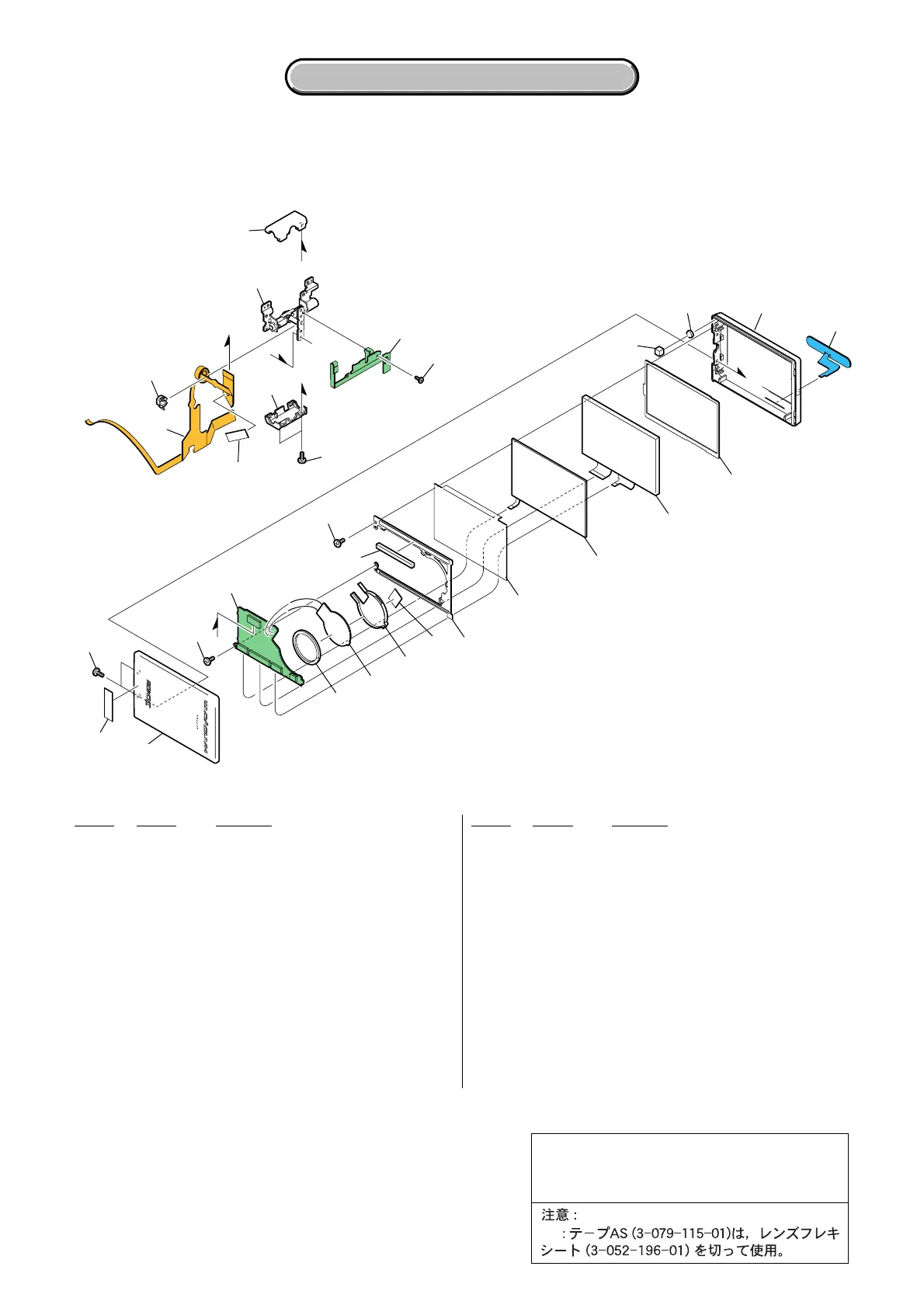

5-1-4. LCD SECTION
Ref. No. Part No. Description Ref. No. Part No. Description
151 2-584-363-01 CABINET (C), P (BLACK)
151 2-584-363-11 CABINET (C), P (SILVER)
152 2-588-455-01 CUSHION, HINGE
153 3-087-376-01 SCREW (M1.7), EG GRIP, P2
154 3-989-735-01 SCREW (M1.7), LOCK ACE, P2
155 A-1099-861-A PD-252 BOARD, COMPLETE
156 2-584-366-01 CUSHION, SPEAKER
158 2-584-311-01 BASE, SPEAKER
159 3-080-204-01 SCREW, TAPPING, P2
160 2-584-361-01 COVER (M), HINGE
161 1-865-889-11 FP-168 FLEXIBLE BOARD
162 2-588-000-01 GUARD, FPC
163 X-2050-243-1 HINGE ASSY
164 2-584-360-11 COVER (C), HINGE
165 A-1099-867-A FP-220 FLEXIBLE BOARD, COMPLETE
166 3-389-523-22 SCREW (LOCK ACE)
167 1-478-984-11 KEY BLOCK, CONTROL (SB10600)
168 2-584-362-01 CABINET (M), P (J)
168 2-584-362-11 CABINET (M), P (EXCEPT J)
169 1-471-278-11 MAGNET
170 2-584-365-01 SHEET, PANEL CUSHION
171 2-584-354-01 SPACER, MG
* 172 CAUTION TAPE AS
173 2-584-308-01 TAPE (SP), DOUBLE STICK
LCD901 A-1083-763-A TP BLOCK ASSY 27STGU
LED901 1-478-929-11 BLOCK, LIGHT GUIDE PLATE (2.7)
SP901 1-825-997-11 BUZZER, PIEZOELECTRIC
ns : not supplied
154
151
155
156
162
163
158
173
170
171
154
159
172
164
165
167
168169
166
160
161
153
152
LCD901
LED901
SP901
ns
ns
ns
(SIZE : 9mm × 28mm)
B
B
C
C
A
A
CAUTION:
For the part of 172: TAPE AS (3-079-115-01) ,
cut SHEET, LENS FLEXIBLE (3-052-196-01)
into the desired length and use it.
172
