2-3
DSC-F77/FX77

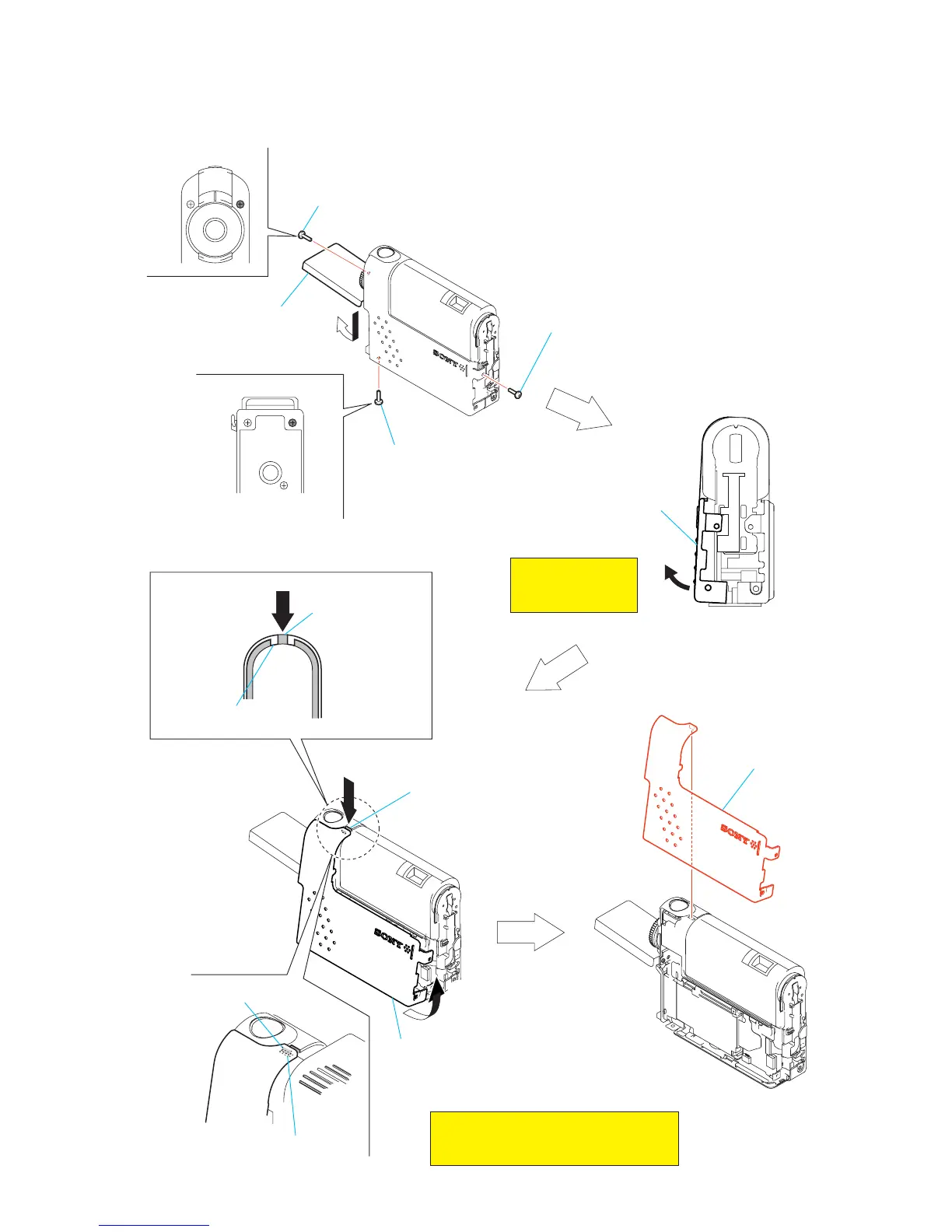

2-3. CABINET (FRONT)
4 Open the BT lid
in the direction of
arrow A.
5 Move the lower part of the
cabinet (front) in the direction
of arrow B.
6 Pressing the rib (inner cabinet (rear)) in the
direction of arrow C, disengage the claw with
holding up the cabinet (front) a little in the
direction of arrow D.
Rib
(inner cabinet (rear))
1 Screw (M1.7)
2 Screw
(M1.7)
3 Screw (M1.7)
Claw (cabinet (front))
Hole
(inner cabinet (rear))
Claw
(cabinet (front))
Front Rear
7 Cabinet (front)
Rib
(inner cabinet (rear))
-Bottom view-
-Side view-
Rear
-Side view-
C
D
B
A
Note: Do not move
that part too far.
Note: Be careful not to perform it by force,
or the cabinet (front) may be distorted.
To Next Page
