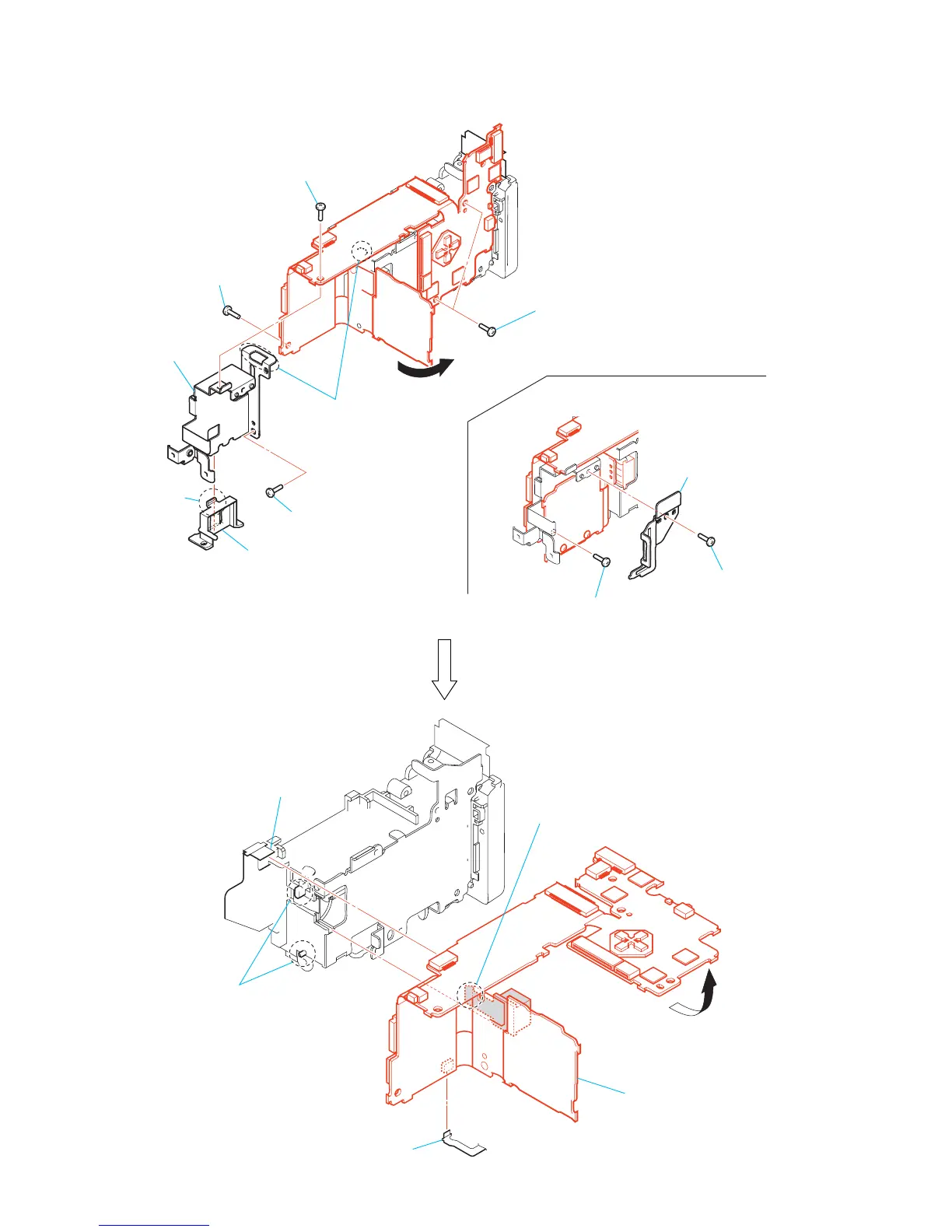

2-8
DSC-F77/FX77
2-11.
SY-81 BO
ARD
5
Claw
0
Claw
6
Connector holder
4
1
Screw (M1.7)
7
Screw (M1.7)
qs
T
wo screws (M1.7)
qa
Main frame
8
Screw (M1.7)
9
Screw (M1.7)
2
Screw (M1.7)
3
LCD frame
qd
FP-586 flexible board
(CN401)
qf
FP-587 board
(CN601)
qg
T
wo bosses
qh
Claw
qj
qk
SY
-81board
14
16
Table of Contents
Default Chapter
2
Specifications
2
Table of Contents
4
1 Service Note
5
Note for Repair
5
Discharging of the ST-78 Board's
5
Preparing the Short Jig
5
Discharging the Capacitor
5
Description on Self-Diagnosis Display
6
Disassembling the Hing Cover at Repairing
7
(Dsc-Fx77)
7
2 Disassembly
8
Hinge Cover (DSC-F77)
9
Hinge Cover, BT-14 Board (DSC-FX77)
9
Cabinet (Front)
10
Inner Cabinet (Front)
11
Lens Block Assembly
11
Cabinet (Rear) Block
12
Cabinet (Bottom) Assembly
13
Control Switch Block
13
Inner Cabinet (Rear), KK-29 Board
14
LCD Module
14
Board
14
Sy-81 Board
15
Lens Block
16
CD-415 Board, Optical Filter Block
16
Board
18
FP-585 Flexible Board Block
19
Flexible Boards Location
21
3 Block Diagrams
22
Overall Block Diagram (1/2)
22
Overall Block Diagram (2/2)
22
Power Block Diagram (1/2)
22
Power Block Diagram (2/2)
22
4 Printed Wiring Boards and Schematic Diagrams
27
Frame Schematic Diagram
27
Schematic Diagrams
29
Flash Drive)
32
Lens Position)
33
Control Switch Block (Md51200)
33
Fp-585 Flexible
34
Fp-586 Flexible
40
Printed Wiring Boards
40
Waveforms
41
Mounted Parts Location
43
5 Repair Parts List
46
Exploded Views
46
Overall Assembly (F77)
46
Overall Assembly (FX77)
46
Cabinet (Upper) Block Assembly
46
Lens Cabinet Assembly
46
Cabinet (Rear) Block Assembly
46
Electrical Parts List
46
Revision History
61
