2-4
DSC-F77/FX77

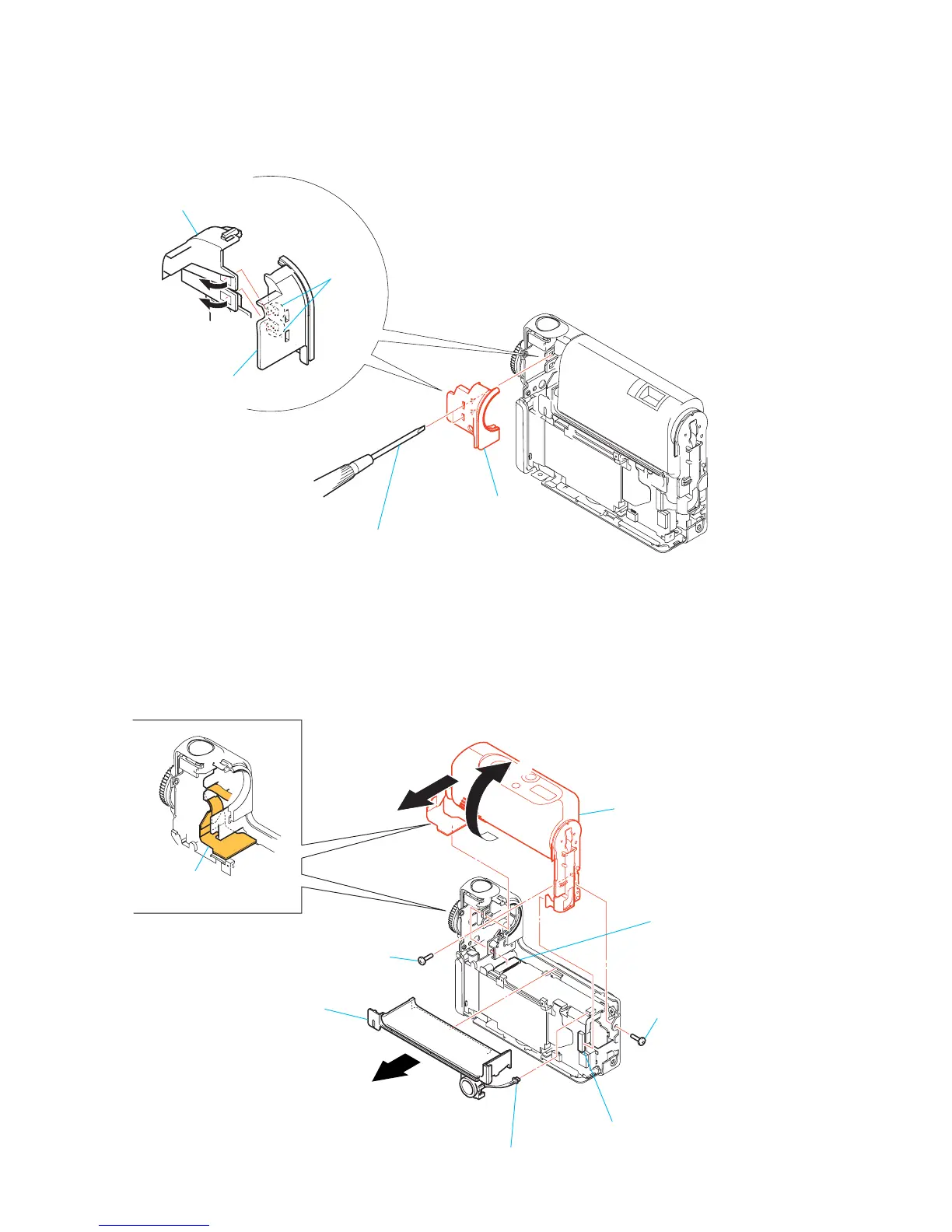

2-5. LENS BLOCK ASSEMBLY
0 Lens block assembly
6 Screw
(DIA. 1.7 × 4)
5 Screw
(M1.7)
FP-585
flexible board
1 Turn the lens block assembly
in the direction of arrow A.
9 Remove the lens block assembly
from inner cabinet section
in the direction of arrow B.
3 Connector (CN402)
7 Connector (CN351)
8 Connector (CN151)
4 Cabinet (upper)
2 Pull the cabinet (upper)
in the direction of arrow B.
B
A
B
2-4. INNER CABINET (FRONT)
2 Inner cabinet
(front)
Cabinet (front)
Two claws
Inner cabinet (rear)
1 Disengage two claws
of the inner cabinet (front) with
sticking a flat head driver or
something similar.
