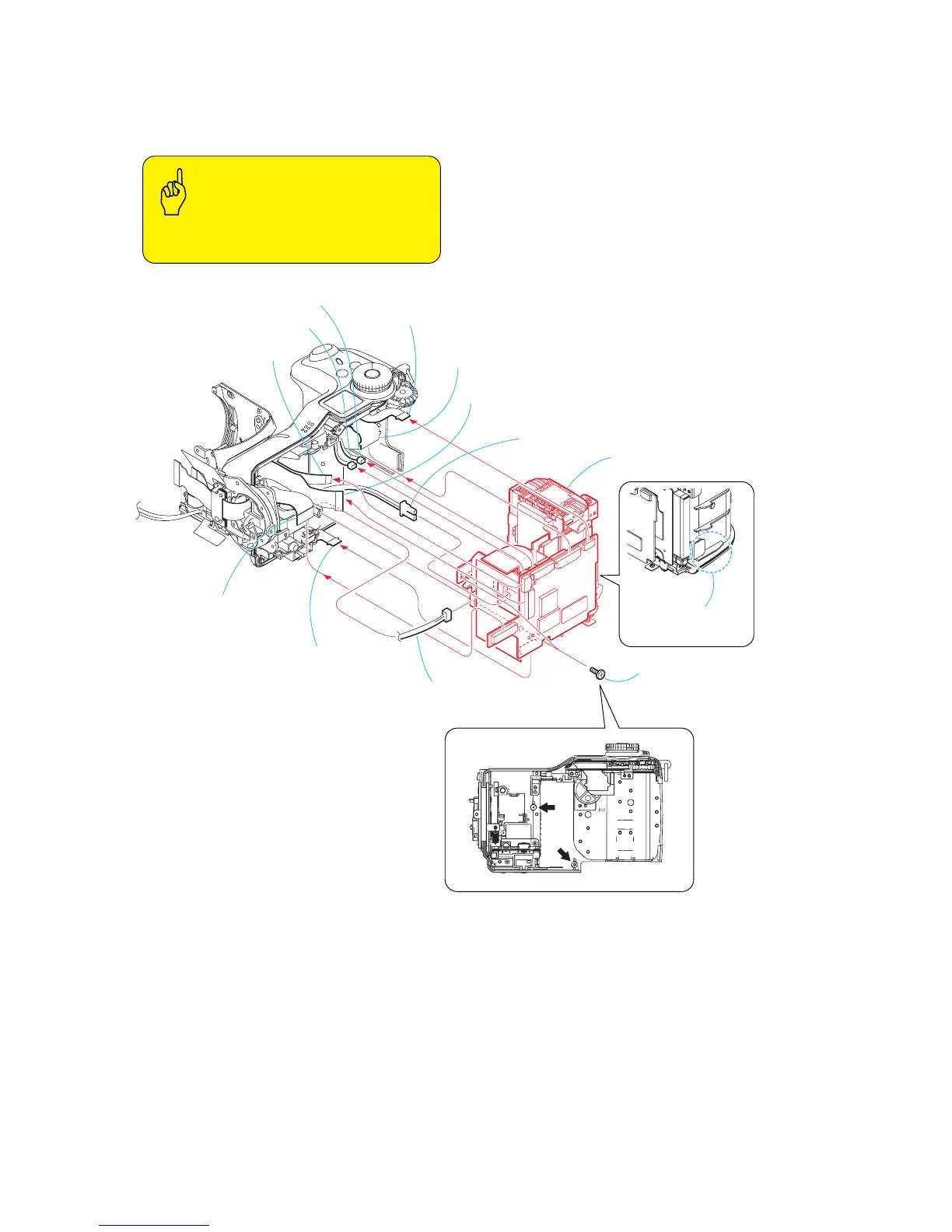

2-10
DSC-F828
6
Harness (microphone)
7
Harness (speaker)
qs
BTH section
q;
Harness (PT
-132)
1
FP-754 flexible board
(21P)
3
FP-747 flexible board
(51P)
2
FP-746 flexible board
(51P)
8
UA-003 board
(12P)
qa
Connector (3P)
4
Control switch block (top)
(12P)
9
T
wo
screws (M1.7
×
3),
lock ace
5
LCD module (26P)
Note: When installing, be careful not to pinch
the flexible board or harness during installation.
Caution
Use the groove on side
when installing it.
2-13.
BTH SECTION
183
