DSX-B700/B700W/B710D
21
Sony CONFIDENTIAL
For Authorized Servicer

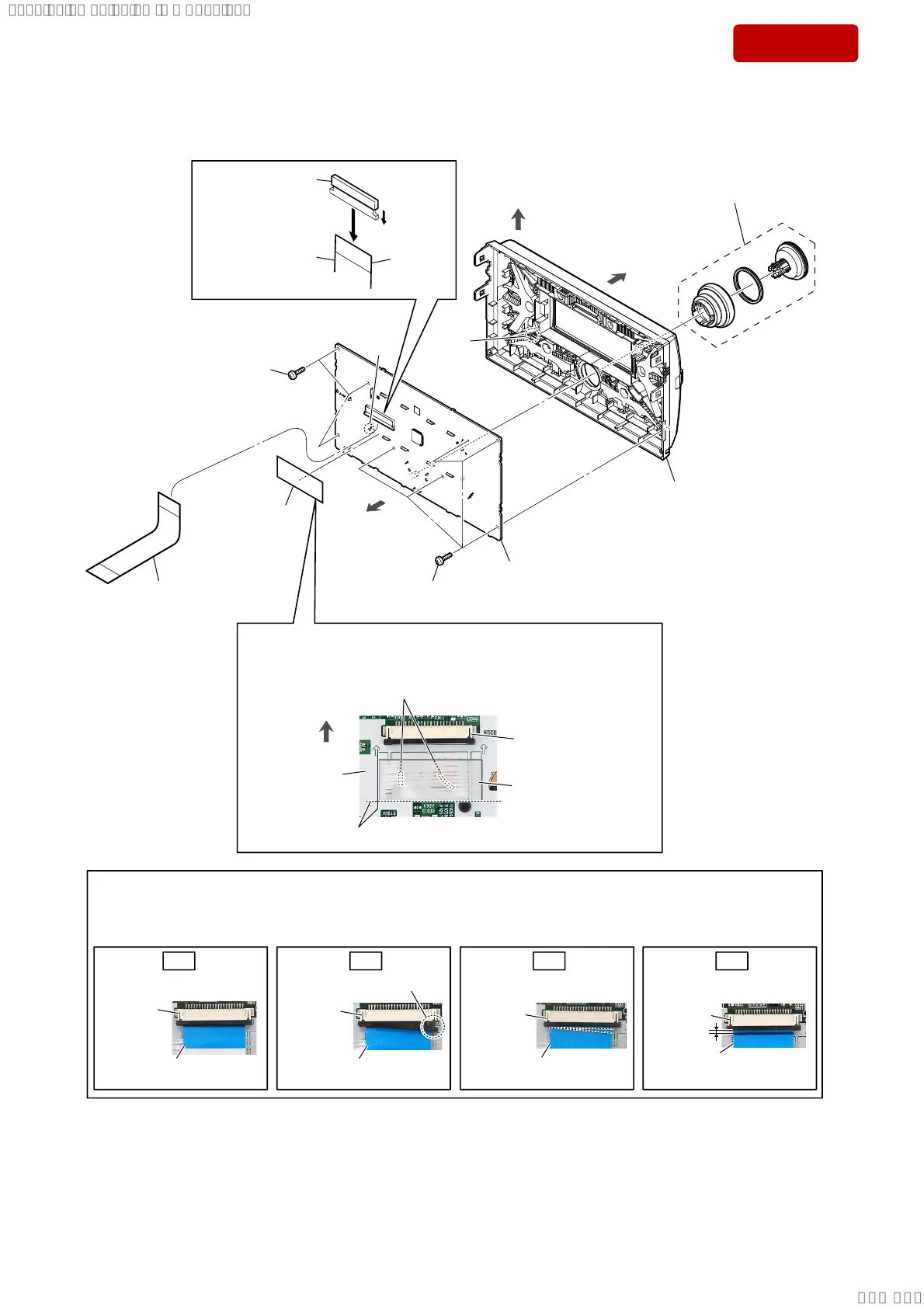

3-6. KNOB (VOL) ASSY, KEY BOARD, FRONT PANEL ASSY
connector (CN901)
KEY board
filament tape
(sub material)
guide line
– Rear view –
7 front panel assy
front side
5
five screws
(
B2 u 6
)
4
filament tape
(sub material)
Note 3:
Paste the filament tape (sub material) to prevent the cable flexible flat
(22 core) is damaged in touch with the two legs of bracket (LCD).
3DVWLQJSRVLWLRQRIWKHILODPHQWWDSHVXEPDWHULDO
OK
Connector is unlock.
Note 4:
When installing the cable flexible flat (22 core) to the connector (CN901) on the KEY board,
insert straight to the connector and lock a connector completely.
No slanting after insertion.
NG NG NG
cable flexible flat
(22 core)
cable flexible flat
(22 core)
cable flexible flat
(22 core)
cable flexible flat
(22 core)
connector
connector
connector
Cover the two legs of bracket (LCD).
1 knob (VOL) assy
Note 1:
When installing the knob (VOL) assy,
refer to “3-8. HOW TO INSTALL THE
KNOB (VOL) ASSY” on page 23.
5
three screws
(
B2 u 6
)
top side
rear side
top side
Insert straight into the interior. Insert at a slant.
cable flexible flat
(22 core)
6 KEY board
Note 2:
When installing the KEY board,
align the hole and boss.
+RZWRLQVWDOOWKHFDEOHIOH[LEOHIODWFRUH
connector
Insert only part way.
boss
hole
terminal
side
2
Unlock.
connector (CN901)
of the KEY board
3 cable flexible flat
(22 core)
SYSSET
2019/10/2421:43:03(GMT+09:00)
To Next Page
