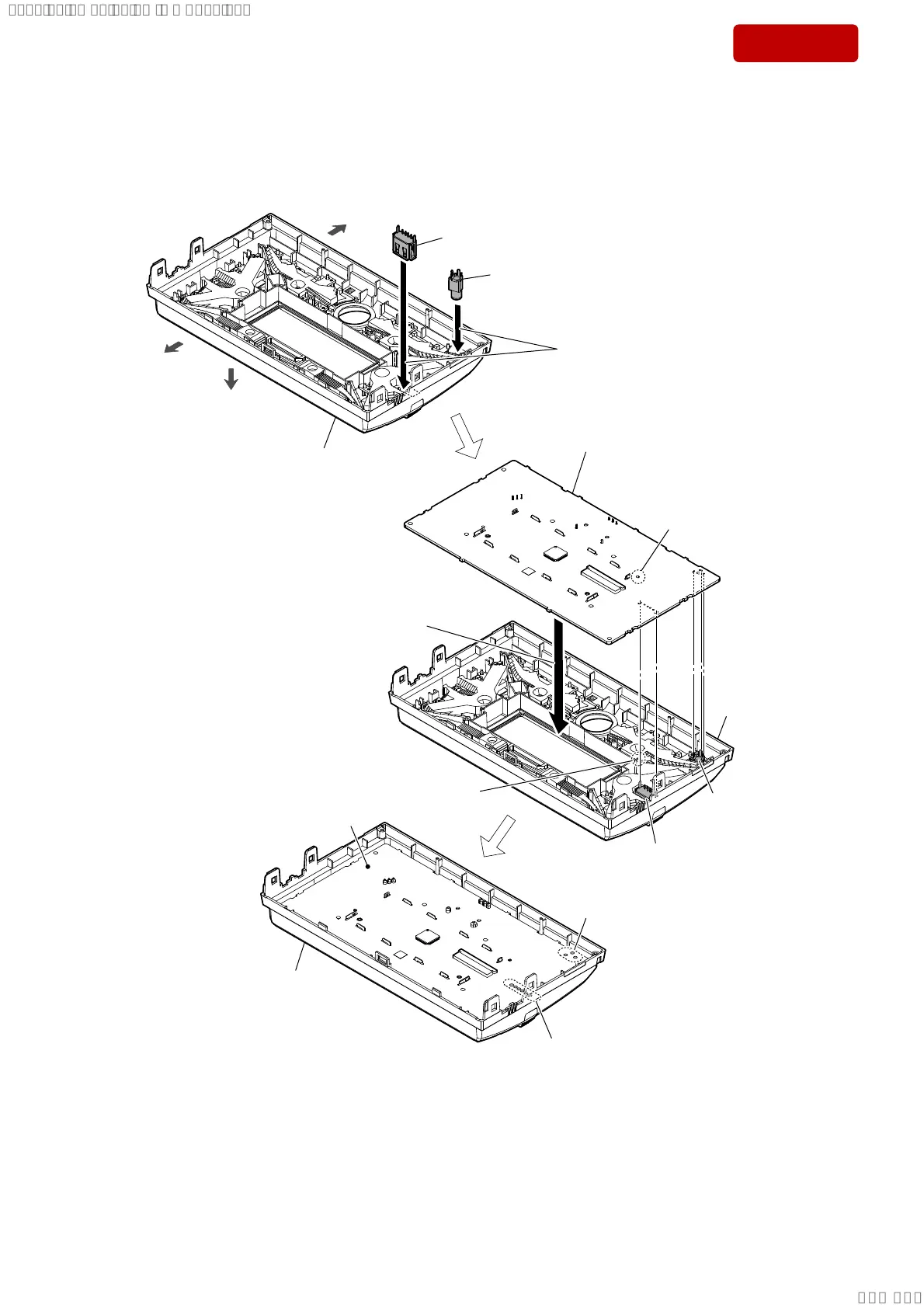

3-7. HOW TO INSTALL THE AUX JACK (J901) AND THE USB CONNECTOR (CN902)
front panel assy
AUX jack
(J901)
USB connector
(CN902)
front panel assy
front panel assy
KEY board
AUX jack
(J901)
USB connector
(CN902)
1 Insert the USB connector and AUX jack
into the front panel assy.
Attach in order from 1 to 4.
2 Place the KEY board on the front panel
assy and align the terminals of the USB
connector and AUX jack with the holes
in the KEY board.
3 Solder six terminals of
the USB connector.
Note 1:
To replace the USB connector and AUX jack requires alignment.
front side
top side
bottom side
4 Solder three terminals
of the AUX jack.
boss
hole
KEY board
Note 2:
When installing the KEY board,
align the hole and boss.
SYSSET
