Sony DSX-B710D Service Manual

48
DSX-B700/B700W/B710D
Sony CONFIDENTIAL
For Authorized Servicer
SECTION 6
EXPLODED VIEWS
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when or-
dering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.

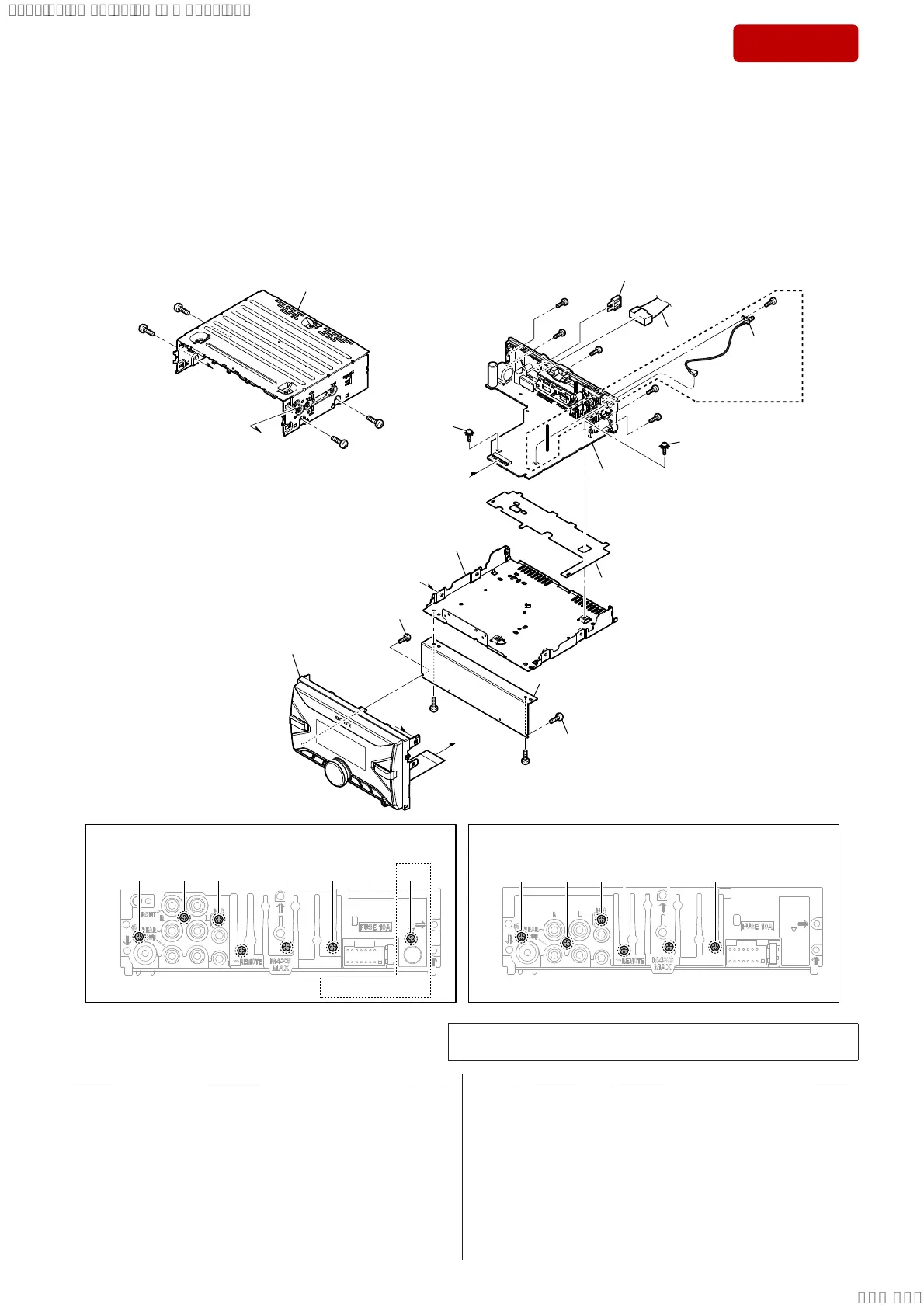

6-1. MAIN CHASSIS SECTION
#1
not supplied
1
1
#1
A
C
C
A
B
B
FU1
front panel section
(See page 49)
not supplied
#2
#2
#2
#2
#3
#3
#3
not supplied
not supplied
2
2
PW1
CNC1
#3
– Rear view –
#3
#3
(B700/B710D)
– Rear view –
(B700W)
(B700: US, CND)
#3
#3 #4#4
#3#3#3#4#4#3
#3 #3 #3
6FUHZIRUIL[LQJWKHKHDWVLQN 6FUHZIRUIL[LQJWKHKHDWVLQN
(B710D)
Note 1:
Heatsink and screws are included in Ref. No. 3.
Note 1:
Heatsink and screws are included in Ref. No. 3.
3
(See Note 2)
Note 2: When replacing the complete MAIN board (Ref. No. 3), make sure to
refer to “NOTE OF REPLACING THE MAIN BOARD” on page 5.
1 327572811 SCREW (+B, TT, P-TYPE, 2XL) (L = 6.0 mm)
2 441050401 SCREW (+PTT 2.6X6), GROUND POINT
3 A5004732A MAIN BOARD, COMPLETE (B700: US, CND)
(See Note 2)
3 A5004733A MAIN BOARD, COMPLETE (B700W) (See Note 2)
3 A5004734A MAIN BOARD, COMPLETE (B700: AEP, UK, E, AUS)
(See Note 2)
3 A5004735A MAIN BOARD, COMPLETE (B710D) (See Note 2)
CNC1 100185911 CABLE, CONNECTION (SMB) (DAB ANTENNA IN)
(B710D)
FU1 152322711 MINI FUSE (BLADE TYPE) (10 A/32 V)
PW1 184603312 CONNECTION CABLE (ISO) (Power supply leads)
(B700: AEP, UK/B710D)
PW1 184697912 CONNECTION CABLE, AUTOMOBILE
(Power supply leads)
(B700: US, CND, E, AUS/B700W)
#1 768579001 SCREW +PTT 2.6X4 (S)
#2 768579209 SCREW +PTT 2.6X6 (S)
#3 768579401 SCREW +PTT 2.6X10 (S)
#4 768513419 SCREW +P 2.6X8 TYPE2 NON-SLIT
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
• Color Indication of Appearance Parts Exam-
ple:
KNOB, BALANCE (WHITE) . . . (RED)
 
Parts Color Cabinet’s Color
Ver. 1.1
SYSSET
2019/10/2421:43:03(GMT+09:00)

Sony DSX-B710D Specifications

General

DIN size	2 DIN
Output power	55 W
RDS features	EON
Product color	Black
Volume control	Rotary
Disc types supported	No
Audio output channels	- channels
Equalizer bands quantity	10
Maximum power per channel	- W
Smartphone remote support	Yes
USB version	2.0
Bluetooth version	3.0
Bluetooth profiles	AAC, SBC
USB ports quantity	1
Supported radio bands	AM, DAB+, FM, LW
Audio formats supported	CUE, FLAC
Display type	LCD
Illumination color	Blue, Green, Red
Sustainability certificates	CE

Weight and Dimensions

Depth	177 mm
Width	178 mm
Height	100 mm
Weight	1000 g
