Sony DSX-B710D Service Manual

DSX-B700/B700W/B710D
4
Sony CONFIDENTIAL
For Authorized Servicer

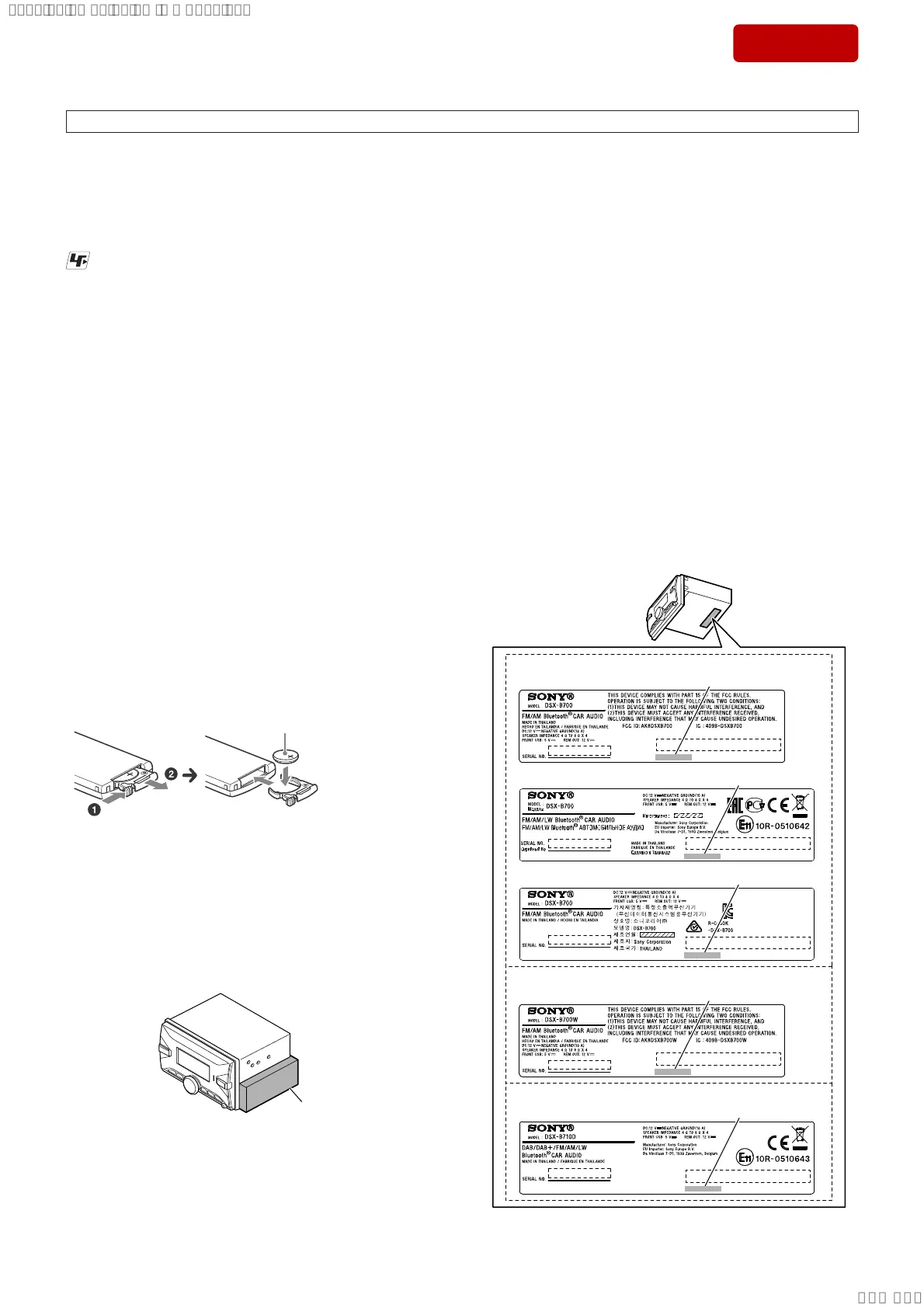

SECTION 1
SERVICING NOTES
The SERVICING NOTES contains important information for servicing. Be sure to read this section before repairing the unit.
UNLEADED SOLDER
Boards requiring use of unleaded solder are printed with the lead-
free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
• Unleaded solder melts at a temperature about 40 °C higher than
ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350 °C.
Caution: The printed pattern (copper foil) may peel away if the
heated tip is applied for too long, so be careful!
• Strong viscosity
Unleaded solder is more viscous (sticky, less prone to fl ow) than
ordinary solder so use caution not to let solder bridges occur
such as on IC pins, etc.
• Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.
REPLACING THE LITHIUM BATTERY (CR2025) OF THE
REMOTE COMMANDER
(B700: US, CND, E, AUS/B700W only)
When the battery becomes weak, the range of the
remote commander becomes shorter.
CAUTION
Danger of explosion if battery is incorrectly
replaced. Replace only with the same or equivalent
type.
Note on the lithium battery
Keep the lithium battery out of the reach of children.
Should the battery be swallowed, immediately consult
a doctor.
Lithium battery (CR2025)
+ side up
ABOUT INSTALLATION OF THIS UNIT FOR WORKING
Due to the structure of the unit, you cannot stably place it on fl at
surfaces.
Stabilize the unit by placing a stand, etc. under it that is suitable for
your work.
stand, etc.
DESTINATION ABBREVIATIONS
The following abbreviations for model destinations are used in this
service manual.
• Abbreviations
DSX-B700
US, CND : US, Canadian and Latin American area (Puerto Rico) models
AEP, UK : European area, East European area, Russia (CIS area)
and Middle East area (Israel) models
E, AUS : Middle East area (Except for Israel), South East Asian
area (Malaysia, Philippines), East Asian area (Korea),
Oceania area (Australian, New Zealand) and African
models
DSX-B700W
US, CND : US, Canadian and Latin American area (Puerto Rico) models
DSX-B710D
AEP, UK : European area, East European area and Middle East
area (Israel) models
MODEL IDENTIFICATION
Check the Part No. of the model number label pasted on the bottom
side of the main unit.
Note 1: Print content on the model number label may be changed in the mid-
way of production.
Note 2: Since the Part No. suffi x may be changed in the midway of produc-
tion, it is blank in the fi gure below.
US, CND
AEP, UK
DSX-B700
– Bottom view –
5-003-792-0[]
US, CND
DSX-B700W
AEP, UK
DSX-B710D
5-003-794-0[]
E, AUS
5-003-795-0[]
5-003-793-0[]
5-003-798-0[]
Ver. 1.1
SYSSET
2019/10/2421:43:03(GMT+09:00)
