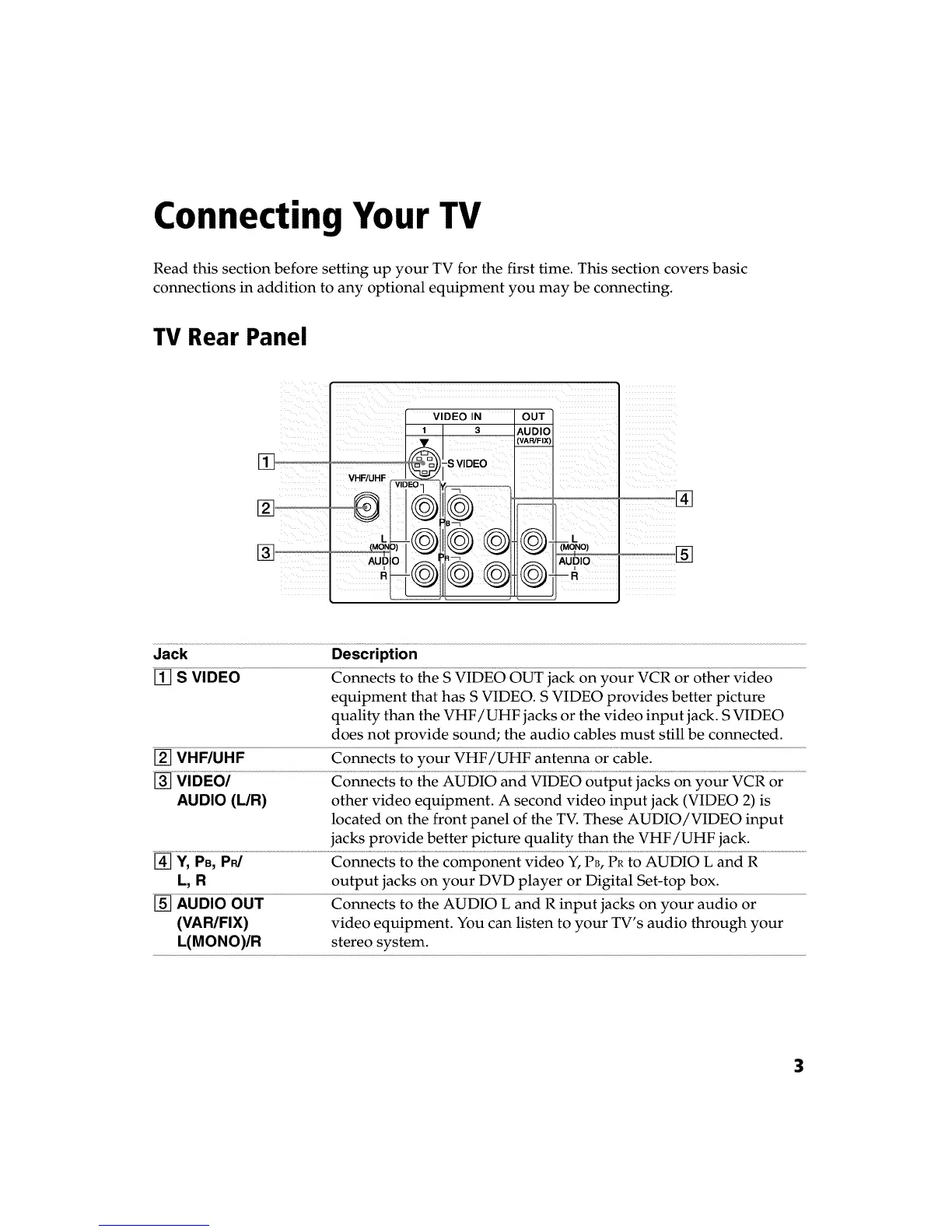

Connecting Your TV
Read this section before setting up your TV for the first time. This section covers basic
connections in addition to any optional equipment you may be connecting.
TV Rear Panel
r VIDEO IN OUT
1 3 AUDIO
-S VIDEO I
VHF/UHF _._D_I I
AUDIO
-R
Jack Description
[] S VIDEO Connects to the S VIDEO OUT jack on your VCR or other video
equipment that has S VIDEO. S VIDEO provides better picture
quality than the VHF/UHF jacks or the video input jack. S VIDEO
does not provide sound; the audio cables must still be connected.
[] VHF/UHF Connects to your VHF/UHF antenna or cable.
[] VIDEO/ Connects to the AUDIO and VIDEO output jacks on your VCR or
AUDIO (IJR) other video equipment. A second video input jack (VIDEO 2) is
located on the front panel of the TV. These AUDIO/VIDEO input
jacks provide better picture quality than the VHF/UHF jack.
[] Y, PB,PR/ Connects to the component video Y, PB, PRto AUDIO L and R
L, R output jacks on your DVD player or Digital Set-top box.
[] AUDIO OUT Connects to the AUDIO L and R input jacks on your audio or
(VAR/FIX) video equipment. You can listen to your TV's audio through your
L(MONO)/R stereo system.
