HBD-TZ215/TZ715
15

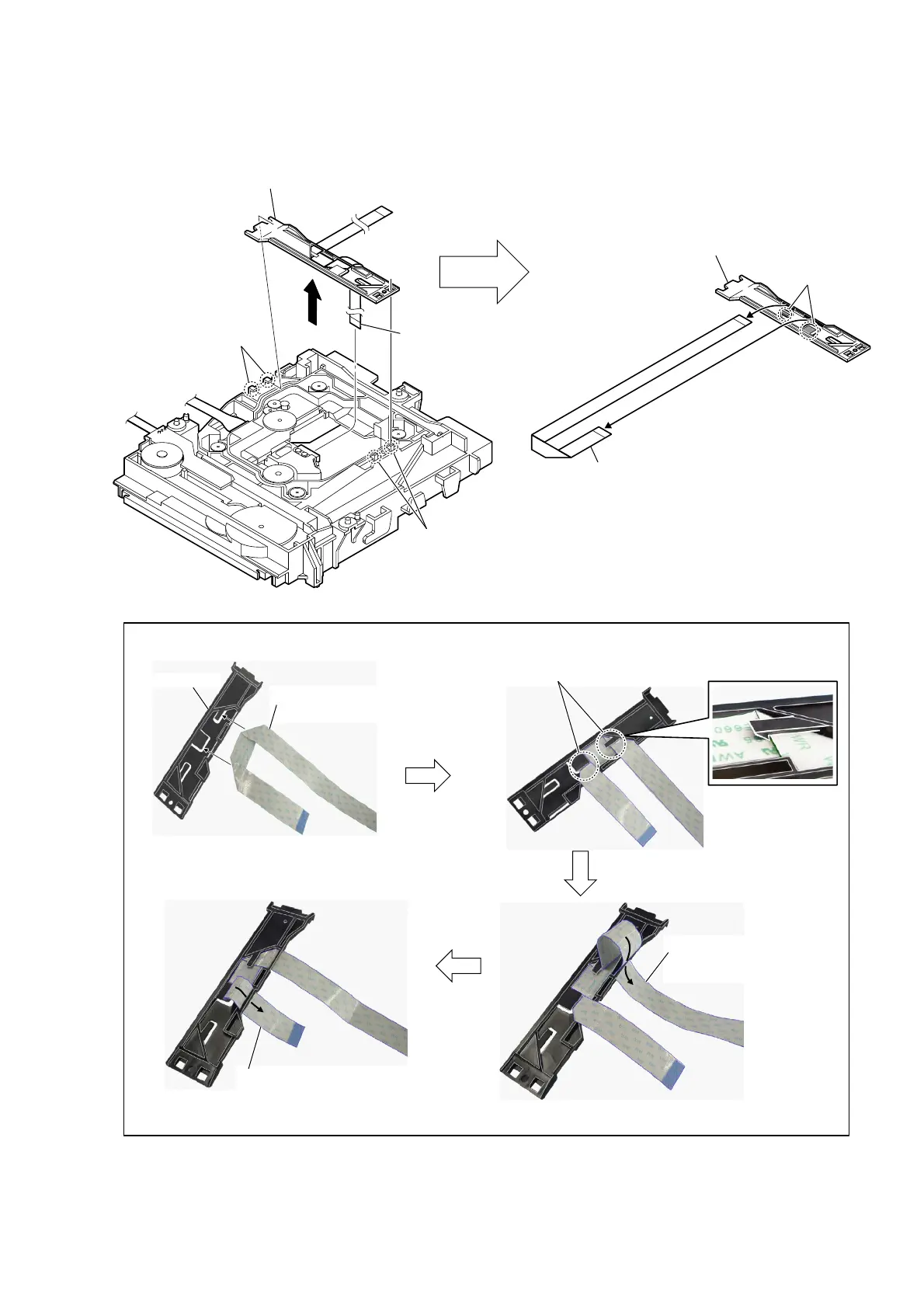

2-11. FFC HOLDER
1 two claws
2
1 two claws
1 Insert the wire (flat type) (24 core)
to the FFC holder.
FFC holder
2 Hang the wire (flat type) (24 core)
on two claws of the FFC holder.
5 two claws
3 wire (flat type) (24 core)
6 wire (flat type) (24 core)
4 FFC holder block
– DVD mechanism deck bottom view –
+ow to instaOO wiUe IOat t\Se coUe
7 FFC holder
Note:
Remove the FFC holder from the
original set and install it again.
3 Pass a long side of wire
(flat type) (24 core) through
the hole of the FFC holder.
4 Pass a short side of wire
(flat type) (24 core) through
the hole of the FFC holder.
To Next Page
