57
HBD-TZ215/TZ715

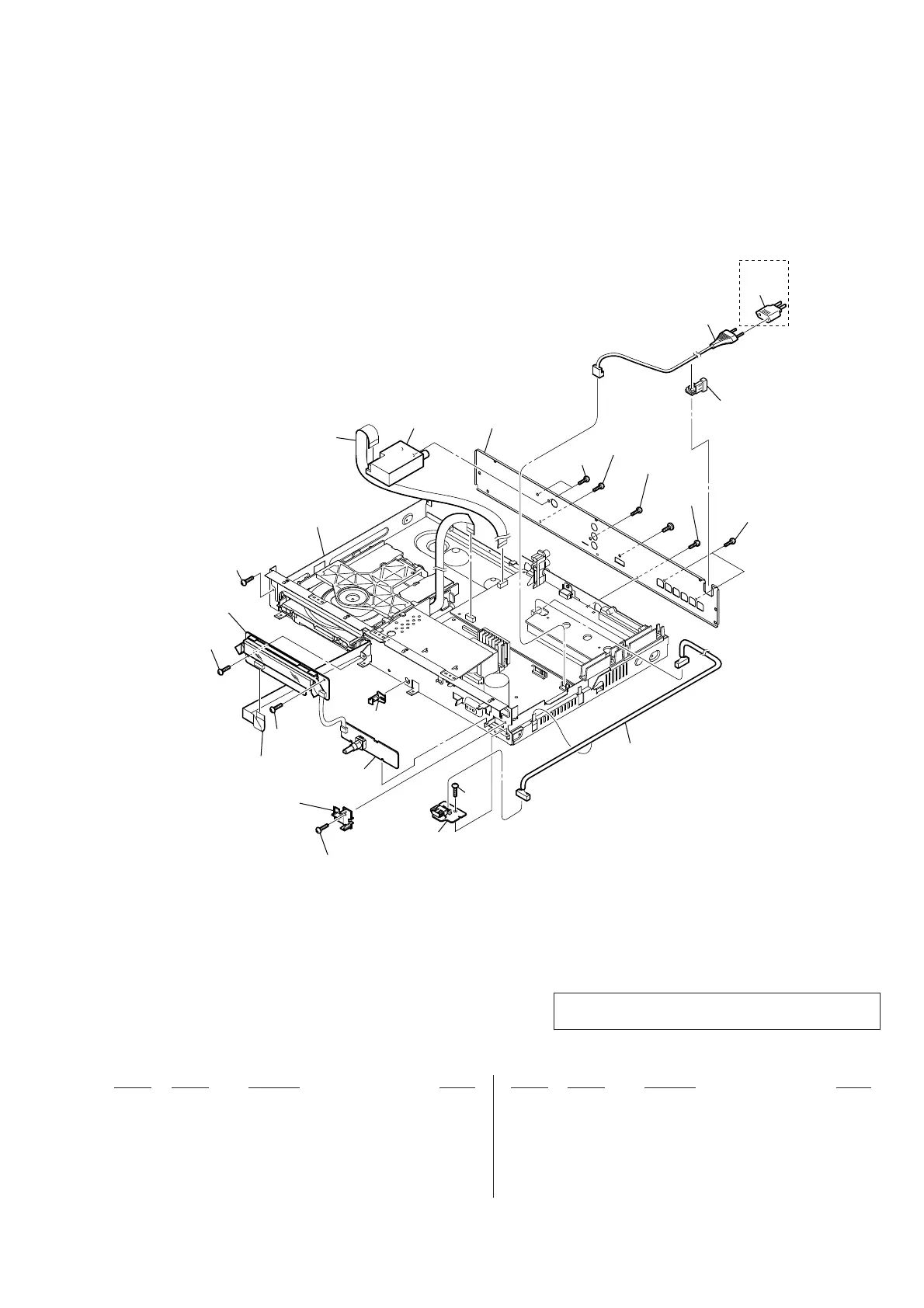

6-3. FRONT BOARDS SECTION
101 3-077-331-21 +BV3 (3-CR)
102 1-832-568-21 WIRE (FLAT TYPE) (11 CORE)
103 A-1843-033-A FL BOARD, COMPLETE
104 1-832-815-21 WIRE (FLAT TYPE) (9 CORE)
105 3-703-244-21 CORD BUSH (2104)
0 106 1-834-966-41 POWER-SUPPLY CORD (E3, E32)
0 106 1-839-012-11 CORD, POWER-SUPPLY (E12)
0 107 1-569-008-33 ADAPTOR, CONVERSION (E32)
108 3-077-331-11 +BV3 (3-CR)
109 A-1843-034-A USB KEY BOARD, COMPLETE
TU401 1-693-780-21 TUNER (FM)
#2 7-682-547-04 SCREW +B 3X6
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
107
105
106
#2
TU401
not supplied
chassis section
not supplied
not supplied
not supplied
(KZ-USB board)
101
101
108
108
108
108
101
101
109
102
103
104
101
not supplied
101
(E32)
Note: If the wire (fl at type) was replaced, refer to “2-15. HOW
TO BEND WIRE (FLAT TYPE)” on the page 17.
To Next Page
