HBD-TZ210/TZ230/TZ510/TZ630/TZ710
12

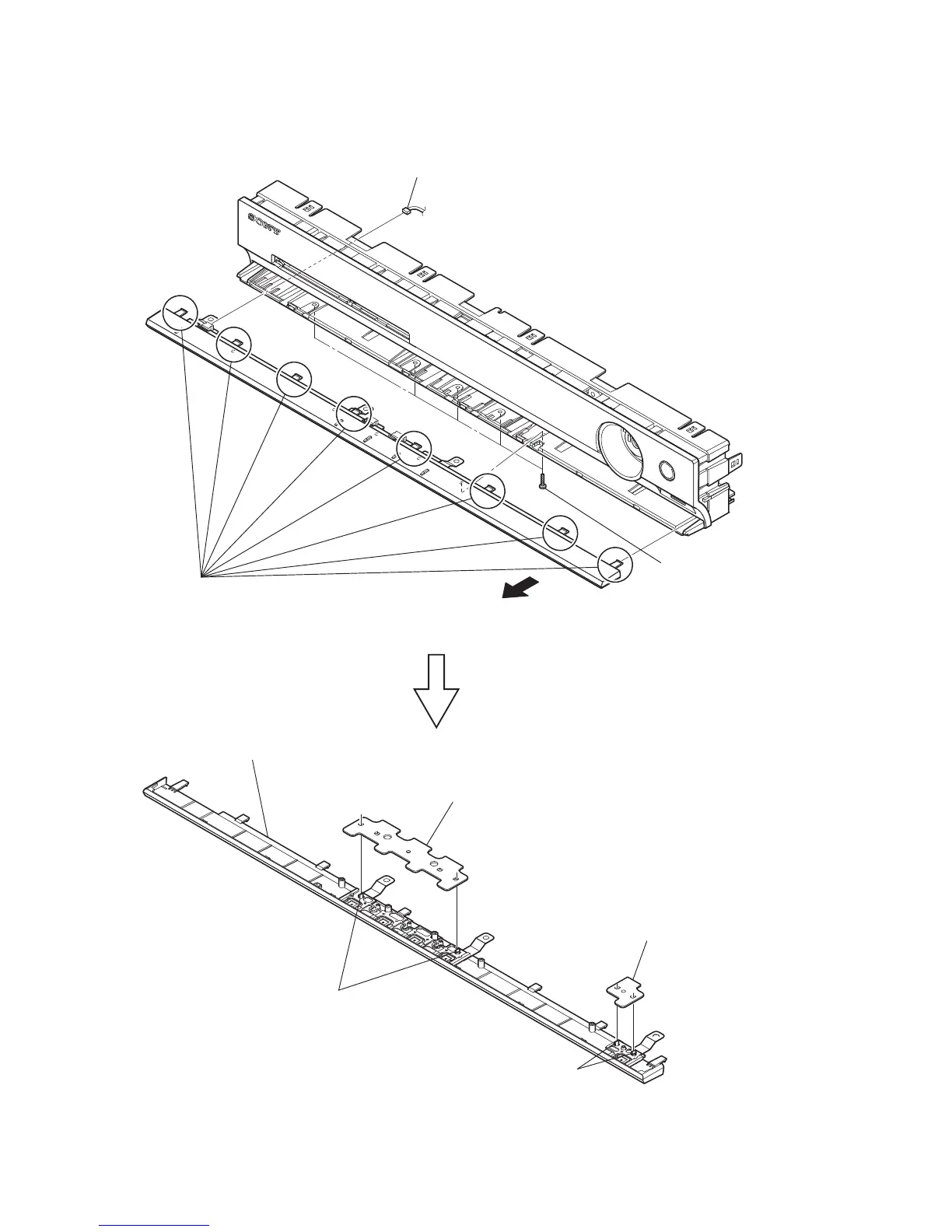

2-5. KEY-SW BOARD, P-SW BOARD
3 eight claws
5 two claws
7 two claws
2 five screws
(+BTP 2 u6)
4
1 CN5301 (2P)
6 P-SW board
8 KEY-SW board
escutcheon (KZ)
