Sony HBD-TZ510 - Exploded Views; Overall Unit Exploded View

61
HBD-TZ210/TZ230/TZ510/TZ630/TZ710
5
2
3
2
2
2
2
2
1
front panel section
not supplied
front boards section
4
not supplied
supplied with
S5113
SECTION 6
EXPLODED VIEWS
1 4-161-839-11 CASE (KZ)
2 3-077-331-21 +BV3 (3-CR)
3 4-161-832-01 KNOB, VOL (KZ)
4 4-159-492-01 PANEL, LOADING
5 4-159-493-02 BASE, LOADING
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• Items marked “
* ” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Accessories are given in the last of the
electrical parts list.
• Abbreviation
AR : Argentina model
AUS : Australian model
CH : Chinese model
CND : Canadian model
E3 : 240V AC area in E model
E12 : 220 – 240V AC area in E model
E32 : 110 – 240V AC area in E model
EA : Saudi Arabia model
HK : Hong Kong model
MX : Mexican model
PH : Philippines model
RU : Russian model
SAF : South African model
SP : Singapore model
TH : Thai model
TW : Taiwan model

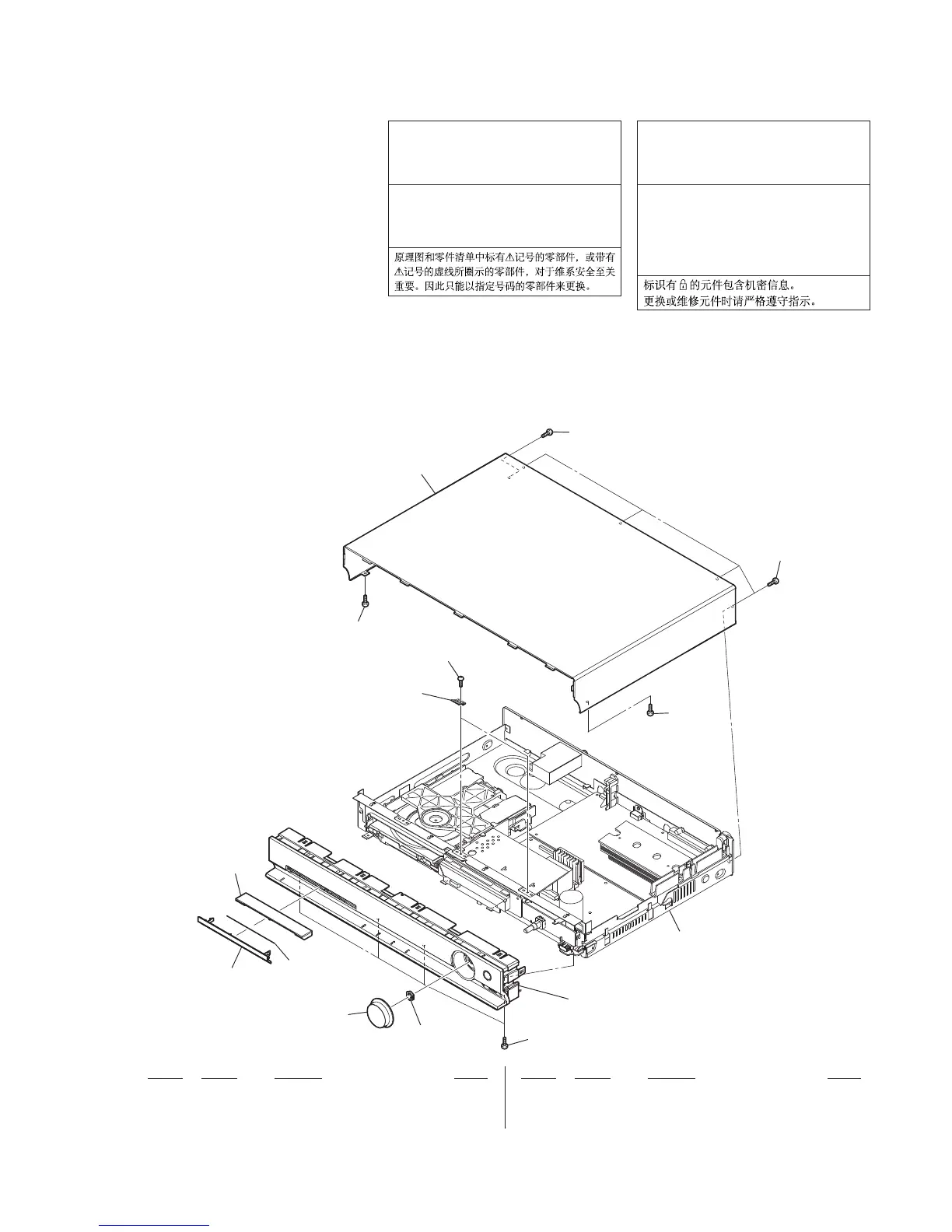

6-1. OVERALL SECTION
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
Les composants identifi és par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce por-
tant le numéro spécifi é.
The components identifi ed by mark 9 con-
tain confi dential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
Les composants identifi és par la marque
9 contiennent des informations confi den-
tielles.
Suivre scrupuleusement les instructions
chaque fois qu’un composant est remplacé
et / ou réparé.
Ver. 1.1
