— 89 —
SECTION 6
EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may have
some difference from the original one.
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Hardware (# mark) list and accessories and pack-
ing materials are given in the last of this parts list.
• For detailed German, East European and CIS model
refer to AEP mode.
• Abbreviation
CND : Canadian model
MX : Mexican model
SP : Singapore model
MY : Malaysia model
AUS : Australian model

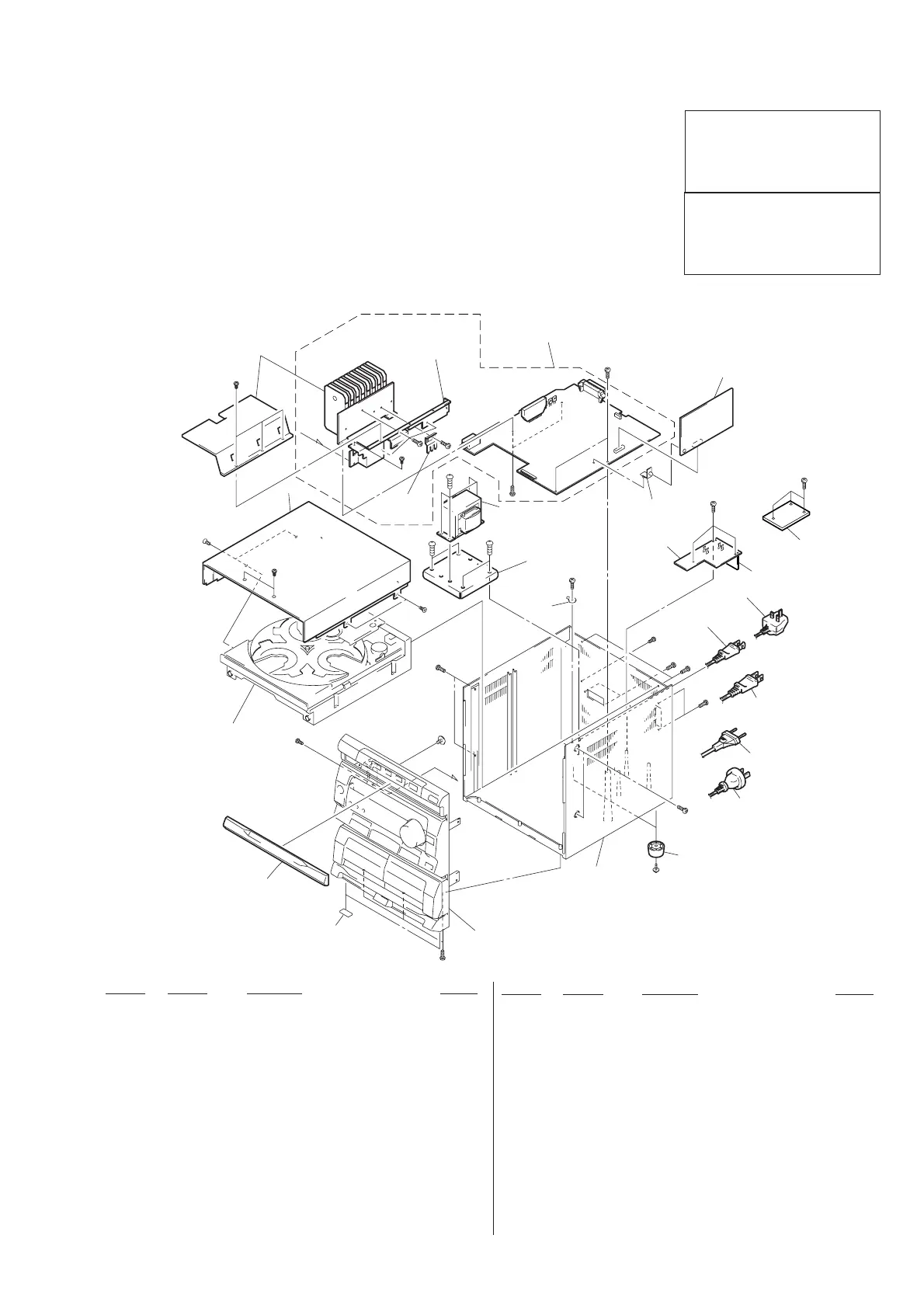

6-1. TOP AND BOTTOM CABINET SECTION
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque ! sont critiques pour la
sécurité.
Ne les remplacer que par une
piéce portant le numéro spécifié.
not supplied
#14
not supplied
#8
#18
#18
8
#1
6
not supplied
#18
PT302
#2
#2
10
#1
5
#3
#8
#1
#13
#1
#1
#1
9
(AUS)
9
(AEP, SP, MY)
#1
7
not supplied
#1
CD mechanism deck
#4
4
(EXCEPT
AEP, UK)
not
supplied
#4
#1
9
(E, MX)
9
(US, CND)
#1
#1
9
(UK)
4
(AEP, UK)
11
(AEP, SP, MY)
1
2
Front panel
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
* 8 A-4403-328-A MAIN BOARD, COMPLETE (AUS)
! 9 1-551-506-XX CORD, POWER (E,MX)
! 9 1-556-035-00 CORD, POWER (UK)
! 9 1-559-583-11 CORD, POWER (US,CND)
! 9 1-765-558-11 CORD, POWER (AEP,SP,MY)
! 9 1-696-966-11 CORD, POWER (AUS)
10 4-993-286-01 BRACKET, TRANSFORMER (EXCEPT AEP,UK)
* 11 1-666-452-11 VOLT SELECT BOARD (E,SP,MY)
! PT302 1-431-440-11 TRANSFORMER, POWER (US,CND)
! PT302 1-431-461-11 TRANSFORMER, POWER (E,SP,MY,MX)
! PT302 1-431-462-11 TRANSFORMER, POWER (AEP,UK)
! PT302 1-431-489-11 TRANSFORMER, POWER (AUS)
1 4-992-791-01 DOOR, CD
2 4-992-802-01 RUBBER, FOOT
* 3 4-992-798-01 CABINET, TOP
* 4 1-666-445-11 AC SUPPLY BOARD (EXCEPT AEP,UK)
* 4 1-667-267-11 AC SUPPLY BOARD (AEP,UK)
* 5 4-992-800-01 WASHER, AC CORD
* 6 A-4398-942-A TUNER BOARD, COMPLETE
(US,CND,E,AUS,SP,MY,MX)
* 6 A-4403-154-A TUNER BOARD, COMPLETE (AEP,UK)
7 4-992-801-01 FOOT (B)
* 8 A-4403-184-A MAIN BOARD, COMPLETE (US,CND,MX)
* 8 A-4403-198-A MAIN BOARD, COMPLETE (AEP,UK)
* 8 A-4403-200-A MAIN BOARD, COMPLETE (E,SP,MY)
#10
#1
3
To Next Page
