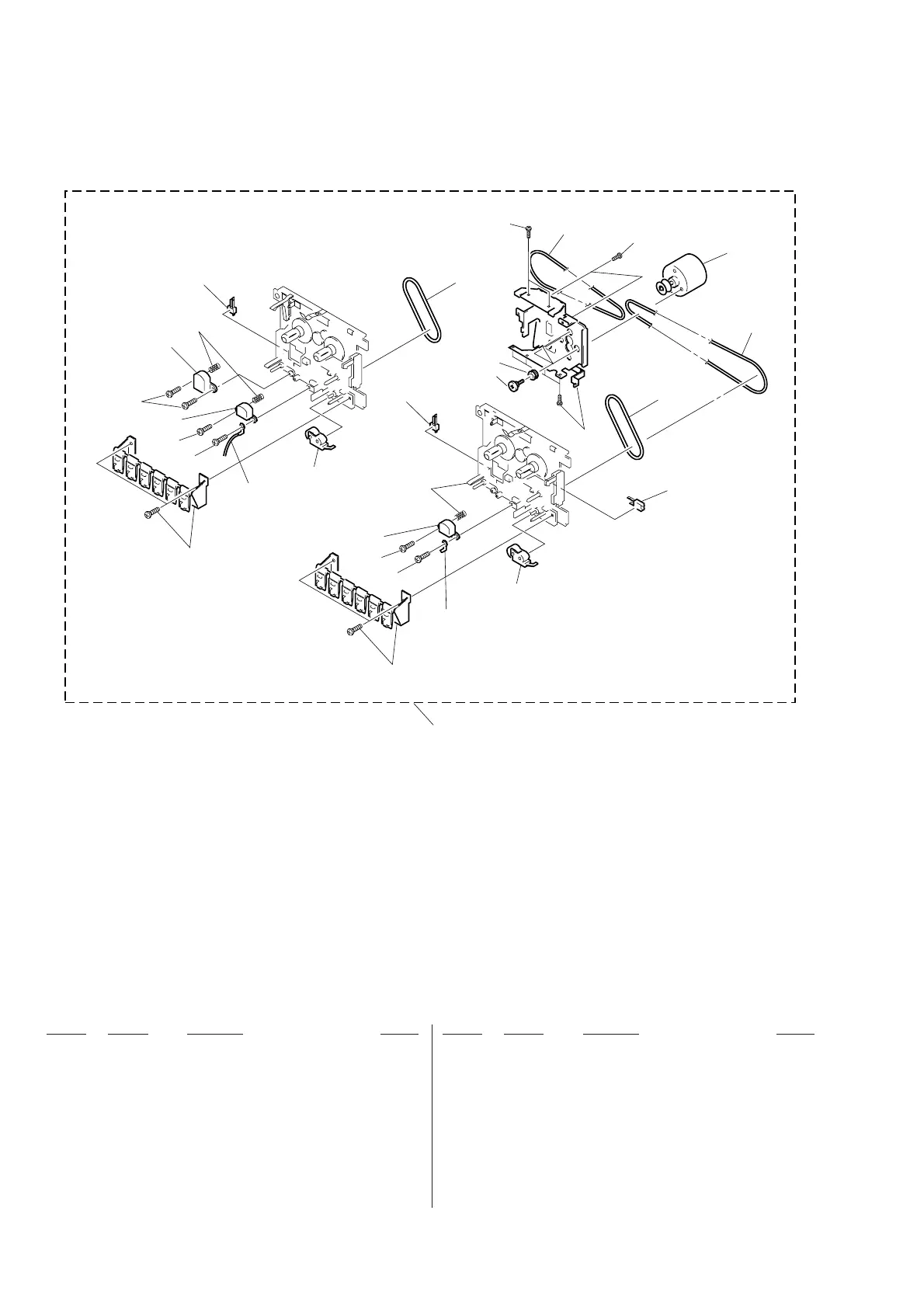

6-4. CASSETTE MECHANISM DECK SECTION 2
161
SW202
not supplied
M901
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
HE9019-980-284-01E HEAD (ERASE)
HP9019-980-282-01P HEAD (PLAY)
HRP9019-980-283-01RP HEAD (REC/PLAY)
M901 9-980-285-01 MOTOR (CAPSTAN/REEL)
SW202 9-980-274-01 LEAF SWITCH (A DECK)
SW203 9-980-274-01 LEAF SWITCH (B DECK)
SW204 9-980-275-01 LEAF SWITCH (PLAY)
1519-980-286-01CAP SCREW 2X7.5
1529-980-288-01A SCREW 2X7 (AZIMUTH)
1539-980-287-01B SCREW 2X3
1549-980-276-01PINCH ROLLER ARM ASSY
1579-980-279-01SCREW M COLLAR
1589-980-278-01MOTOR RUBBER
1609-980-277-01BELT (W) F
1619-980-281-01BELT M
* 163 1-759-417-11 DECK, MECHANICAL
151
152
153
154
152
153
154
163
HE901
not supplied
not supplied
not supplied
SW204
HRP901
SW203
not
supplied
160
not supplied
not supplied
not supplied
HP901
158
157
not supplied
160
161
