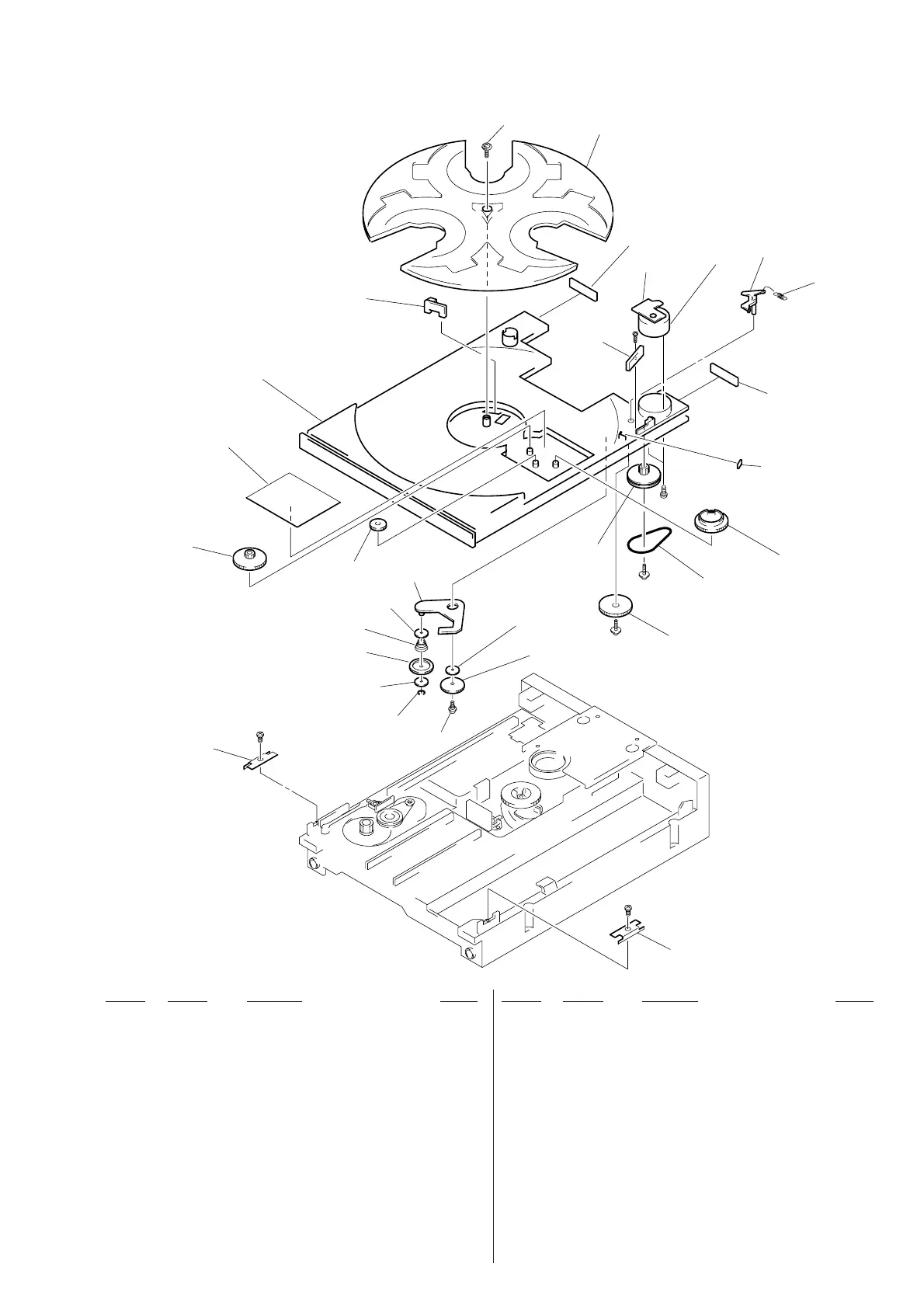

6-5. CD MECHANISM DECK SECTION 1
209
211
218
208
207
#7
#7
#7
221
222
#9
225
223
203
212
206
205
224
212
201
M103
204
#5
215
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
215 4-992-183-01 SCREW, RELAY GEAR (B)
216 4-992-174-01 GEAR, CHANGE
217 4-992-184-01 WASHER, CHANGE GEAR
218 4-992-176-01 SPRING, CHANGE GEAR
219 4-992-185-01 WASHER, CHANGE PLATE
220 4-992-172-01 GEAR (A), RELAY
* 221 4-993-032-01 PLATE, CHANGE
222 4-993-033-01 WASHER, POLY ETHYLENE
* 223 1-666-448-11 SW (B) BOARD
* 224 1-666-447-11 SW (A) BOARD
* 225 4-993-034-01 GUIDE, RAIL
226 4-993-140-01 TURN TABLE
M103 X-4948-765-1 MOTOR ASSY (TURN TABLE)
* 201 1-666-451-11 MOTOR BOARD
202 3-669-480-11 + PTPWH 2
203 4-992-168-01 TRAY, CHANGER BASE
204 4-992-180-01 PLATE, BLIND
205 4-992-181-01 LEVER, SENSOR (SW)
206 4-992-182-01 SPRING, SENSOR (SW) LEVER
207 4-992-170-01 BELT, LOADING
208 4-992-171-01 PULLEY, GEAR
209 4-992-179-01 GEAR, TR
210 4-992-177-01 GEAR, TR LOCK
211 4-992-178-01 GEAR (C), RELAY
212 4-992-187-01 CUSHION
213 4-992-186-01 CUSHION, SW LEVER
214 4-992-173-01 GEAR (B), RELAY
202
226
225
214
219
220
210
213
217
216
#7
#16
