— 90 —

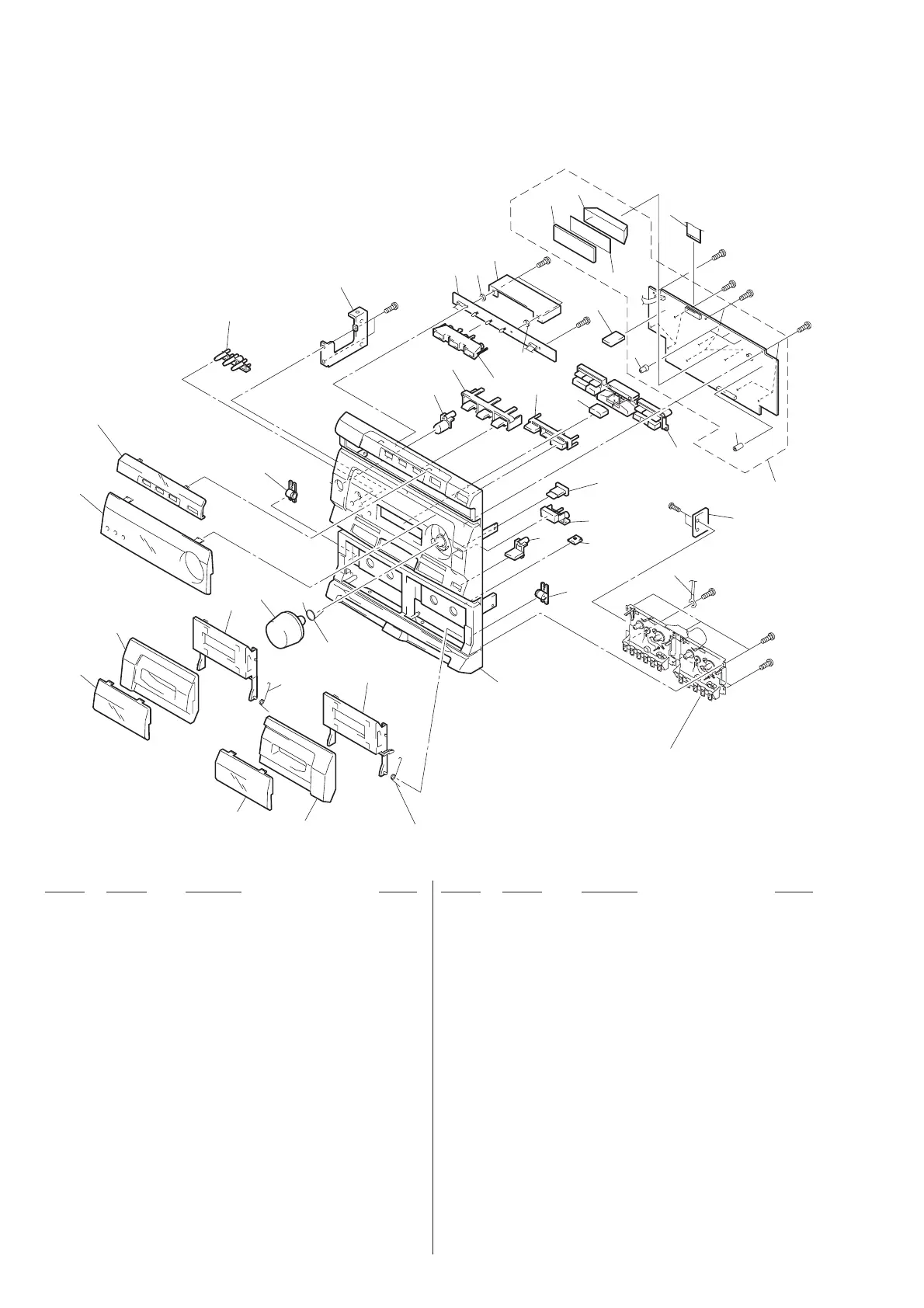

6-2. FRONT PANEL SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
* 71 4-992-818-01 LENS, LED
72 4-992-814-01 BUTTON, BASS BOOST
73 4-992-816-01 BUTTON, PRESET (EQ)
74 4-992-819-01 NUT, PC BOARD FIXED
* 75 1-666-444-11 R/P SWITCH BOARD
* 76 1-666-763-11 DISC LED BOARD
* 77 A-4403-183-A PANEL BOARD, COMPLETE (US,CND)
* 77 A-4403-197-A PANEL BOARD, COMPLETE (AEP,UK,AUS)
* 77 A-4403-199-A PANEL BOARD, COMPLETE (E,SP,MY,MX)
78 1-773-152-11 WIRE (FLAT TYPE) (21 CORE)
* 80 4-992-824-01 BRACKET, TOP CABINET
* 81 1-666-764-11 SENSOR BOARD
82 4-992-826-01 PLATE, DISPLAY
83 4-992-827-01 HOLDER, DISPLAY
* 84 4-992-828-01 HOLDER (LED3-10), LED
* 85 4-980-832-01 COVER, LED
86 4-992-825-01 WASHER, FIBER
LCD601 1-801-855-11 DISPLAY PANEL, LIQUID CRYSTAL
51 4-992-794-01 WINDOW (L), CASSETTE
52 4-992-792-01 DOOR (L), CASSETTE
53 4-992-808-01 HOLDER (L), DOOR
54 4-992-795-01 WINDOW (R), CASSETTE
55 4-992-793-01 DOOR (R), CASSETTE
56 4-992-809-01 HOLDER (R), DOOR
57 4-992-821-01 SPRING, DOOR
58 4-992-815-01 KNOB, VOLUME
59 4-992-822-01 SPRING, VOLUME
60 4-993-282-01 WINDOW, TUNING
61 4-992-796-01 WINDOW, TOP
62 4-992-131-01 DAMPER (GRY), GEAR
63 4-992-807-01 PANEL, FRONT
64 4-993-057-01 HOLDER, LED
65 4-992-813-01 BUTTON, CLOCK
66 4-992-812-01 BUTTON, POWER
67 4-993-287-01 KNOB, DISC
68 4-992-810-01 BUTTON, DISC SKIP
69 4-992-811-01 BUTTON, TAPE
70 4-992-149-01 KNOB, FUNCTION
not supplied
Casssette mechanism deck
#1
#1
#1
#1
#1
#5
#1
#1
#1
#1
LCD601
78
77
75
85
84
70
83
69
68
81
82
80
86
76
86
64
71
67
66
65
72
74
73
62
62
61
60
52
51
53
58
59
56
54
55
57
63
57
not supplied
#1
