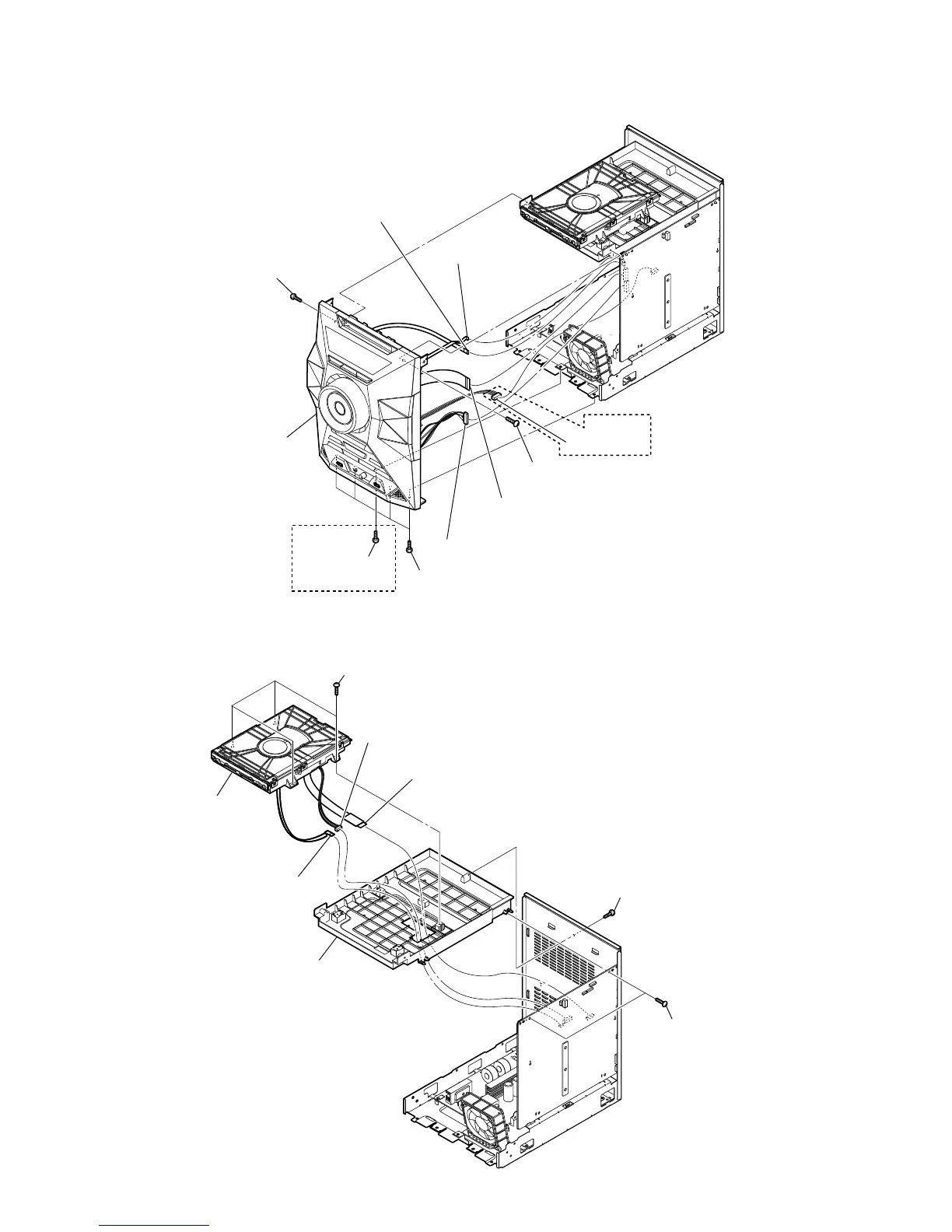

2-5. CD MECHANISM SECTION (CDM90-DVBU202//M)
2-4. FRONT PANEL SECTION
1 four screws
(+BVTP 3 u 8)
4 one screw
(+BVTP 3 u 8)
3 one screw
(+BVTP 3 u 8)
2 one screw
(+BVTP 3 u 8)
(GPX88)
(GPX88)
5 wire (flat type)
(8 core) (CN1507)
7 wire (flat type)
(19 core) (CN1508)
8 CN150 (4P)
9 CN1509 (10P)
0 front panel section
6 flexible flat cable
(14 core) (CN180)
1 two screws
(+BVTP 3 u 8)
7 four screws
(+BVTP 3 u 8)
2 one screw
(+BVTP 3 u 8)
3 flexible flat cable
(24 core) (CN801)
5 wire (flat type)
(5 core) (CN681)
6 bracket, CDM90
8 CD mechanism section
(CDM90-DVBU202//M)
4 CN831 (6P)
