HCD-GPX33/GPX55/GPX77/GPX88
12

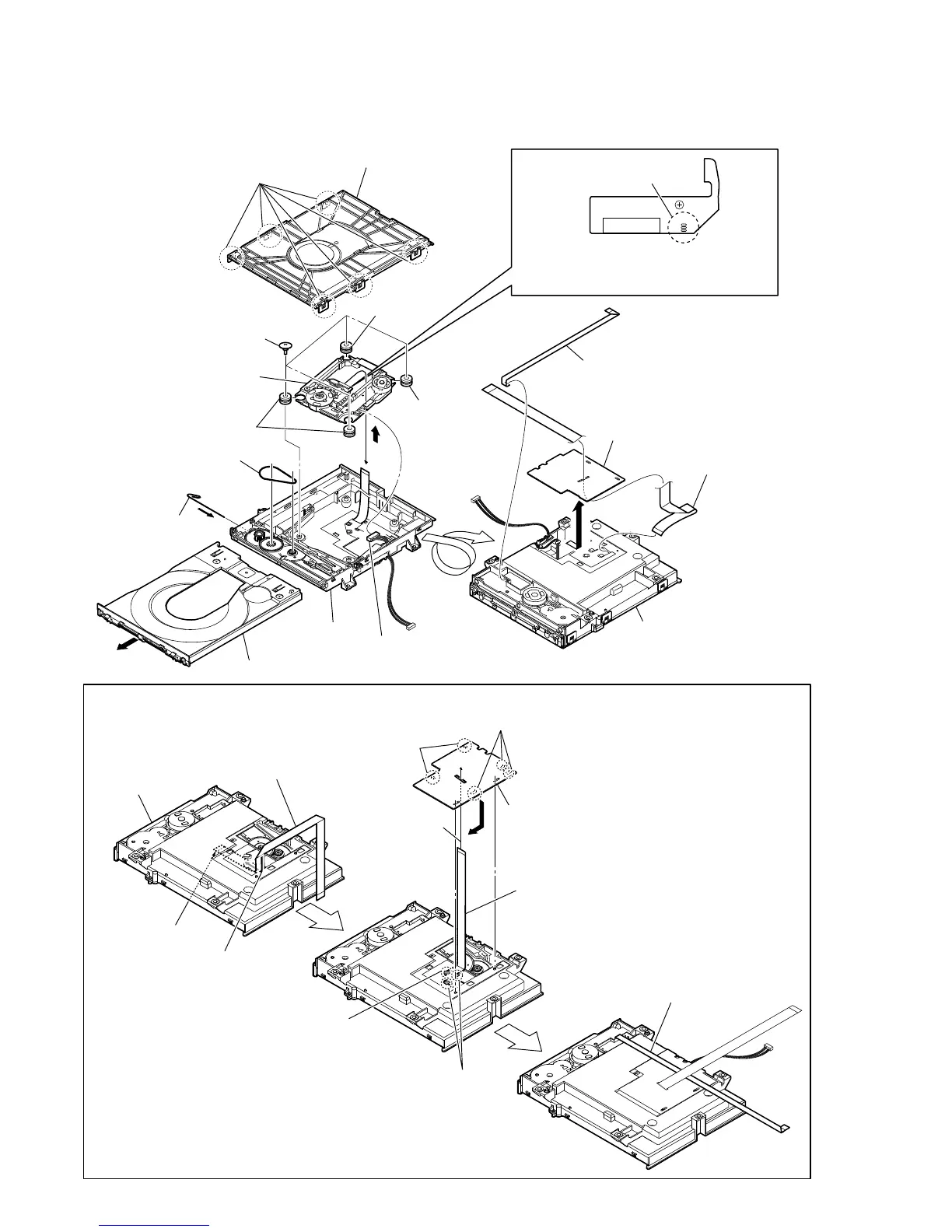

2-8. SERVICE OPTICAL DEVICE, WIRE (FLAT TYPE)
Note 1 : Before disconnecting the fl exible fl at cable (24 core) of optical pick-up block, solder the short-land.
8 four insulator screws
7 connector
qa insulator
6 belt
3 Insert the thin
wire (clip etc.).
5 tray
qs service,
optical device
qa insulator
qa insulator
qg
qj flexible flat cable
(24 core)
1 six claws
4
9
0
2 chuck holder assy (T)
2 Solder the short-land.
qf wire (flat type)
(5 core)
– Bottom view –
loading assy (T)
qd base, lo assy
qh holder, FFC
Note 2: When assembling the optical pick-up block,
remove the solder of short-land after
connecting the flexible flat cable (24 core).
Under the guide
Under the guide
(Fold area)
‡,QVWDOODWLRQRIIOH[LEOHIODWFDEOHFRUHDQGZLUHIODWW\SHFRUH
Note:
This illustration sees the loading assy (T) from bottom side.
1 flexible flat cable (24 core)
2 Through the hole
3 Through the hole
4
terminal face
loading assy (T)
7 wire (flat type) (24 core)
6 holder, FFC
5 three claws
5 two claws
8 wire (flat type)
(5 core)
To Next Page
